NOSHOK

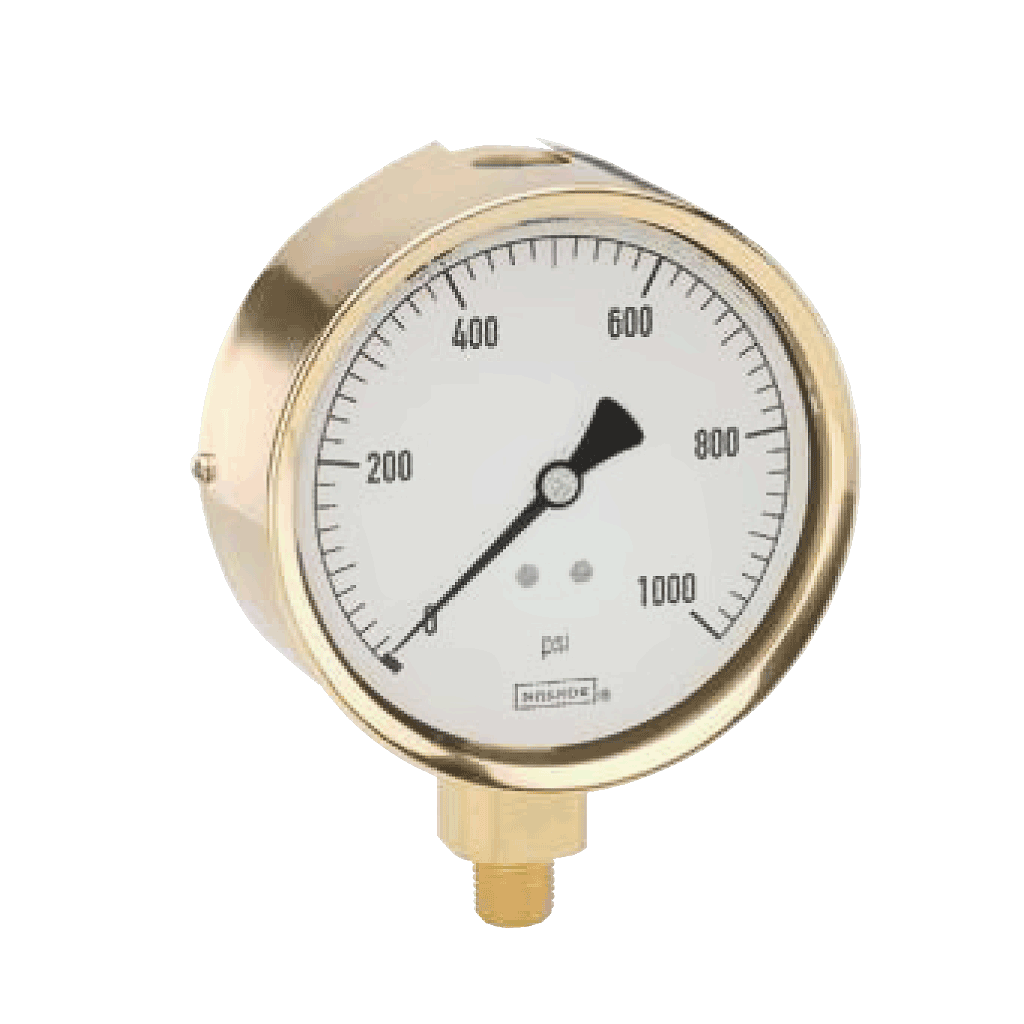

300 Series Brass Case Liquid Filled Pressure Gauges

NOSHOK 300 Series gauges set the standard for durability and precision in liquid-filled pressure measurement. Engineered with a one-piece die-cast case and high-strength bourdon tubes, these gauges minimize vibration, pulsation, and shock for reliable readings in harsh conditions. Featuring crystal-clear synthetic glycerine, UV-resistant dials, and a sealed plexiglass lens, they deliver long-term clarity and performance. Ideal for non-corrosive applications, they’re available in a wide range of PSI/bar ratings, mounting styles, and connection options.

Part Number
Pressure Range
OKCancelClear All
Dial Size
Case Material
Mount
Connection
Type
Accuracy
Scale
25-310-30IN/HG/VAC
0–30" Hg Vac
2½″
Stainless Steel
Back
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-310-15
0–15 PSI
2½″
Stainless Steel
Back
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-310-30
0–30 PSI
2½″
Stainless Steel
Back
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-310-60
0–60 PSI
2½″
Stainless Steel
Back
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-310-100
0–100 PSI
2½″
Stainless Steel
Back
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-310-160
0–160 PSI
2½″
Stainless Steel
Back
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-310-200
0–200 PSI
2½″
Stainless Steel
Back
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-310-300
0–300 PSI
2½″
Stainless Steel
Back
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-310-400
0–400 PSI
2½″
Stainless Steel
Back
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-310-600
0–600 PSI
2½″
Stainless Steel
Back
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-310-1000
0–1,000 PSI
2½″
Stainless Steel
Back
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
Part Number
Pressure Range
OKCancelClear All
Dial Size
Case Material
Mount
Connection
Type
Accuracy
Scale
25-300-15IN/HG/VAC
0–15" Hg Vac
2½″
Stainless Steel
Bottom
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-300-30IN/HG/VAC
0–30" Hg Vac
2½″
Stainless Steel
Bottom
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-300-15
0–15 PSI
2½″
Stainless Steel
Bottom
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-300-30
0–30 PSI
2½″
Stainless Steel
Bottom
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-300-60
0–60 PSI
2½″
Stainless Steel
Bottom
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-300-100
0–100 PSI
2½″
Stainless Steel
Bottom
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-300-160
0–160 PSI
2½″
Stainless Steel
Bottom
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-300-200
0–200 PSI
2½″
Stainless Steel
Bottom
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-300-300
0–300 PSI
2½″
Stainless Steel
Bottom
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-300-400
0–400 PSI
2½″
Stainless Steel
Bottom
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-300-600
0–600 PSI
2½″
Stainless Steel
Bottom
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-300-1000
0–1,000 PSI
2½″
Stainless Steel
Bottom
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
Part Number
Pressure Range
OKCancelClear All
Dial Size
Case Material
Mount
Connection
Type
Accuracy
Scale
25-320-30IN/HG/VAC
0–30" Hg Vac
2½″
Stainless Steel
Panel
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-320-15
0–15 PSI
2½″
Stainless Steel
Panel
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-320-30
0–30 PSI
2½″
Stainless Steel
Panel
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-320-60
0–60 PSI
2½″
Stainless Steel
Panel
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-320-100
0–100 PSI
2½″
Stainless Steel
Panel
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-320-160
0–160 PSI
2½″
Stainless Steel
Panel
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-320-200
0–200 PSI
2½″
Stainless Steel
Panel
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-320-300
0–300 PSI
2½″
Stainless Steel
Panel
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-320-400
0–400 PSI
2½″
Stainless Steel
Panel
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-320-600
0–600 PSI
2½″
Stainless Steel
Panel
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
25-320-1000
0–1,000 PSI
2½″
Stainless Steel
Panel
¼″ NPT
Dry Pressure Gauge
±1.5% Full Scale
Dual Scale PSI/in. Hg
