Danfoss (Weatherhead)

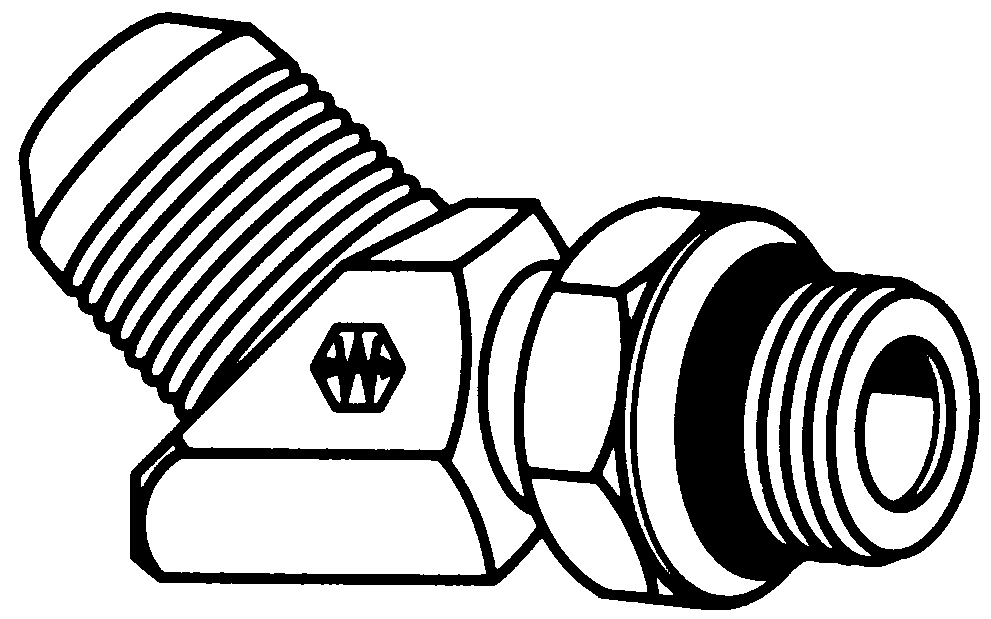

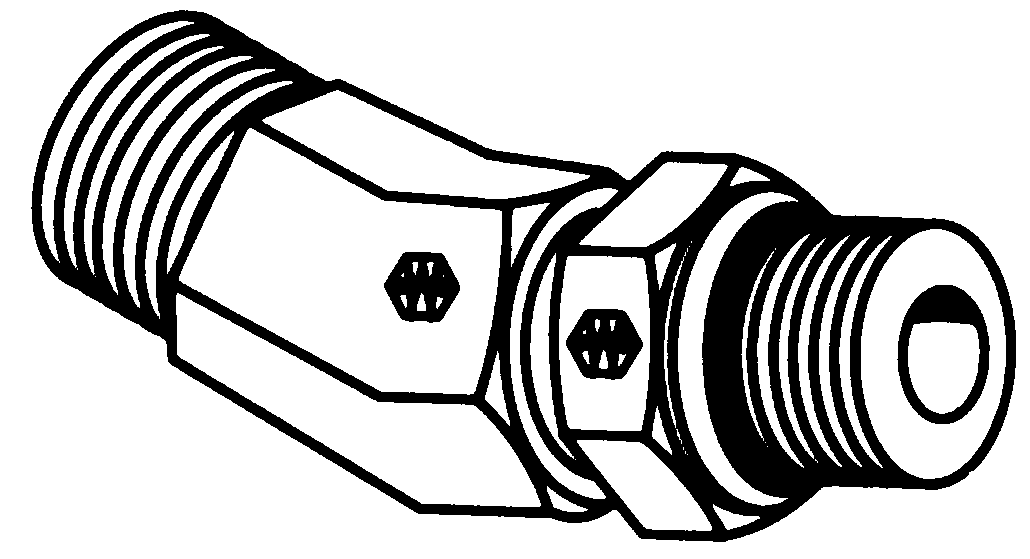

45° Elbow Straight Thread O-Ring To Male JIC - Steel

Typical Application: Pressure hydraulic systems

Sealing Method: Performed by an elastomeric O-ring


Part Number
TUBE O.D.
OKCancelClear All
PORT SIZE
OKCancelClear All

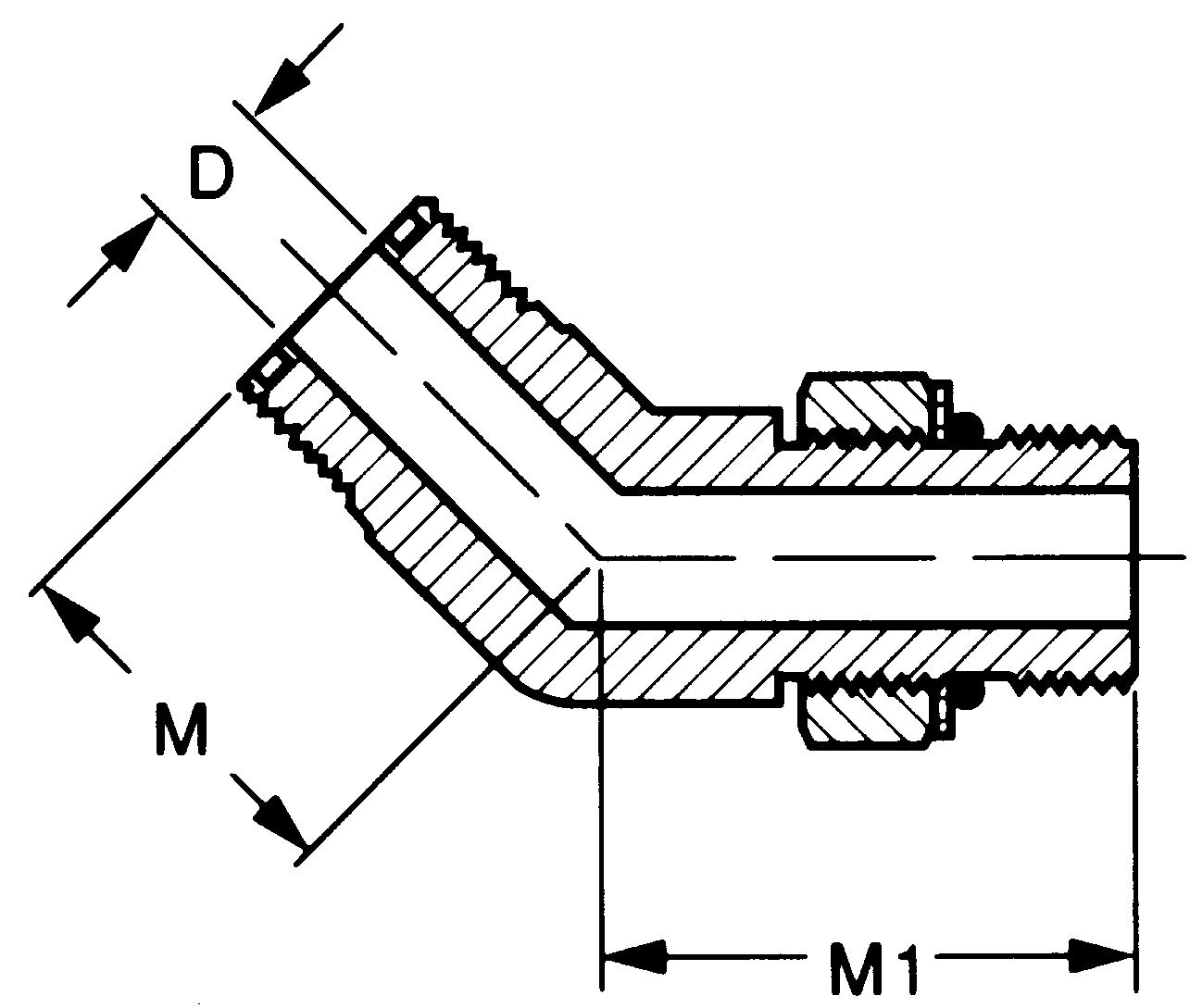

D1
OKCancelClear All
M
OKCancelClear All
N
OKCancelClear All
C5365X4
1/4
1/4
.172
.72
1.05
C5365X6
3/8
3/8
.297
.83
1.14
C5365X8
1/2
1/2
.391
.98
1.30
C5365X8X10
1/2
5/8
.391
.98
1.30
C5365X10
5/8
5/8
.484
1.11
1.52
C5365X12X10
3/4
5/8
.484
1.28
1.57
C5365X12
3/4
3/4
.609
1.28
1.73
C5365X16
1
1
.844
1.47
1.86
C5365X20
1-1/4
1-1/4
1.078
1.59
1.91
TF5365X4
1/4
1/4
.172
.72
1.05
TF5365X5
5/16
5/16
.234
.77
1.05
TF5365X6
3/8
3/8
.297
.83
1.14
TF5365X6X8
3/8
1/2
.391
.87
1.30
TF5365X8X6
1/2
3/8
.297
.98
1.17
TF5365X8
1/2
1/2
.391
.98
1.30
TF5365X8X10
1/2
5/8
.484
.99
1.52
TF5365X10X8
5/8
1/2
.391
1.09
1.41
TF5365X10
5/8
5/8
.484
1.09
1.52
TF5365X10X12
5/8
3/4
.609
1.22
1.73
TF5365X12X10
3/4
5/8
.484
1.30
1.58
TF5365X12
3/4
3/4
.609
1.28
1.73
TF5365X12X16
3/4
1
.844
1.45
1.86
TF5365X14
7/8
7/8
.718
1.39
1.80
TF5365X16X12
1
3/4
.609
1.47
1.86
TF5365X16
1
1
.844
1.47
1.86
TF5365X20
1-1/4
1-1/4
1.078
1.59
1.91
TF5365X24
1-1/2
1-1/2
1.312
1.78
1.91
