Danfoss (Weatherhead)

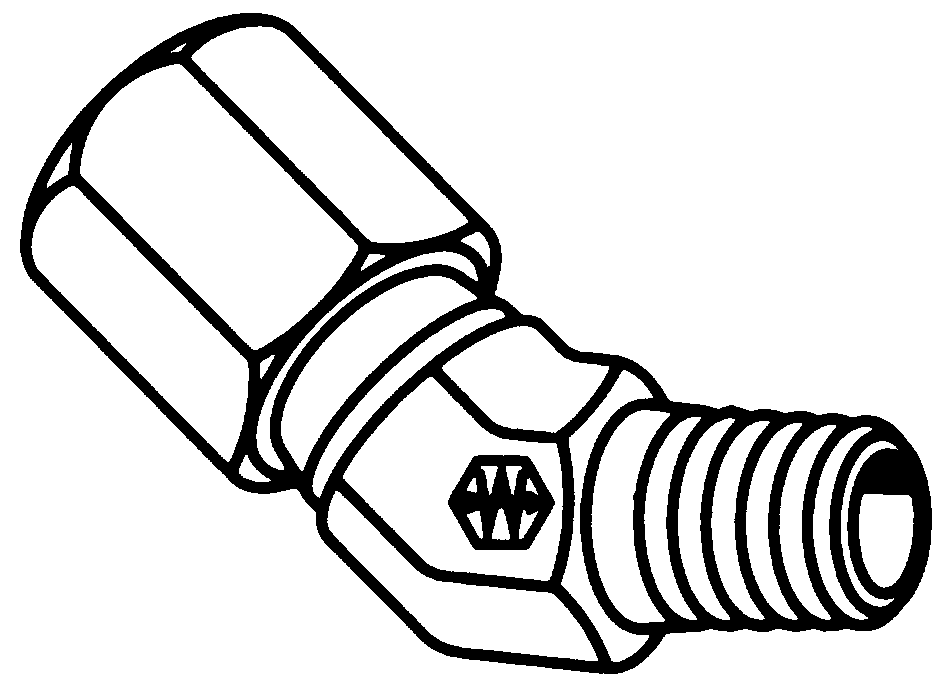

7000 Series Ermeto Steel 45° Male Elbow

Temperature Range: –65°F to +400°F at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size. Stainless steel has been used at +1000°F and 2000 psi.

Material: Carbon Steel – AISI/SAE 12L14 Plating – Weathercote® Stainless Steel – Bodies and nuts: type 316. Sleeves: 17-4PH. Used With: Aluminum, hard or half copper, steel, stainless steel, monel, titanium and extra heavy wall tubing that cannot be flared. Advantages: An excellent high pressure fitting — NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
Conformance: Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Label Set: FS-1600 (adhesive)

Part Number
TUBE O.D.
MALE PIPE THREAD
D
D1
M
N
1/4
1/8
.203
.188
.70
.64
1/4
1/4
.203
.281
.83
.86
5/16
1/8
.234
.188
.75
.64
3/8
1/4
.281
.281
.83
.86
1/2
3/8
.422
.406
.98
.95
5/8
1/2
.500
.531
1.08
1.17
3/4
3/4
.656
.719
1.27
1.20
1
1
.875
.938
1.36
1.48

(Ref. SAE No.080302)
