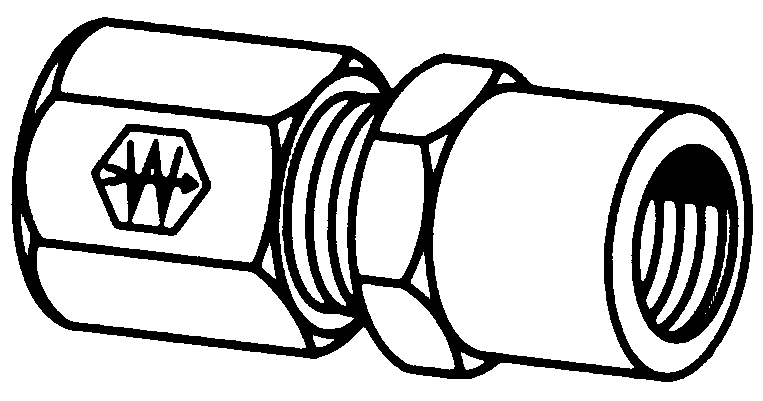

7000 Series Ermeto Steel Female Connector

Temperature Range: –65°F to +400°F at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size. Stainless steel has been used at +1000°F and 2000 psi.

Material: Carbon Steel – AISI/SAE 12L14 Plating – Weathercote® Stainless Steel – Bodies and nuts: type 316. Sleeves: 17-4PH. Used With: Aluminum, hard or half copper, steel, stainless steel, monel, titanium and extra heavy wall tubing that cannot be flared. Advantages: An excellent high pressure fitting — NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
Conformance: Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Label Set: FS-1600 (adhesive)

Part Number
TUBE O.D.
OKCancelClear All
FEMALE PIPE THREAD
OKCancelClear All
HEX C
OKCancelClear All
D
OKCancelClear All
L
OKCancelClear All
7255X2
1/8
1/8
9/16
.093
1.05
7255X3
3/16
1/8
9/16
.125
1.08
7255X4
1/4
1/8
9/16
.203
1.09
7255X4X4
1/4
1/4
3/4
.203
1.20
7255X5
5/16
1/8
9/16
.234
1.08
7255X6
3/8
1/4
3/4
.281
1.31
7255X6X6
3/8
3/8
7/8
.281
1.36
7255X8X4
1/2
1/4
7/8
.422
1.46
7255X8
1/2
3/8
7/8
.422
1.47
7255X8X8
1/2
1/2
1-1/8
.422
1.63
7255X10
5/8
1/2
1-1/8
.500
1.76
7255X12
3/4
3/4
1-3/8
.656
1.89
7255X14
7/8
3/4
1-3/8
.718
1.86
7255X16
1
1
1-5/8
.875
2.13
7255X20
1-1/4
1-1/4
2
1.093
2.22

(Ref. SAE No.080103) (Ref. MS51816)
