Danfoss (Weatherhead)

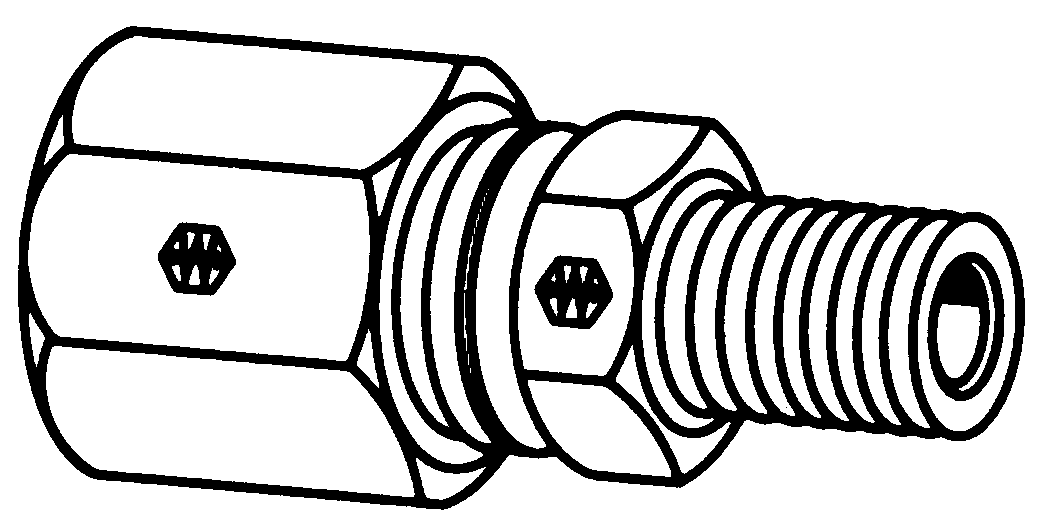

7000 Series Ermeto Steel Male Connector

Temperature Range: –65°F to +400°F at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size. Stainless steel has been used at +1000°F and 2000 psi.

Material: Carbon Steel – AISI/SAE 12L14 Plating – Weathercote® Stainless Steel – Bodies and nuts: type 316. Sleeves: 17-4PH. Used With: Aluminum, hard or half copper, steel, stainless steel, monel, titanium and extra heavy wall tubing that cannot be flared. Advantages: An excellent high pressure fitting — NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
Conformance: Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Label Set: FS-1600 (adhesive)

Part Number
TUBE O.D.
MALE PIPE THREAD
HEX C
D OPT.
L
1/8
1/8
7/16
.188
1.04
1/8
1/4
9/16
.281
1.25
3/16
1/8
7/16
.188
1.09
1/4
1/8
1/2
.188
1.12
1/4
1/4
9/16
.281
1.32
1/4
3/8
3/4
.406
1.33
1/4
1/2
7/8
.531
1.58
5/16
1/8
9/16
.188
1.12
5/16
1/4
9/16
.281
1.32
3/8
1/8
5/8
.188
1.15
3/8
1/4
5/8
.281
1.34
3/8
3/8
3/4
.406
1.35
3/8
1/2
7/8
.531
1.60
1/2
1/4
13/16
.281
1.44
1/2
3/8
13/16
.406
1.44
1/2
1/2
7/8
.531
1.69
1/2
3/4
1-1/8
.719
1.76
5/8
3/8
15/16
.406
1.56
5/8
1/2
15/16
.531
1.75
3/4
1/2
1-1/8
.531
1.88
3/4
3/4
1-1/8
.719
1.88
7/8
3/4
1-1/4
.719
1.88
1
3/4
1-3/8
.719
1.88
1
1
1-3/8
.938
2.07
1-1/4
1-1/4
1-11/16
1.250
2.18
1-1/2
1-1/2
2
1.500
2.28
2
2
2-5/8
1.938
2.46

(Ref. SAE No.080102) (Ref. MS51819)
