Danfoss (Weatherhead)

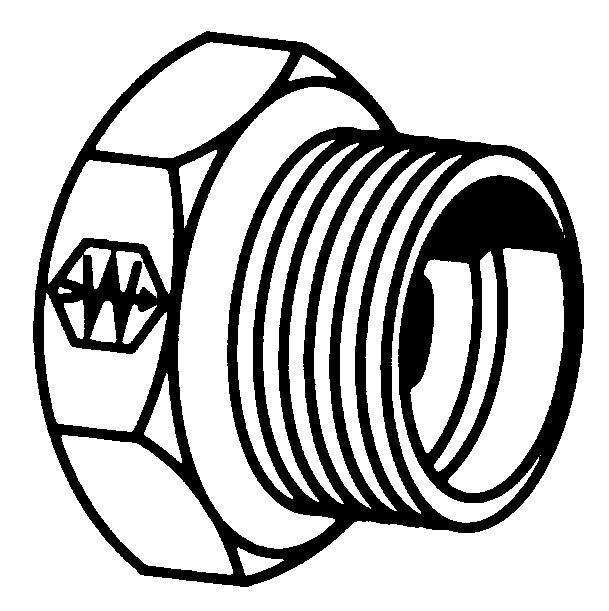

7000 Series Ermeto Steel Plug

Temperature Range: –65°F to +400°F at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size. Stainless steel has been used at +1000°F and 2000 psi.

Material: Carbon Steel – AISI/SAE 12L14 Plating – Weathercote® Stainless Steel – Bodies and nuts: type 316. Sleeves: 17-4PH. Used With: Aluminum, hard or half copper, steel, stainless steel, monel, titanium and extra heavy wall tubing that cannot be flared. Advantages: An excellent high pressure fitting — NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
Conformance: Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Label Set: FS-1600 (adhesive)

Part Number
TUBE O.D.
OKCancelClear All
HEX C
OKCancelClear All
L
OKCancelClear All
7229X2
1/8
7/16
.63
7229X4
1/4
1/2
.71
7229X5
5/16
9/16
.71
7229X6
3/8
5/8
.75
7229X8
1/2
13/16
.85
7229X10
5/8
15/16
.97
7229X12
3/4
1-1/8
1.10
7229X16
1
1-3/8
1.10

(Ref. SAE No.080109) (Ref. MS51891)
