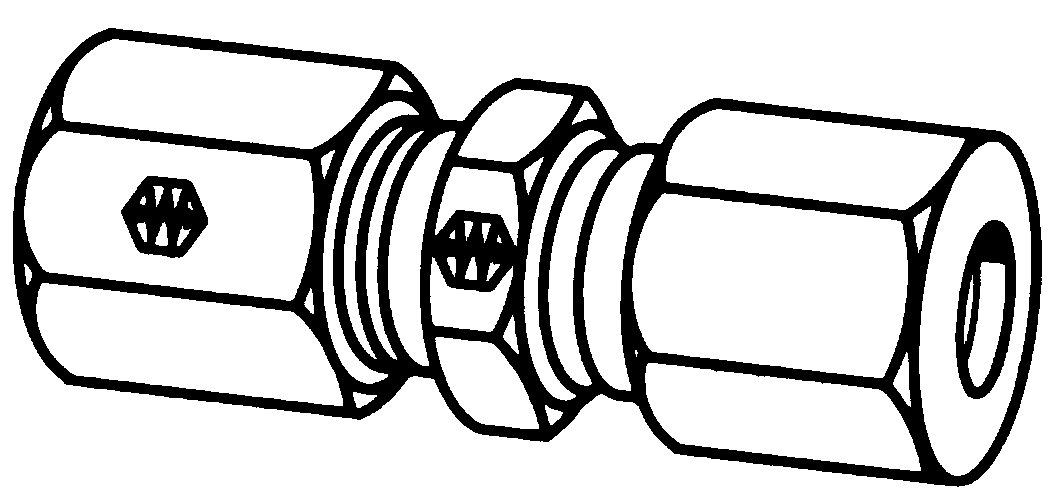

7000 Series Ermeto Steel Small Hex Union

Temperature Range: –65°F to +400°F at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size. Stainless steel has been used at +1000°F and 2000 psi.

Material: Carbon Steel – AISI/SAE 12L14 Plating – Weathercote® Stainless Steel – Bodies and nuts: type 316. Sleeves: 17-4PH. Used With: Aluminum, hard or half copper, steel, stainless steel, monel, titanium and extra heavy wall tubing that cannot be flared. Advantages: An excellent high pressure fitting — NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
Conformance: Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Label Set: FS-1600 (adhesive)

Part Number
TUBE O.D.
TUBE O.D.

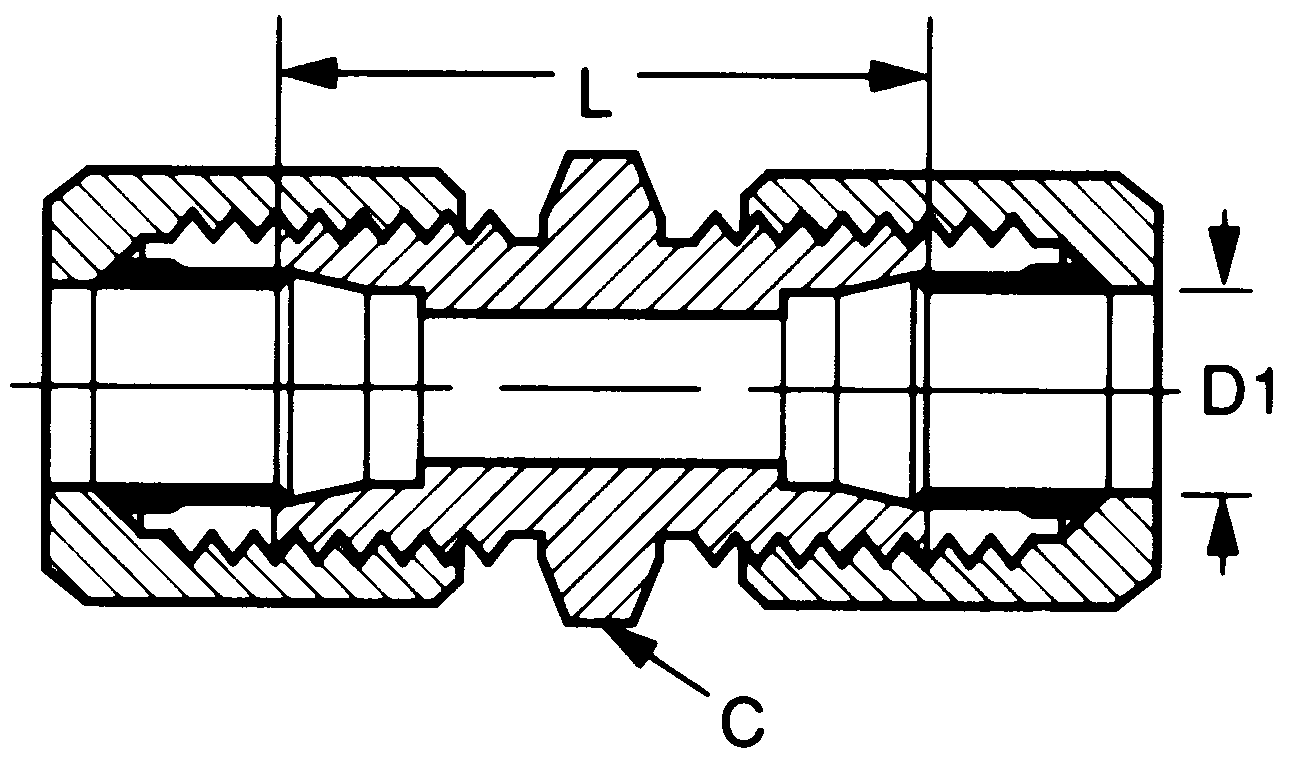

HEX C
D1
L
1/8
1/8
7/16
.093
1.02
3/16
3/16
7/16
.125
1.11
1/4
1/4
1/2
.203
1.18
5/16
5/16
9/16
.234
1.18
3/8
1/4
5/8
.203
1.22
3/8
3/8
5/8
.281
1.24
1/2
3/8
13/16
.281
1.33
1/2
1/2
13/16
.422
1.42
5/8
5/8
15/16
.500
1.61
3/4
3/4
1-1/8
.656
1.81
7/8
7/8
1-1/4
.718
1.81
1
1
1-3/8
.875
1.81
1-1/4
1-1/4
1-11/16
1.093
1.89
1-1/2
1-1/2
2
1.344
1.96
2
2
2-5/8
1.813
2.11

(Ref. SAE No.080101)
