Danfoss (Weatherhead)

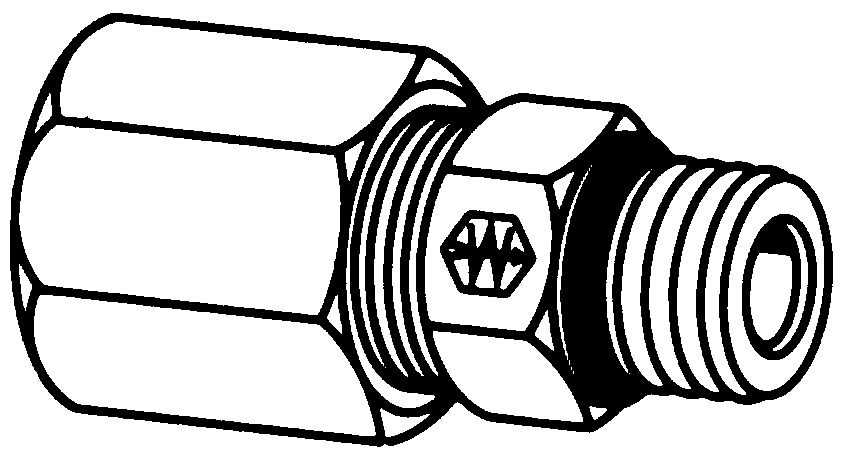

7000 Series Ermeto Steel Straight Thread O-Ring Connector

Temperature Range: –65°F to +400°F at maximum operating pressures. Has been used at 800°F and 1000 psi to 4000 psi depending on tube size. Stainless steel has been used at +1000°F and 2000 psi.

Material: Carbon Steel – AISI/SAE 12L14 Plating – Weathercote® Stainless Steel – Bodies and nuts: type 316. Sleeves: 17-4PH. Used With: Aluminum, hard or half copper, steel, stainless steel, monel, titanium and extra heavy wall tubing that cannot be flared. Advantages: An excellent high pressure fitting — NO TUBE FLARING. Used with extra heavy wall tubing. Broad selection of sizes and styles.
Conformance: Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Label Set: FS-1600 (adhesive)

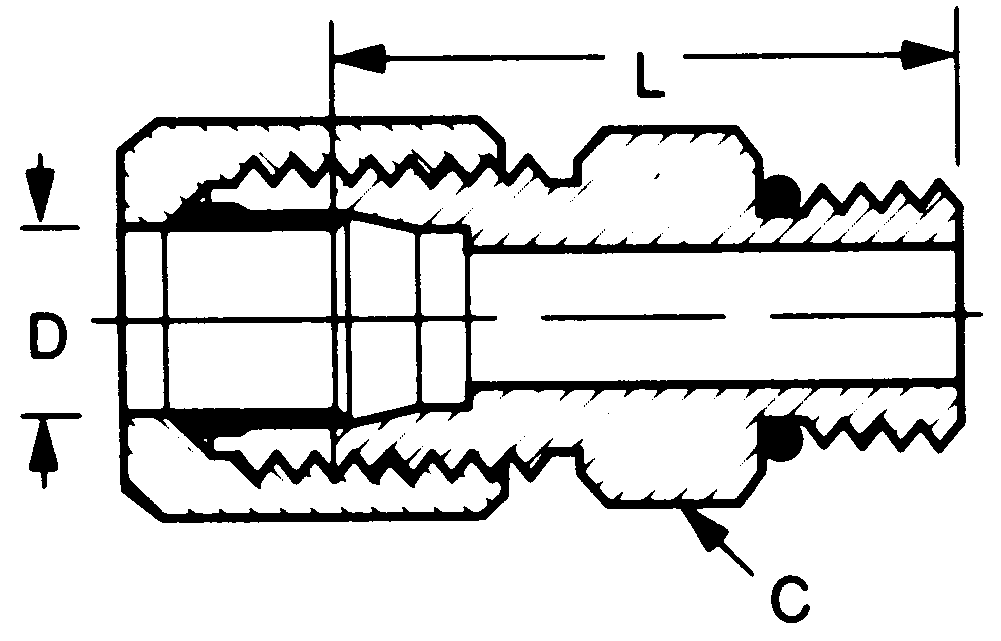

Part Number
TUBE O.D.
OKCancelClear All
PORT SIZE
OKCancelClear All
HEX C
OKCancelClear All
D
OKCancelClear All
L
OKCancelClear All
7315X3
3/16
3/16
1/2
.125
1.04
7315X4
1/4
1/4
9/16
.203
1.13
7315X4X5
1/4
5/16
5/8
.203
1.13
7315X4X6
1/4
3/8
11/16
.203
1.19
7315X5
5/16
5/16
5/8
.234
1.13
7315X6
3/8
3/8
11/16
.281
1.21
7315X6X8
3/8
1/2
7/8
.281
1.29
7315X8
1/2
1/2
7/8
.422
1.38
7315X8X10
1/2
5/8
1
.422
1.51
7315X8X12
1/2
3/4
1-1/4
.422
1.67
7315X10
5/8
5/8
1
.500
1.57
7315X12
3/4
3/4
1-1/4
.656
1.79
7315X12X16
3/4
1
1-1/2
.656
1.82
7315X14
7/8
7/8
1-3/8
.718
1.79
7315X16X12
1
3/4
1-3/8
.875
1.82
7315X16
1
1
1-1/2
.875
1.82
7315X20
1-1/4
1-1/4
1-7/8
1.093
1.90
7315X24
1-1/2
1-1/2
2-1/8
1.344
1.97
7315X32
2
2
2-3/4
1.813
2.13

(Ref. SAE No.080120) (Ref. MS51843)
