Deltrol

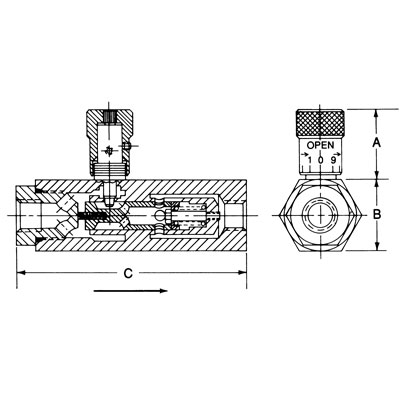

Adjustable Pressure Compensated Flow Control Valve
- Easy Read Design with Metal Setting Knob and Stem Hydraulic Only
- Positive Position Setting for Precise Flow Control
and Easy Repeatability
- Maximum Operating Pressure, 3,000 PSI
- Low Pressure Drop in Free Reverse
- Steel Construction
Deltrol’s Easy Read Adjustable Pressure Compensated
Flow Control Valves are designed for hydraulic use.
Metal setting knob and stem provide added durability for
positive operation of valve in harsh industrial environments.
Color coded stem plus numerical read-out ensure accurate
setting for precise pressure compensated flow control
and repeatability.
Valves will start to control flow at 60/70 PSI pressure drop.
Maximum operating pressure is 3,000 PSI. Flow regulated
between ±10% above 1.5 GPM; ±15% .5 to 1.5 GPM.
Operating Pressure: 60 - 3,000 PSI
Threads: 1/4" thru 3/4" NPTF
Materials:
- Body: Steel
- Needle: Stainless Steel
- O-Ring - Viton
- Washer - Teflon
- Knob - Aluminum
- Piston - Steel
- Spring - Music Wire
