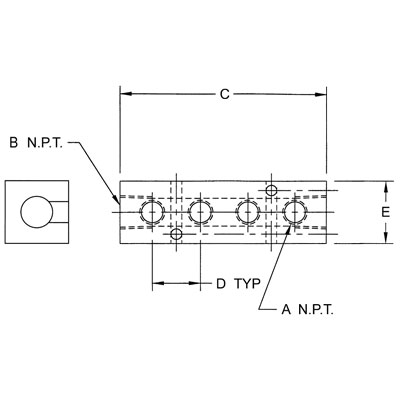

Alumi-Tec Manifolds with Ports on One Side

Part Number
# of Ports
OKCancelClear All
Side Ports NPT (A)
OKCancelClear All
End Ports NPT (B)
OKCancelClear All
Length (C)
OKCancelClear All
Distance Between Ports (D)
OKCancelClear All
Width (E)
OKCancelClear All
AM-1-2
2 Side Ports
1/8”
1/4”
1.75"
.75"
1.00"
AM-2-2
2 Side Ports
1/8”
3/8”
2.37"
.88"
1.25"
AM-3-2
2 Side Ports
1/4”
3/8”
2.37"
.88"
1.25"
AM-4-2
2 Side Ports
1/4”
1/2”
2.75"
1.00"
1.50"
AM-7-2
2 Side Ports
1/8”
3/8”
3.25"
1.50"
1.25"
AM-10-2
2 Side Ports
3/8”
1/2”
3.25"
1.50"
1.50"
AM-1-3
3 Side Ports
1/8”
1/4”
2.50"
.75"
1.00"
AM-2-3
3 Side Ports
1/8”
3/8”
3.25"
.88"
1.25"
AM-3-3
3 Side Ports
1/4”
3/8”
3.25"
.88"
1.25"
AM-5-3
3 Side Ports
3/8”
1/2”
3.75"
1.00"
1.50"
AM-9-3
3 Side Ports
1/4”
1/2”
4.75"
1.50"
1.50"
AM-10-3
3 Side Ports
3/8”
1/2”
4.75"
1.50"
1.50"
AM-1-4
4 Side Ports
1/8”
1/4”
3.25"
.75"
1.00"
AM-3-4
4 Side Ports
1/4”
3/8”
4.12"
.88"
1.25"
AM-4-4
4 Side Ports
1/4”
1/2”
4.75"
1.00"
1.50"
AM-5-4
4 Side Ports
3/8”
1/2”
4.75"
1.00"
1.50"
AM-6-4
4 Side Ports
1/8”
1/4”
6.25"
1.50"
1.00"
AM-8-4
4 Side Ports
1/4”
3/8”
6.25"
1.50"
1.25"
AM-10-4
4 Side Ports
3/8”
1/2”
6.25"
1.50"
1.50"
AM-1-5
5 Side Ports
1/8”
1/4”
4.00"
.75"
1.00"
AM-3-5
5 Side Ports
1/4”
3/8”
5.00"
.88"
1.25"
AM-4-5
5 Side Ports
1/4”
1/2”
5.75"
1.00"
1.50"
AM-5-5
5 Side Ports
3/8”
1/2”
5.75"
1.00"
1.50"
AM-9-5
5 Side Ports
1/4”
1/2”
7.75"
1.50"
1.50"
AM-1-6
6 Side Ports
1/8”
1/4”
4.75"
.75"
1.00"
AM-2-6
6 Side Ports
1/8”
3/8”
5.88"
.88"
1.25"
AM-3-6
6 Side Ports
1/4”
3/8”
5.88"
.88"
1.25"
AM-6-6
6 Side Ports
1/8”
1/4”
9.25"
1.50"
1.00"
AM-8-6
6 Side Ports
1/4”
3/8”
9.25"
1.50"
1.25"
AM-10-6
6 Side Ports
3/8”
1/2”
9.25"
1.50"
1.50"
AM-1-7
7 Side Ports
1/8”
1/4”
5.50"
.75"
1.00"
AM-3-7
7 Side Ports
1/4”
3/8”
6.75"
.88"
1.25"
AM-5-7
7 Side Ports
3/8”
1/2”
7.75"
1.00"
1.50"
AM-1-8
8 Side Ports
1/8”
1/4”
6.25"
.75"
1.00"
AM-3-8
8 Side Ports
1/4”
3/8”
7.62"
.88"
1.25"
AM-5-8
8 Side Ports
3/8”
1/2”
8.75"
1.00"
1.50"
AM-10-8
8 Side Ports
3/8”
1/2”
12.25"
1.50"
1.50"
AM-1-9
9 Side Ports
1/8”
1/4”
7.00"
.75"
1.00"
AM-3-9
9 Side Ports
1/4”
3/8”
8.50"
.88"
1.25"
AM-5-9
9 Side Ports
3/8”
1/2”
9.75"
1.00"
1.50"
AM-1-10
10 Side Ports
1/8”
1/4”
7.75"
.75"
1.00"
AM-3-10
10 Side Ports
1/4”
3/8”
9.38"
.88"
1.25"
AM-5-10
10 Side Ports
3/8”
1/2”
10.75"
1.00"
1.50"
AM-10-10
10 Side Ports
3/8”
1/2”
15.25"
1.50"
1.50"
