Anchor Flange

Anchor Flange Adapters - Split Flange Adapters

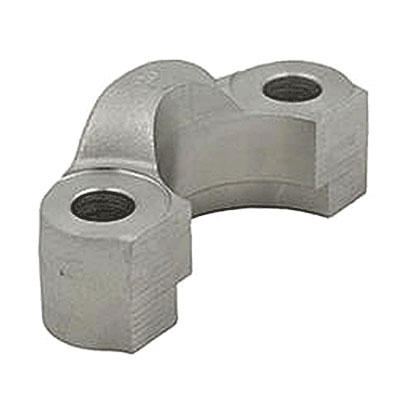

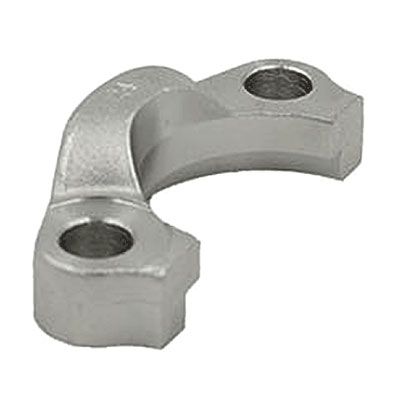

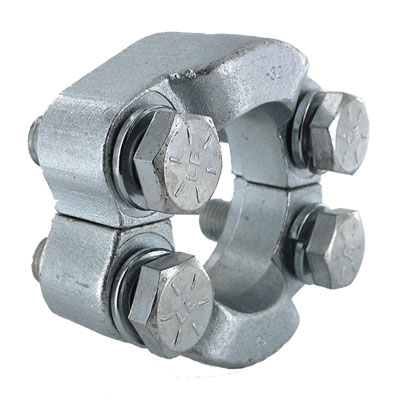

Split flange adapters provide a strong, leak-resistant connection for high-pressure hydraulic systems by joining tube or hose assemblies to SAE or ISO flanged ports. Their two-piece clamp design allows for easy installation in tight or hard-to-reach areas. Ideal for mobile equipment, industrial machinery, and heavy-duty fluid power applications requiring secure, serviceable connections.

Part Number
Size
Pressure Rating
Bolt Torque [lb-in]
1/2”
5000
175-225
3/4”
5000
250-350
1”
5000
325-425
1-1/4”
4000
425-500
1-1/2”
3000
550-700
2”
3000
650-800
2-1/2”
2500
950-1100
3”
2000
1650-1800

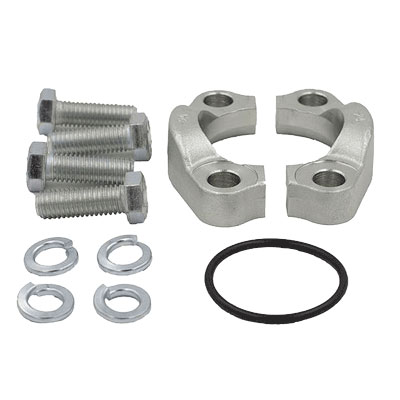

Flange adaptors include flange adaptor, 4-hex bolts with lockwashers and Buna-N O-ring.

Part Number
Size
Pressure Rating
Bolt Torque [lb-in]
3/4”
6000
300-400
1”
6000
500-600
1-1/4”
6000
750-900
1-1/2”
6000
1400-1600
2”
6000
2400-2600

Flange adaptors include flange adaptor, 4-hex bolts with lockwashers and Buna-N O-ring.
