Thermal Transfer

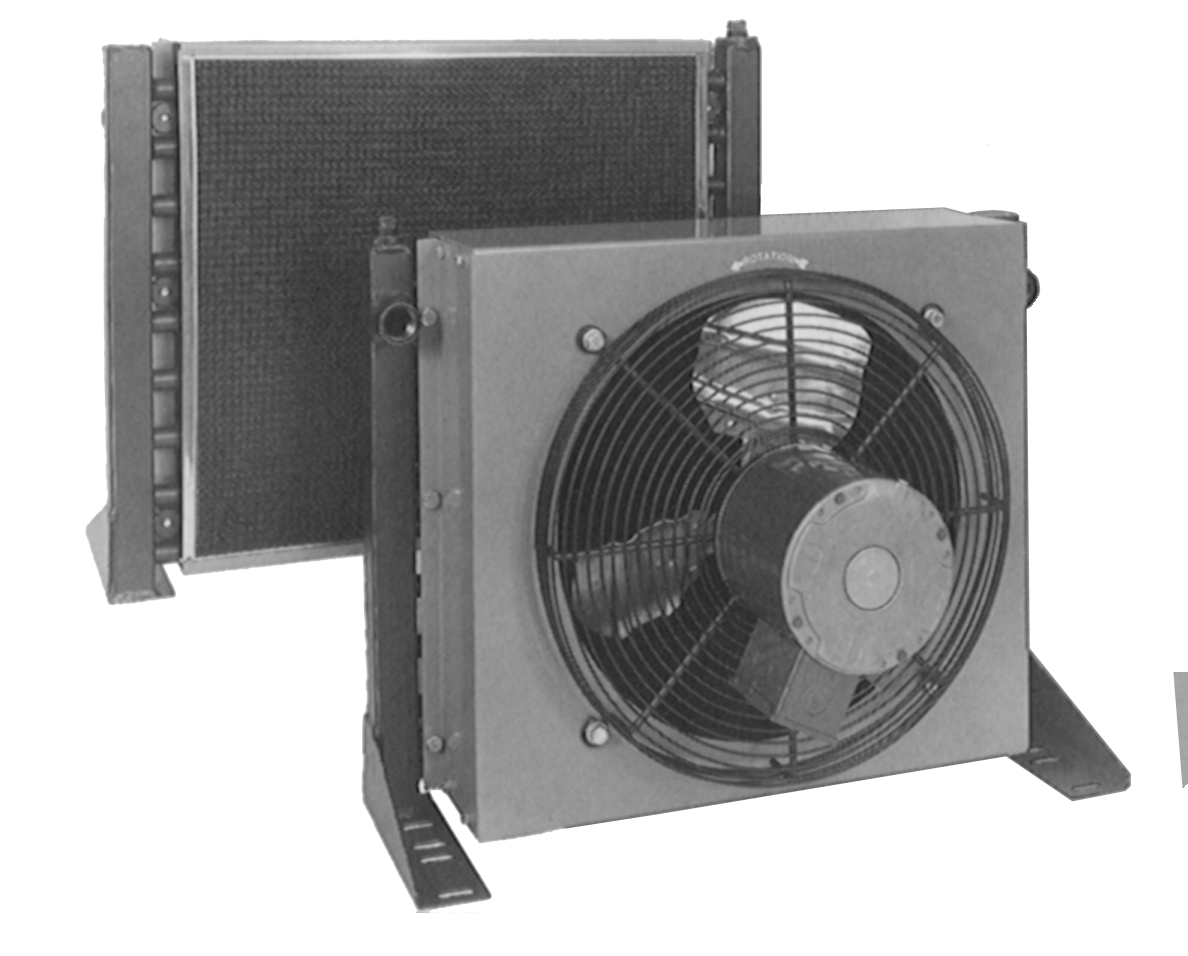

AOC Series Hydraulic Air Cooler

Low cost, industrial duty forced air oil cooler. Quiet operation. Mounting bracket included. SAE connections, filter standard. Copper tube/aluminum fin cooling coils. Maximum operating pressure: 300 PSI Maximum operating temperature: 350° F.


Sizing a Hydraulic Oil Cooler
1 - Determine the system oil flow (GPM).
2 - Size the cooler to remove approximately 30% of input horsepower.

Part Number
MOTOR**
OKCancelClear All
SAE PORTS
OKCancelClear All
H
OKCancelClear All
W
OKCancelClear All
L
OKCancelClear All
WEIGHT (LBS)
OKCancelClear All

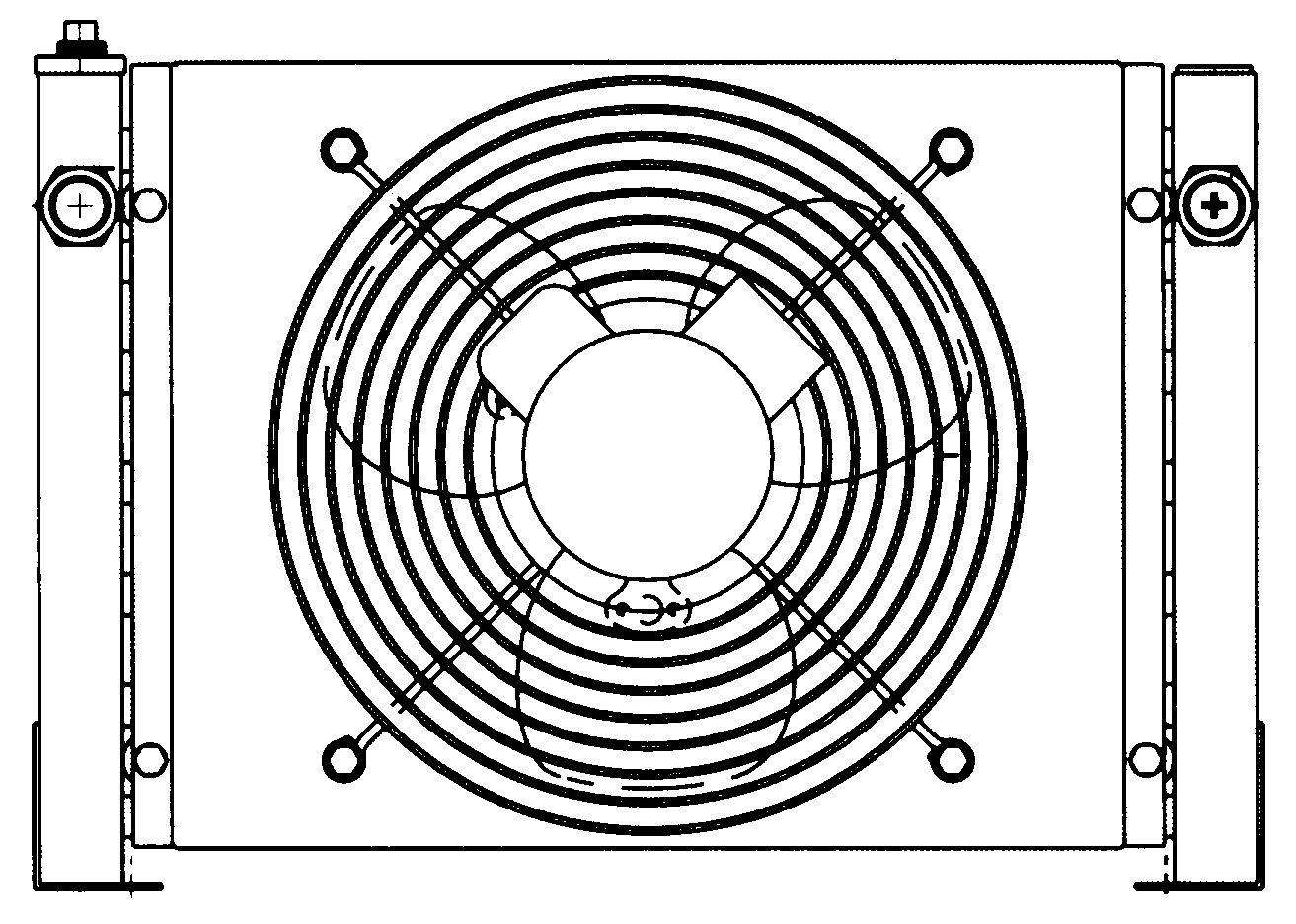

A0C-19-2-3 PHASE
1/4 HP
#12
13.62
13.08
16.50
19
A0C-22-2-3 PHASE
1/4 HP
#12
15.62
12.19
22.00
33
A0C-24-2-3 PHASE
1/4 HP
#12
19.62
13.19
24.75
46
A0C-33-2-3 PHASE
1/4 HP
#16
25.62
13.19
30.25
65

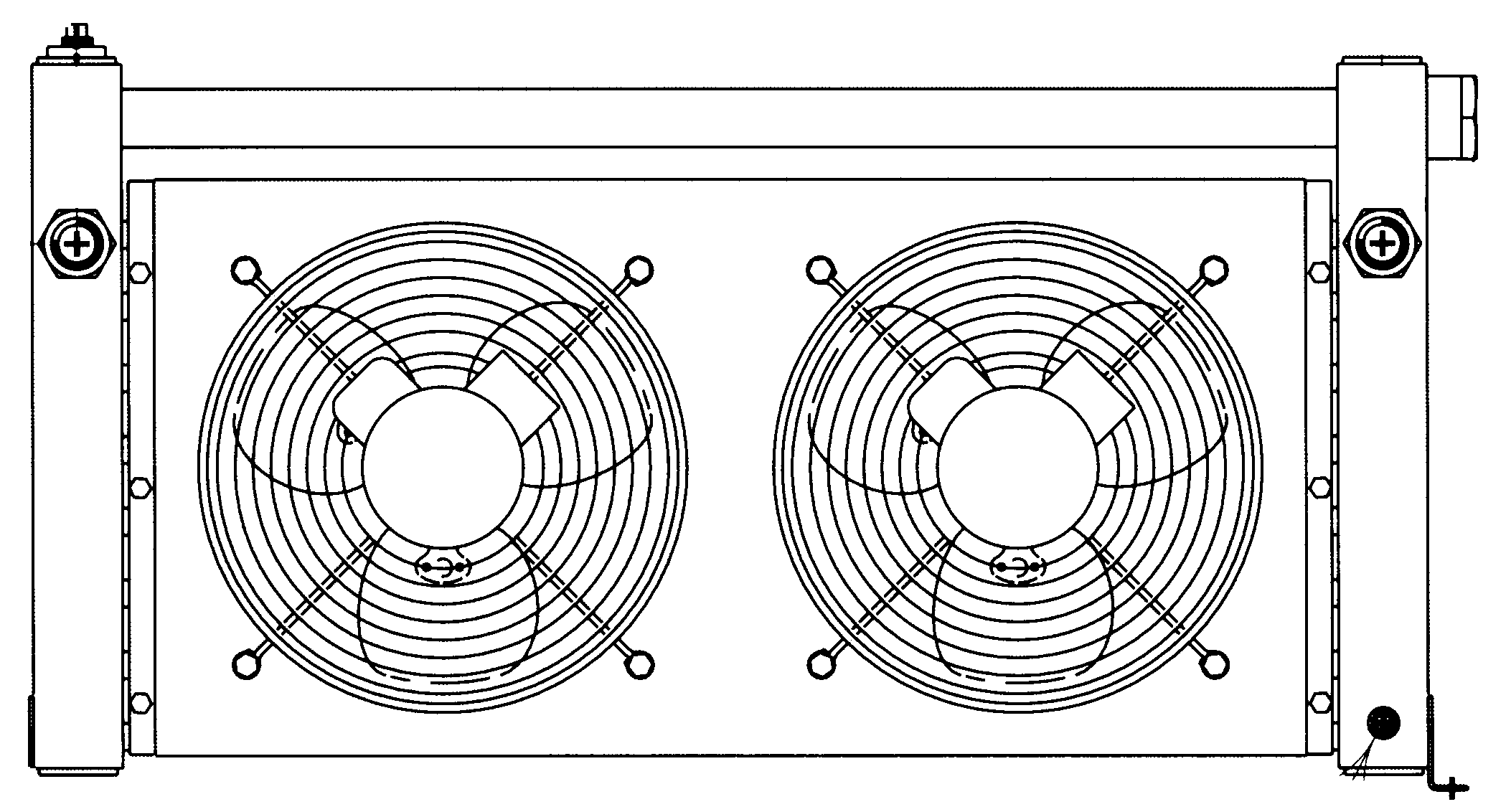

A0C-37-2-3 PHASE
1/4 HP [2]
#20
18.50
15.66
39.00
95
A0C-50-2-3 PHASE
1/4 HP [2]
#20
22.50
15.62
41.00
120
A0C-54-2-3 PHASE
1/4 HP [2]
#24
30.50
17.09
42.00
154
A0C-57-2-3 PHASE
1/4 HP [2]
#32
36.50
16.72
48.00
190
A0C-70-2-3 PHASE
1 HP [2]
#32
38.38
22.62
51.00
322

**All units 208/230/460/3/60
