Bosch Rexroth

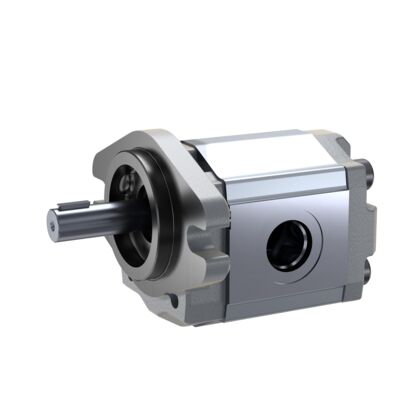

AZPB Hydraulic Gear Pumps

The Bosch Rexroth AZPB series comprises high-performance external gear pumps designed to convert mechanical energy into hydraulic energy efficiently. These pumps are known for their consistent quality, long service life, and suitability for high-load applications. They feature slide bearings, various drive shaft options conforming to ISO or SAE standards, and multiple line connection possibilities, including connection flanges and screw-in threads.

  • Displacement: 1.0 to 7.1 cm³ per revolution
  • Max Pressure: 220 bar (continuous), 250 bar (intermittent)
  • Speed Range: 500 to 5000 rpm (depends on size)
  • Drive Shafts: Various ISO/SAE options (tapered, splined, keyed, etc.)
  • Mounting: 2-hole & rectangular flanges (ISO/SAE standards)
  • Connections: Threaded or flanged options (ISO, SAE, DIN)

    • Part Number
    CC/REV
    OKCancelClear All
    THEORETICAL DISPLACEMENT in3/rev
    OKCancelClear All
    FLOW @ 1200 RPM (THEORETICAL) (gpm)
    OKCancelClear All
    FLOW @ 1800 RPM (THEORETICAL) (gpm)
    OKCancelClear All
    MAX. CONT. PRESSURE (psi) (Mineral Oil)
    OKCancelClear All
    MOUNT TYPE
    OKCancelClear All
    SHAFT DIA. (IN.)
    OKCancelClear All
    SHAFT LENGTH (IN.)
    OKCancelClear All
    INLET PORT
    OKCancelClear All
    PRESSURE PORT
    OKCancelClear All
    R979107374
    1
    0.06
    0.32
    0.48
    3190
    SAE-AA, 2-Bolt
    1/2" OD, WOODDRUFF KEY - 1/8" x 1/2"
    1.063
    06 SAE
    06 SAE
    R979107383
    1
    0.06
    0.32
    0.48
    3190
    SAE-AA, 2-Bolt
    1/2" OD, WOODDRUFF KEY - 1/8" x 1/2"
    1.5
    06 SAE
    06 SAE
    R979107375
    2
    0.12
    0.63
    0.95
    3190
    SAE-AA, 2-Bolt
    1/2" OD, WOODDRUFF KEY - 1/8" x 1/2"
    1.063
    08 SAE
    06 SAE
    R979107366
    2
    0.12
    0.63
    0.95
    3190
    SAE-AA, 2-Bolt
    1/2" OD, 9T 20/40SP
    1.063
    08 SAE
    06 SAE
    R979107384
    2
    0.12
    0.63
    0.95
    3190
    SAE-AA, 2-Bolt
    1/2" OD, WOODDRUFF KEY - 1/8" x 1/2"
    1.5
    08 SAE
    06 SAE
    R979107377
    3.1
    0.19
    0.98
    1.47
    3190
    SAE-AA, 2-Bolt
    1/2" OD, WOODDRUFF KEY - 1/8" x 1/2"
    1.063
    08 SAE
    06 SAE
    R979107368
    3.1
    0.19
    0.98
    1.47
    3190
    SAE-AA, 2-Bolt
    1/2" OD, 9T 20/40SP
    1.063
    08 SAE
    06 SAE
    R979107386
    3.1
    0.19
    0.98
    1.47
    3190
    SAE-AA, 2-Bolt
    1/2" OD, WOODDRUFF KEY - 1/8" x 1/2"
    1.5
    08 SAE
    06 SAE
    R979107378
    4
    0.24
    1.27
    1.9
    3190
    SAE-AA, 2-Bolt
    1/2" OD, WOODDRUFF KEY - 1/8" x 1/2"
    1.063
    08 SAE
    06 SAE
    R979107369
    4
    0.24
    1.27
    1.9
    3190
    SAE-AA, 2-Bolt
    1/2" OD, 9T 20/40SP
    1.063
    08 SAE
    06 SAE
    R979107387
    4
    0.24
    1.27
    1.9
    3190
    SAE-AA, 2-Bolt
    1/2" OD, WOODDRUFF KEY - 1/8" x 1/2"
    1.5
    08 SAE
    06 SAE
    R979107380
    5
    0.31
    1.58
    2.38
    3190
    SAE-AA, 2-Bolt
    1/2" OD, WOODDRUFF KEY - 1/8" x 1/2"
    1.063
    08 SAE
    06 SAE
    R979107371
    5
    0.31
    1.58
    2.38
    3190
    SAE-AA, 2-Bolt
    1/2" OD, 9T 20/40SP
    1.063
    08 SAE
    06 SAE
    R979107389
    5
    0.31
    1.58
    2.38
    3190
    SAE-AA, 2-Bolt
    1/2" OD, WOODDRUFF KEY - 1/8" x 1/2"
    1.5
    08 SAE
    06 SAE
    R979107381
    6.3
    0.38
    2
    3
    3190
    SAE-AA, 2-Bolt
    1/2" OD, WOODDRUFF KEY - 1/8" x 1/2"
    1.063
    10 SAE
    08 SAE
    R979107372
    6.3
    0.38
    2
    3
    3190
    SAE-AA, 2-Bolt
    1/2" OD, 9T 20/40SP
    1.063
    10 SAE
    08 SAE
    R979107390
    6.3
    0.38
    2
    3
    3190
    SAE-AA, 2-Bolt
    1/2" OD, WOODDRUFF KEY - 1/8" x 1/2"
    1.5
    10 SAE
    08 SAE
    R979107382
    7.1
    0.43
    2.25
    3.38
    2900
    SAE-AA, 2-Bolt
    1/2" OD, WOODDRUFF KEY - 1/8" x 1/2"
    1.063
    10 SAE
    08 SAE
    R979107373
    7.1
    0.43
    2.25
    3.38
    2900
    SAE-AA, 2-Bolt
    1/2" OD, 9T 20/40SP
    1.063
    10 SAE
    08 SAE
    R979107391
    7.1
    0.43
    2.25
    3.38
    2900
    SAE-AA, 2-Bolt
    1/2" OD, WOODDRUFF KEY - 1/8" x 1/2"
    1.5
    10 SAE
    08 SAE
