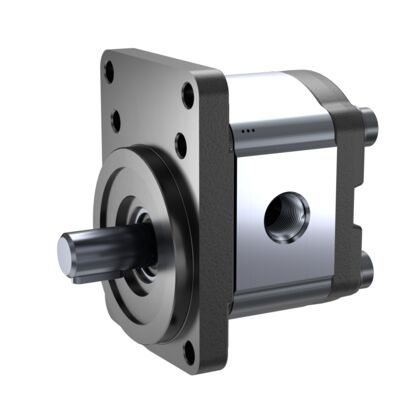

AZPF Hydraulic Gear Pumps

The gear type pump is the most widely used design in hydraulic systems. It is simple in construction, reliable in operation, performs with a variety of fluids and is the most cost effective way of generating hydraulic pressure. Bosch has been involved in the design, development and manufacture of gear pumps for many years and is one of the largest manufacturers of quality gear pumps in the world.


Gear Pumps:
• Flows from 1.85 gpm to 13.18 gpm @ 1750 rpm
• Pressures to 3625 psi continuous
• Continuous speeds from 500 to 3500 rpm
• Overall efficiencies from 85 to 92%
• Pump bodies built from extruded aluminum with cast iron end covers form a very high strength unit
• DU bearings are standard ensuring long life

Part Number
THEORETICAL DISPLACEMENT in3/rev
OKCancelClear All
FLOW @ 1750 RMP (THEORETICAL) (gpm)
OKCancelClear All
MAX. CONT. PRESSURE (psi)
OKCancelClear All
MOUNTING FLANGE
PORT SIZE UNF-2B Suction
OKCancelClear All
PORT SIZE UNF-2B Pressure
OKCancelClear All

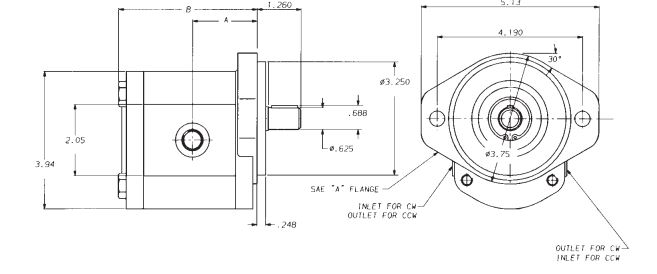

DIMENSION A in.
OKCancelClear All
DIMENSION B in.
OKCancelClear All
OUTPUT* SHAFT
OKCancelClear All
PART NO. CW ROTATION
OKCancelClear All
9510290021
0.24
1.85
3625
SAE A
#10 SAE
#8 SAE
1.57
3.35
Keyed
AZPF-12/004RQR12MB
9510290015
0.24
1.85
3625
SAE A
#10 SAE
#8 SAE
1.57
3.35
Spline
AZPF-12/004RRR12MB
9510290022
0.34
2.54
3625
SAE A
#10 SAE
#8 SAE
1.61
3.44
Keyed
AZPF-12/005RQR12MB
9510290005
0.34
2.54
3625
SAE A
#10 SAE
#8 SAE
1.61
3.44
Spline
AZPF-12/005RRR12MB
9510290023
0.49
3.7
3625
SAE A
#12 SAE
#10 SAE
1.7
3.61
Keyed
AZPF-12/008RQR12MB
9510290017
0.49
3.7
3625
SAE A
#12 SAE
#10 SAE
1.7
3.61
Spline
AZPF-12/008RRR12MB
9510290024
0.67
5.08
3625
SAE A
#12 SAE
#10 SAE
1.85
3.81
Keyed
AZPF-12/011RQR12MB
9510290414
0.67
5.08
3625
SAE A
#12 SAE
#10 SAE
1.85
3.81
Spline
AZPF-12/011RRR12MB
9510290025
0.85
6.47
3625
SAE A
#12 SAE
#10 SAE
1.85
4.00
Keyed
AZPF-12/014RQR12MB
9510290004
0.85
6.47
3625
SAE A
#12 SAE
#10 SAE
1.85
4.00
Spline
AZPF-12/014RRR12MB
9510290122
0.98
7.39
3625
SAE A
#16 SAE
#10 SAE
1.85
4.14
Keyed
AZPF-12/016RQR12MB
9510290056
0.98
7.39
3625
SAE A
#16 SAE
#10 SAE
1.85
4.14
Spline
AZPF-12/016RRR12MB
9510290123
1.16
8.78
3045
SAE A
#16 SAE
#10 SAE
1.85
4.33
Keyed
AZPF-12/019RQR12MB
9510290125
1.16
8.78
3045
SAE A
#16 SAE
#10 SAE
1.85
4.33
Spline
AZPF-12/019RRR12MB
9510290124
1.37
10.38
2610
SAE A
#16 SAE
#10 SAE
2.17
4.54
Keyed
AZPF-12/022RQR12MB
9510290126
1.37
10.38
2610
SAE A
#16 SAE
#10 SAE
2.17
4.54
Spline
AZPF-12/022RRR12MB
9510290112
1.53
11.6
2900
SAE A
#16 SAE
#10 SAE
2.49
5.18
Keyed
AZPF-22/025RQR12MB
9510290111
1.53
11.6
2900
SAE A
#16 SAE
#10 SAE
2.49
5.18
Spline
AZPF-22/025RRR12MB
9510290115
1.71
12.5
2465
SAE A
#16 SAE
#10 SAE
2.58
5.37
Keyed
AZPF-22/028RQR12MB
9510290114
1.71
12.5
2465
SAE A
#16 SAE
#10 SAE
2.58
5.37
Spline
AZPF-22/028RRR12MB

* Keyed-.625 Diameter., Keyway-.156 square x .75 long Spline-SAE A 9T, 16/32 SP, ANSI B 92.1
