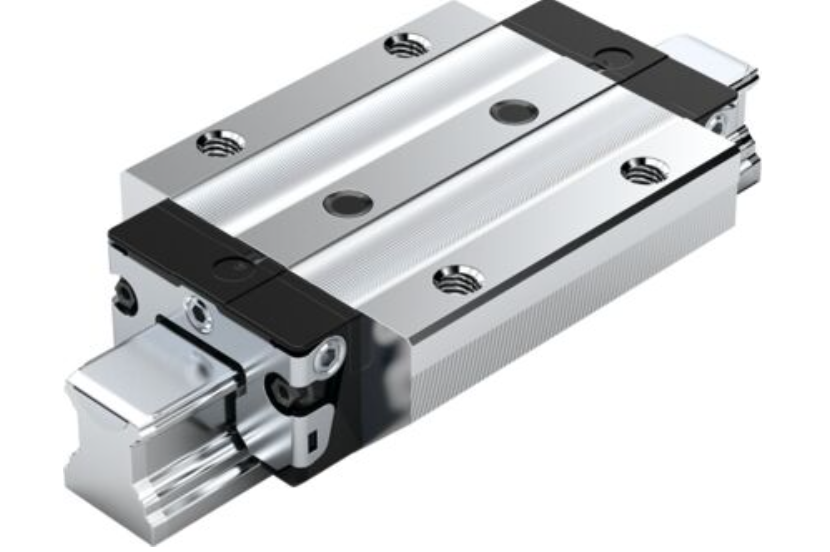

Ball Runner Block
The ball runner block is highly precise
and characterized by the following product features:
Format FLS: Width = flange, length = long, height = standard
Runner block body made of unalloyed steel CS
Preload class C1: Low preload
Accuracy class N: Standard
With initial lubrication and preservation
Roller bearing grease Dynalub 510
Straight lube connection loosely attached.
Runner block body in standard version
Interchangeability: The runner block and the guide rails can be combined with
each other with every accuracy.
- Area of
application: For the most demanding rigidity requirements
- Significantly
reduced frictional oscillations and low friction force level, particularly
under external load
- Excellent
dynamic characteristics
- Maximum
precision
- Patented
entry zone increases the travel accuracy up to a factor of six
- Long-term
lubrication is possible over several years
- Lube
fittings with metal threads on all sides
- End-face
fastening thread for all attachments
- Integrated
all-round sealing
- High
torque load capacity
- Different
preload classes
- High
rigidity in all load directions – permits applications with just one
runner block per rail
- Improved
rigidity under lift-off and side loading conditions due to two additional
mounting screw holes at the center of the ball runner block
- Maximum
system rigidity due to preloaded O-arrangement
- Optional
integrated, inductive and wear-free measuring system
- Attachments
on the ball runner block can be mounted from above and below
- Can be
used on all SNS/SNO ball guide rails
- The same
high load ratings in all four main directions of loading
- Ball
runner block pre-lubricated at the factory
