Bosch Rexroth

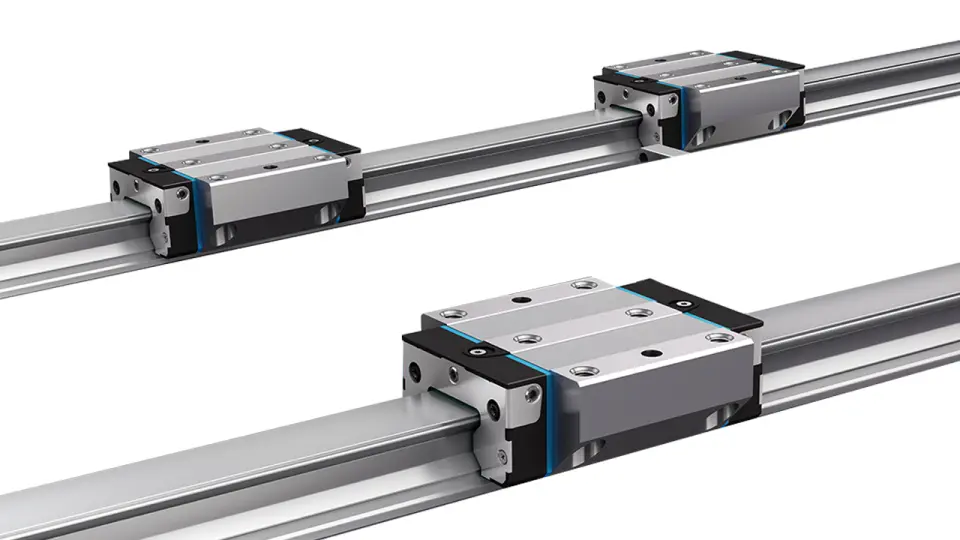

Bosch Rexroth BSHP High Precision Ball Guide Rails

Rexroth Ball Rail Systems feature precision-manufactured, fully interchangeable guide rails and runner blocks. Complete units can be configured from stock components in any combination within the same accuracy class, enabling flexible planning, individual stocking, and efficient global logistics. Both sides of the guide rail can serve as reference edges.

Feature                                                                                                         Applicability

Interchangeable guide rails and runner blocks                                    BSHP family

High load capacity and rigidity                                                                BSHP family

Smooth, precise travel                                                                              BSHP family

Speeds up to 10 m/s                                                                                 High-speed configurations only

60% weight reduction                                                                               Aluminum runner blocks only

Installation error compensation                                                             Super runner blocks

Integrated measuring system                                                                 Optional configuration

Steps to Configure Your BSHP Ball Guide Rail

1) Make Product Selections, Below.
2) Click "Request Quote" Button Below Configurator
3) Fill In Your Contact Information
4) A JHF Inside Sales Rep Will Contact You With a Product Quote
