Danfoss (Weatherhead)

Brass & Steel BSP Metric Fittings - Male Connector

Typical Application: Pressure-Hydraulic Systems
Pressure: Up to 5,000 PSI Depending on Size
Sealing Method: Metal to Metal, 30˚ Cone-NPSM Thread on Swivel End.
Material: Carbon Steel, AISI/SAE 12L14.
Plating: Zinc, Yellow Dichromate Finish.
Label Set: FS-100 (Adhesive)

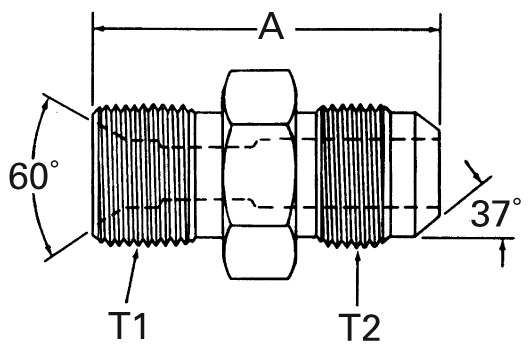

Part Number
Tube O.D. Inches
Thread T1 (BSPP)
Thread T2
A Inches
.25
1/8–28
7/16–20
1.38
.25
1/4–19
7/16–20
1.38
.38
3/8–19
9/16–18
1.43
.63
1/2–14
7/8–14
1.73
.75
3/4–14
1-1/16–12
1.99
1.00
1­–11
1-5/16–12
2.09
