Danfoss (Weatherhead)

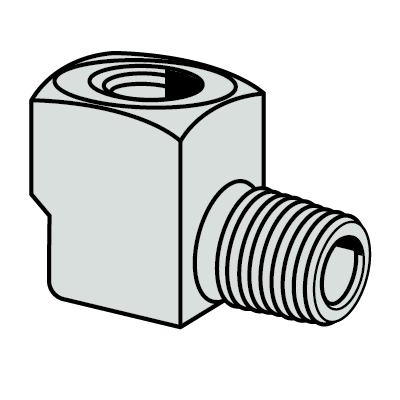

Brass Street Elbow

Pressure - Operating pressure up to 1200 psi
Vibration - Fair resistance
Temperature Range - -65F to +250F
Material - CA360 Brass
Used With - Brass, bronze, and iron pipe
Advantages - Dryseal pipe threads. Large range of sizes and configurations
Conformance - ASA, ASME, SAE
Assembly Instructions - Tighten approx. 2-1/2 turns past hand tight
Label Set - W-8022 (Adhesive), CL-490 (Non-adhesive)

Part Number
MALE PIPE THREAD
OKCancelClear All
FEM. PIPE THREAD
OKCancelClear All

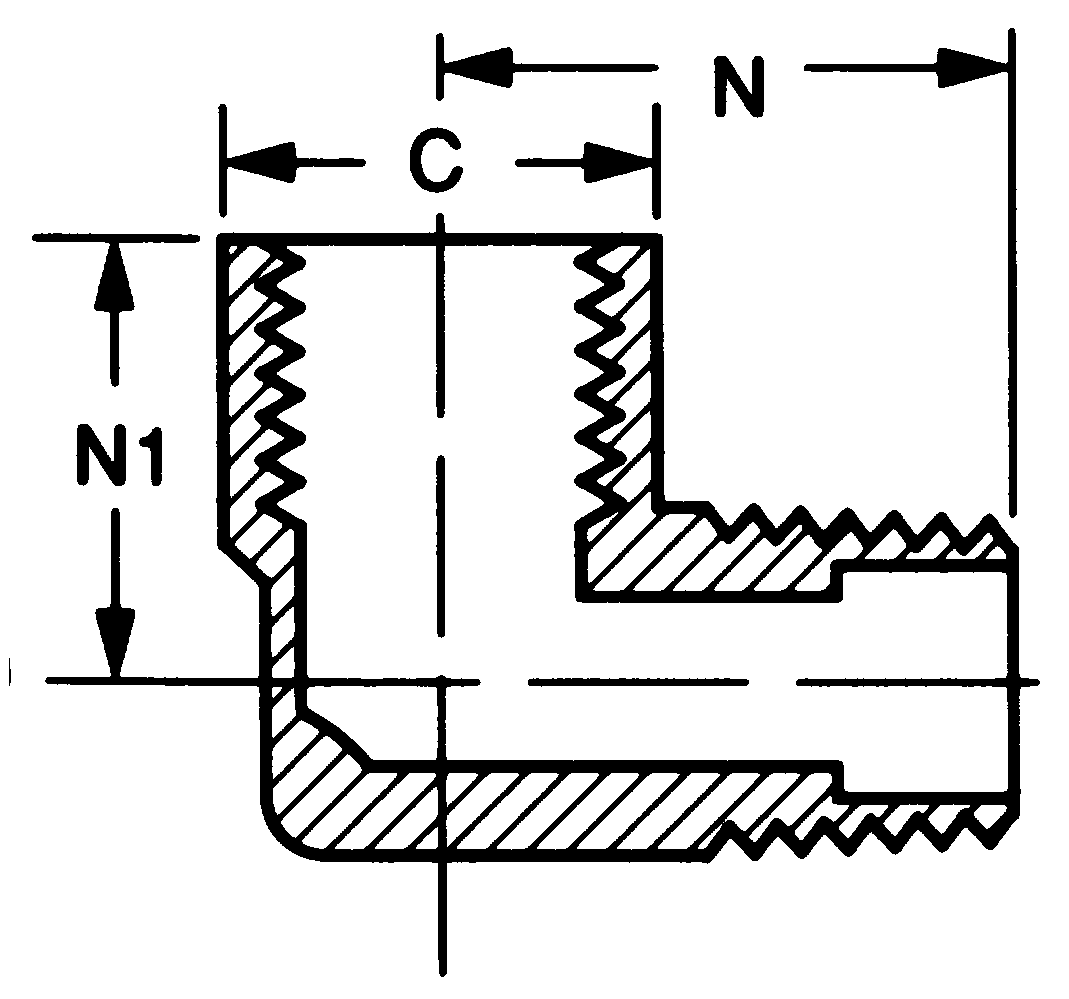

C
OKCancelClear All
N
OKCancelClear All
N1
OKCancelClear All
3400X2
1/8
1/8
9/16
.66
.50
3400X2W
1/8**
1/8*
1/2
.57
.34
3400X4X2
1/8
1/4
11/16
.72
.53
3400X4W
1/4**
1/4*
11/16
.78
.45
3400X4
1/4
1/4
11/16
.91
.72
3400X6
3/8
3/8
13/16
.97
.78
3400X8
1/2
1/2
1
1.25
1.03
3400X12
3/4
3/4
1-1/4
1.38
1.12

**PTF Short Thread **PTF Special Short Thread
