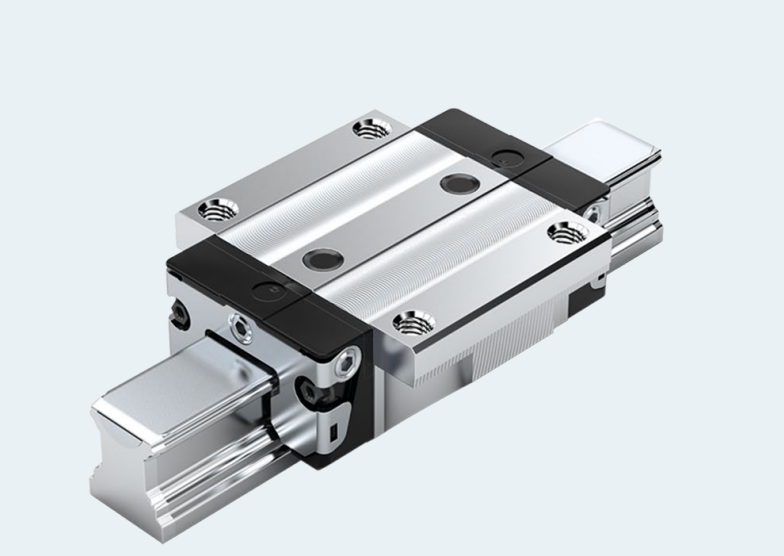

BSHP High Precision Ball Guide Rails
Rexroth Ball Rail Systems feature precision-manufactured, fully interchangeable guide rails and runner blocks. Complete units can be configured from stock components in any combination within the same accuracy class, enabling flexible planning, individual stocking, and efficient global logistics. Both sides of the guide rail can serve as reference edges.
| Feature | Applicability |
| Interchangeable guide rails and runner blocks | BSHP family |
| High load capacity and rigidity | BSHP family |
| Smooth, precise travel | BSHP family |
| Speeds up to 10 m/s | High-speed configurations only |
| 60% weight reduction | Aluminum runner blocks only |
| Installation error compensation | Super runner blocks |
| Integrated measuring system | Optional configuration |
Steps to Configure Your BSHP Ball Guide Rail
1) Make Product Selections, Below.
2) Click "Request Quote" Button Below Configurator
3) Fill In Your Contact Information
4) A JHF Inside Sales Rep Will Contact You With a Product Quote
