D05 [NG10] MODULAR VALVES

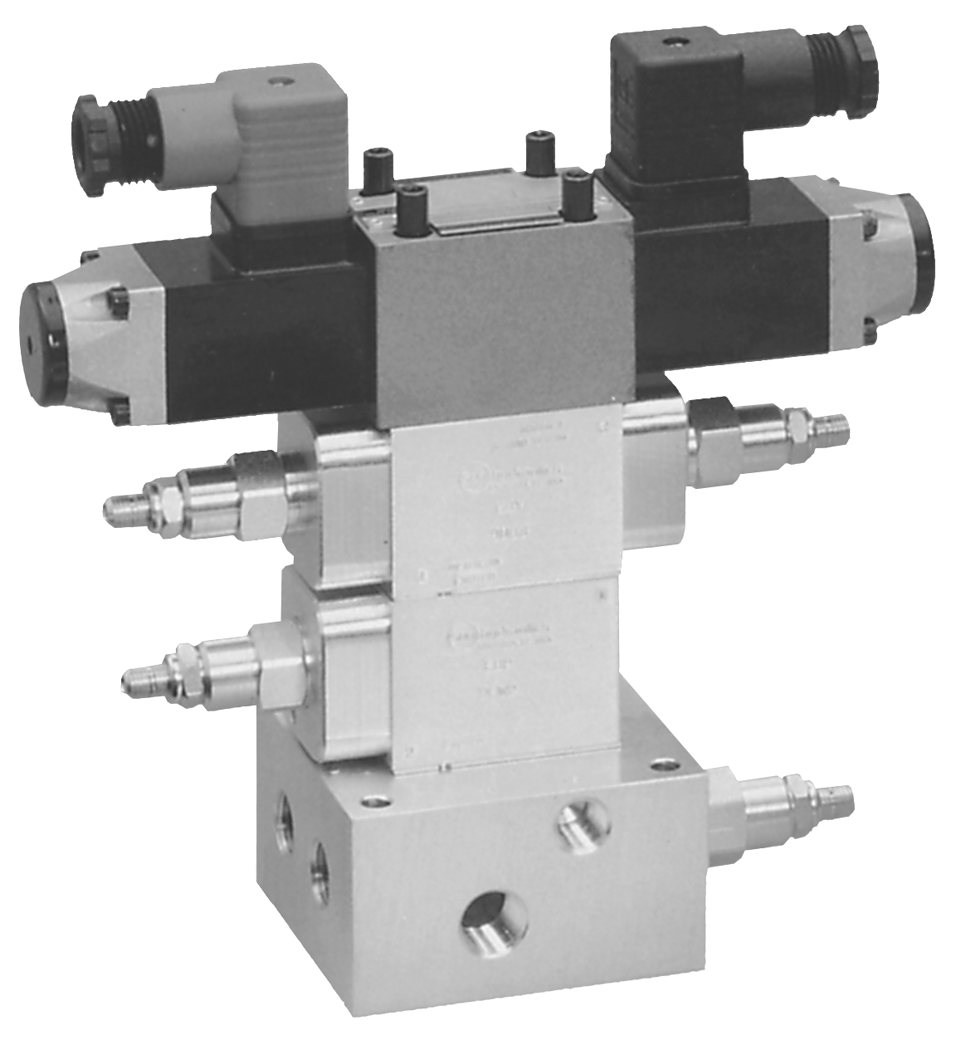

With modular valves, circuits are easily built by spacing them between the directional valve and the subplate. No piping is required which saves space and reduces the time and work required to build the circuit. This saves money and there are no connections to leak. The circuit can be easily changed by adding or removing modules as needed.

Part Number
VALVE TYPE
OKCancelClear All
VALVE FUNCTION
OKCancelClear All
ADJUSTMENT RANGE
OKCancelClear All
BODY HEIGHT
OKCancelClear All
RDDA-LBN-CBE
Relief Valve
Pressure to Tank
300 to 1500 psi
1.94"
RDDA-LAN-CBE
Relief Valve
Pressure to Tank
500 to 3000 psi
1.94"
RDDA-LBN-CBI
Relief Valve
Crossport: A to B; B to A
300 to 1500 psi
2.44"
RDDA-LAN-CBE
Relief Valve
Crossport: A to B; B to A
500 to 3000 psi
2.44"
PPFB-LQN-BBP
Reducing/Relieving
Reduction on P
60 to 400 psi
2.44"
PPFB-LBN-BBP
Reducing/Relieving
Reduction on P
50 to 1500 psi
2.44"
PPFB-LAN-BBP
Reducing/Relieving
Reduction on P
100 to 3000 psi
2.44"
PPFB-LQN-BBA
Reducing/Relieving
Reduction on A
60 to 400 psi
1.94"
PPFB-LBN-BBA
Reducing/Relieving
Reduction on A
50 to 1500 psi
1.94"
PPFB-LAN-BBA
Reducing/Relieving
Reduction on A
100 to 3000 psi
1.94"
PPFB-LQN-BBB
Reducing/Relieving
Reduction on B
60 to 400 psi
1.94"
PPFB-LBN-BBB
Reducing/Relieving
Reduction on B
50 to 1500 psi
1.94"
PPFB-LAN-BBB
Reducing/Relieving
Reduction on B
100 to 3000 psi
1.94"
FDCB-LAN-DBY**
Flow Control-Pres. Comp.*
Meter Out on A & B
1.94"
FDCB-LAN-DBY**
Flow Control-Pres. Comp.*
Meter In on A & B
1.94"
FDCB-LAN-DBA**
Flow Control-Pres. Comp.*
Meter Out on A
1.94"
FDCB-LAN-DBB**
Flow Control-Pres. Comp.*
Meter in on A
1.94"
FDCB-LAN-DBB**
Flow Control-Pres. Comp.*
Meter Out on B
1.94"
FDCB-LAN-DBA**
Flow Control-Pres. Comp.*
Meter In on B
1.94"
NCEB-LCN-DBY
Flow Control-Standard*
Meter Out on A & B
1.94"
NCEB-LCN-DBT
Flow Control-Standard*
Meter In on A & B
1.94"
NCEB-LCN-DBA**
Flow Control-Standard*
Meter Out on A
1.94"
NCEB-LCN-DBB**
Flow Control-Standard*
Meter in on A
1.94"
NCEB-LCN-DBB**
Flow Control-Standard*
Meter Out on B
1.94"
NCEB-LCN-DBA**
Flow Control-Standard*
Meter In on B
1.94"
NFDC-LAN-DBY**
Needle Valve
Meter Out on A & B
1.94"
NFDC-LAN-DBY**
Needle Valve
Meter In on A & B
1.94"
NFDC-LAN-DBA**
Needle Valve
Meter Out on A
1.94"
NFDC-LAN-DBB**
Needle Valve
Meter in on A
1.94"
NFDC-LAN-DBB**
Needle Valve
Meter Out on B
1.94"
NFDC-LAN-DBA**
Needle Valve
Meter In on B
1.94"
NFDC-LAN-DBP
Needle Valve
Meter In on P
1.94"
NFDC-LAN-DBT
Needle Valve
Meter Out on T
1.94"
CKEB-XCN-BBY
Pilot Operated Check
On A & B, Cross Piloted
3:1 Pilot Ratio
1.94"
CKEB-XCN-BBA
Pilot Operated Check
In Line A, pilot from B
3:1 Pilot Ratio
1.94"
CKEB-XCN-BBB
Pilot Operated Check
In Line B, pilot from A
3:1 Pilot Ratio
1.94"
CBEA-LHN-BBY
Counterbalance Valve*
On A & B, Cross Piloted
3:1 Pilot Ratio
1.94"
CBEA-LHN-BBA
Counterbalance Valve*
In Line A, pilot from B
3:1 Pilot Ratio
1.94"
CBEA-LHN-BBB
Counterbalance Valve*
In Line B, pilot from A
3:1 Pilot Ratio
1.94"
RSFC-LAN-BBW
Sequence Valve
In to P
100-3000

*With reverse flow checks **Refer to mounting instructions on valve body for proper orientation when installing.

Part Number
VALVE TYPE
OKCancelClear All
VALVE FUNCTION
OKCancelClear All
ADJUSTMENT RANGE
OKCancelClear All
BODY HEIGHT
OKCancelClear All
RDDA-LBN-CBE/S
Relief Valve
Pressure to Tank
300 to 1500 psi
1.94"
RDDA-LAN-CBE/S
Relief Valve
Pressure to Tank
500 to 3000 psi
1.94"
RDDA-LCN-CBE/S
Relief Valve
Pressure to Tank
1000 to 5000 psi
1.94"
RDDA-LBN-CBI/S
Relief Valve
Crossport: A to B; B to A
300 to 1500 psi
2.44"
RDDA-LAN-CBE/S
Relief Valve
Crossport: A to B; B to A
500 to 3000 psi
2.44"
RDDA-LCN-CBE/S
Relief Valve
Crossport: A to B; B to A
1000 to 5000 psi
2.44"
PPFB-LQN-BBP/S
Reducing/Relieving
Reduction on P
60 to 400 psi
2.44"
PPFB-LBN-BBP/S
Reducing/Relieving
Reduction on P
50 to 1500 psi
2.44"
PPFB-LAN-BBP/S
Reducing/Relieving
Reduction on P
100 to 3000 psi
2.44"
PPFB-LWN-BBP/S
Reducing/Relieving
Reduction on P
150 to 4500 psi
2.44"
PPFB-LQN-BBA/S
Reducing/Relieving
Reduction on A
60 to 400 psi
1.94"
PPFB-LBN-BBA/S
Reducing/Relieving
Reduction on A
50 to 1500 psi
1.94"
PPFB-LAN-BBA/S
Reducing/Relieving
Reduction on A
100 to 3000 psi
1.94"
PPFB-LWN-BBA/S
Reducing/Relieving
Reduction on A
150 to 4500 psi
1.94"
PPFB-LQN-BBB/S
Reducing/Relieving
Reduction on B
60 to 400 psi
1.94"
PPFB-LBN-BBB/S
Reducing/Relieving
Reduction on B
50 to 1500 psi
1.94"
PPFB-LAN-BBB/S
Reducing/Relieving
Reduction on B
100 to 3000 psi
1.94"
PPFB-LWN-BBB/S
Reducing/Relieving
Reduction on B
150 to 4500 psi
1.94"
FDCB-LAN-DBY/S**
Flow Control-Pres. Comp.*
Meter Out on A & B
1.94"
FDCB-LAN-DBY/S**
Flow Control-Pres. Comp.*
Meter In on A & B
1.94"
FDCB-LAN-DBA/S**
Flow Control-Pres. Comp.*
Meter Out on A
1.94"
FDCB-LAN-DBB/S**
Flow Control-Pres. Comp.*
Meter in on A
1.94"
FDCB-LAN-DBB/S**
Flow Control-Pres. Comp.*
Meter Out on B
1.94"
FDCB-LAN-DBA/S**
Flow Control-Pres. Comp.*
Meter In on B
1.94"
NCEB-LCN-DBY/S
Flow Control-Standard*
Meter Out on A & B
1.94"
NCEB-LCN-DBT/S
Flow Control-Standard*
Meter In on A & B
1.94"
NCEB-LCN-DBA/S**
Flow Control-Standard*
Meter Out on A
1.94"
NCEB-LCN-DBB/S**
Flow Control-Standard*
Meter in on A
1.94"
NCEB-LCN-DBB/S**
Flow Control-Standard*
Meter Out on B
1.94"
NCEB-LCN-DBA/S**
Flow Control-Standard*
Meter In on B
1.94"
NFDC-LAN-DBY/S**
Needle Valve
Meter Out on A & B
1.94"
NFDC-LAN-DBY/S**
Needle Valve
Meter In on A & B
1.94"
NFDC-LAN-DBA/S**
Needle Valve
Meter Out on A
1.94"
NFDC-LAN-DBB/S**
Needle Valve
Meter in on A
1.94"
NFDC-LAN-DBB/S**
Needle Valve
Meter Out on B
1.94"
NFDC-LAN-DBA/S**
Needle Valve
Meter In on B
1.94"
NFDC-LAN-DBP/S
Needle Valve
Meter In on P
1.94"
NFDC-LAN-DBT/S
Needle Valve
Meter Out on T
1.94"
CKEB-XCN-BBY/S
Pilot Operated Check
On A & B, Cross Piloted
3:1 Pilot Ratio
1.94"
CKEB-XCN-BBA/S
Pilot Operated Check
In Line A, pilot from B
3:1 Pilot Ratio
1.94"
CKEB-XCN-BBB/S
Pilot Operated Check
In Line B, pilot from A
3:1 Pilot Ratio
1.94"
CBEA-LHN-BBY/S
Counterbalance Valve*
On A & B, Cross Piloted
3:1 Pilot Ratio
1.94"
CBEA-LHN-BBA/S
Counterbalance Valve*
In Line A, pilot from B
3:1 Pilot Ratio
1.94"
CBEA-LHN-BBB/S
Counterbalance Valve*
In Line B, pilot from A
3:1 Pilot Ratio
1.94"
RSFC-LAN-BBW/S
Sequence Valve
In to P
100-3000
RSFC-LWN-BBW/S
Sequence Valve
In to P
150-4500 PSI
2.44"

*With reverse flow checks **Refer to mounting instructions on valve body for proper orientation when installing.

Part Number
DESCRIPTION
OKCancelClear All
B-96
Valve only
B-97
Valve + 1 module (1.57")
B-223
Valve + 1 module (1.97") or (1.94")
J-308
Valve + 1 module (2.44")
J-312
Valve + 2 modules (1.97")
J-313
Valve + 3 modules (1.97")
Part Number
DESCRIPTION
OKCancelClear All
992-011
4- 10-24 studs (7" long) and 4 stud nuts
992-012
4- 10-24 studs (12" long) and 4 stud nuts
992-013
10- 10-24 studs (36" long) and 50 stud nuts

* To determine proper stud length, Add 1.65” + total of module heights. Cut to size
