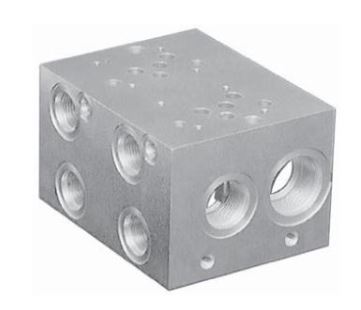

Daman D08 [NG25] Parallel Manifolds

Optimize fluid or gas distribution across multiple pathways in various industrial applications with the Daman D08 Parallel Manifold. Distribute fluids or gases to different processes, simultaneously, with multiple channels connected in parallel.

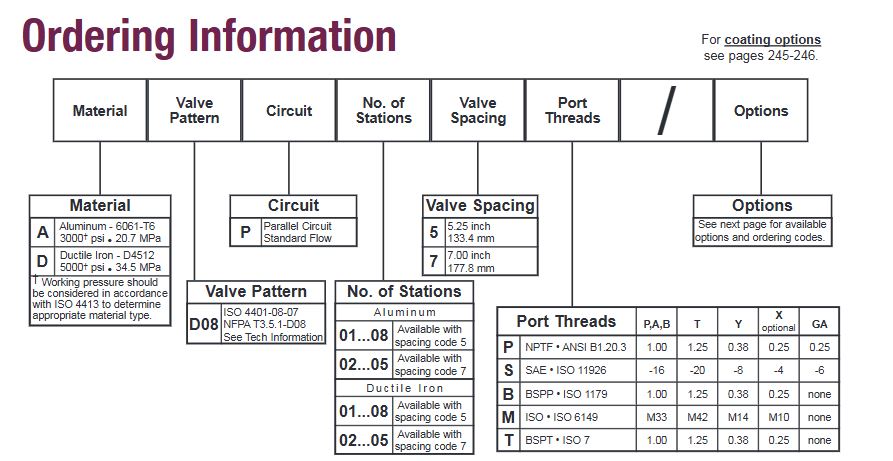

Part Number
NO. STATIONS
OKCancelClear All
P**, A & B PORTS
T** PORT
Y PORT
GAUGE PORT
OKCancelClear All
AD08P015S
1
16 SAE
20 SAE
8 SAE
AD08P015S/S*
1
16 SAE
20 SAE
8 SAE
AD08P025S
2
16 SAE
20 SAE
8 SAE
4 SAE
AD08P025S/S*
2
16 SAE
20 SAE
8 SAE
4 SAE
AD08P035S
3
16 SAE
20 SAE
8 SAE
4 SAE
AD08P035S/S*
3
16 SAE
20 SAE
8 SAE
4 SAE
AD08P045S
4
16 SAE
20 SAE
8 SAE
4 SAE
AD08P045S/S*
4
16 SAE
20 SAE
8 SAE
4 SAE
AD08P055S
5
16 SAE
20 SAE
8 SAE
4 SAE
AD08P055S/S*
5
16 SAE
20 SAE
8 SAE
4 SAE

ALUMINUM - 3000 psi max. - *Manifold has Sun relief valve cavity T-3A built into P to T port. **Pressure Port: 41 GPM @ 15 fps Tank Port: 72 GPM @ 15 fps

Part Number
NO. STATIONS
OKCancelClear All
P**, A & B PORTS
T** PORT
Y PORT
GAUGE PORT
OKCancelClear All
DD08P015S
1
16 SAE
20 SAE
8 SAE
DD08P015S/S
1
16 SAE
20 SAE
8 SAE
DD08P025S
2
16 SAE
20 SAE
8 SAE
4 SAE
DD08P025S/S
2
16 SAE
20 SAE
8 SAE
4 SAE
DD08P035S
3
16 SAE
20 SAE
8 SAE
4 SAE
DD08P035S/S
3
16 SAE
20 SAE
8 SAE
4 SAE
DD08P045S
4
16 SAE
20 SAE
8 SAE
4 SAE
DD08P045S/S
4
16 SAE
20 SAE
8 SAE
4 SAE
DD08P055S
5
16 SAE
20 SAE
8 SAE
4 SAE
DD08P055S/S
5
16 SAE
20 SAE
8 SAE
4 SAE

Mounting Hardware Included

Part Number
PRESSURE RANGE
OKCancelClear All
RPGE-LAN
100–3000 PSI
RPGE-LWN
150–4500 PSI
