Deltrol

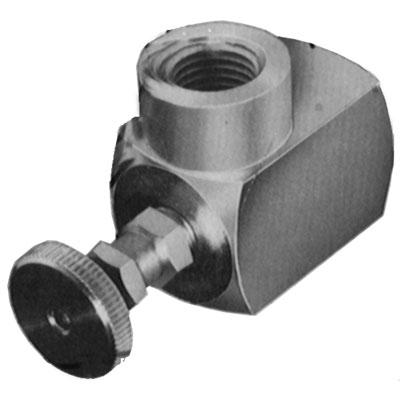

Deltrol Pneu-Trol Right Angle 1/4" Needle Valves
Ideally suited for use as gauge shut-off
valves, this new right angle Pneu-Trol
needle valve has 1/4” NPTF threads that
mount directly in gauge line. Flow is reduced
to that of 1/8” needle valve for limited flow
to gauge. This valve may also be used for
low flow applications.
- Maximum Operating Pressure
(Non-Shock Service)
5,000 PSI
- Operating Temperature Range
(O-Ring Packing)
Viton (Standard): -15° to +400°F
- Threads
1/4” NPTF Threads
- Materials
Housing, Plug, Body — Carbon Steel
- Needle —416 Stainless Steel
- Back-up Washer — Teflon
- Knob — Aluminum
- Maximum Recommended Flow Rate
3.2 GPM
