Deltrol

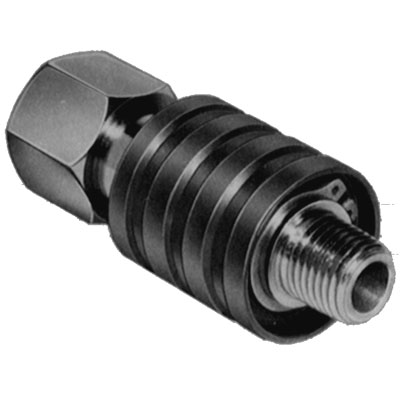

Deltrol Pneumatic Slide Valves
- Two Position, Three-Way Manually
Operated Valve
- For Pneumatic Operations
Only Up to 250 PSI
Non-Shock Service

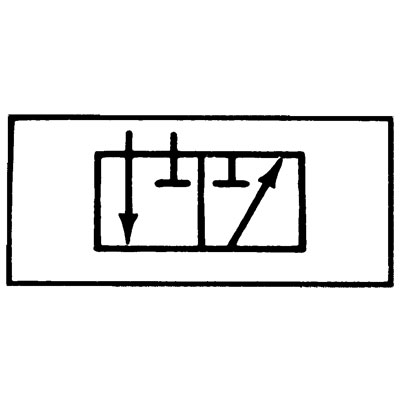

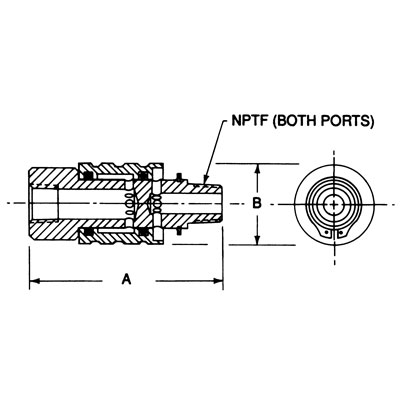

The Pneu-Trol Slide Valve is a manually
operated, two-position, three-way valve
for pneumatic applications. Permits
instant gauge reading, with gauge vented
to atmosphere with valve sleeve in other
position. Also ideal for applications such
as air clamps and single acting cylinders.
Brass sleeve assures ease of control
and positive action.
- Maximum Operating Pressure
250 PSI
- Operating Temperature Range
(O-Ring)
Buna N: -40° to +212°F
Materials
- Body — Steel (Black Oxide)
- Sleeve — Brass
- Retaining Ring — Steel
- O-Ring — Buna N
