Deltrol

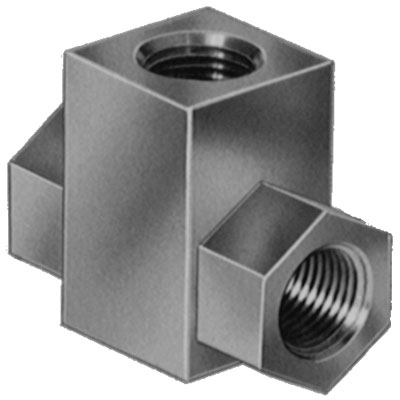

Deltrol Shuttle Valves

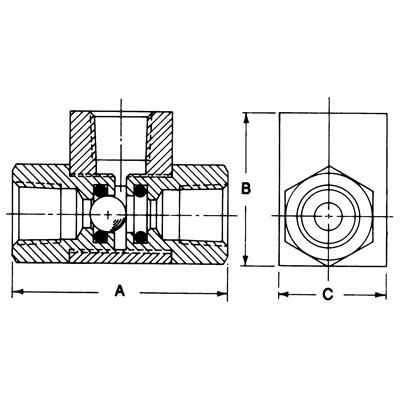

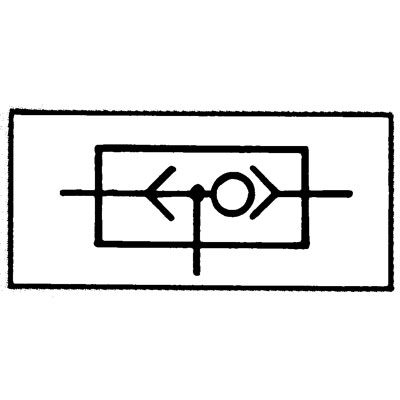

- Operates as a Three-Way Valve with Two Inlet
Ports and One Outlet Port. The Check Ball Moves
Away from the Inlet Port with the Greatest
Differential Pressure and Against the Port
Having the Least Differential Pressure
- Soft Buna N Check Ball Seats Insure
Bubble-Tight Operation
- 200 PSI Maximum Pressure Rating
(Non-Shock Service)
Maximum Operating Pressure (non-shock service): 200 PSI
Material: Brass
