Thermal Transfer

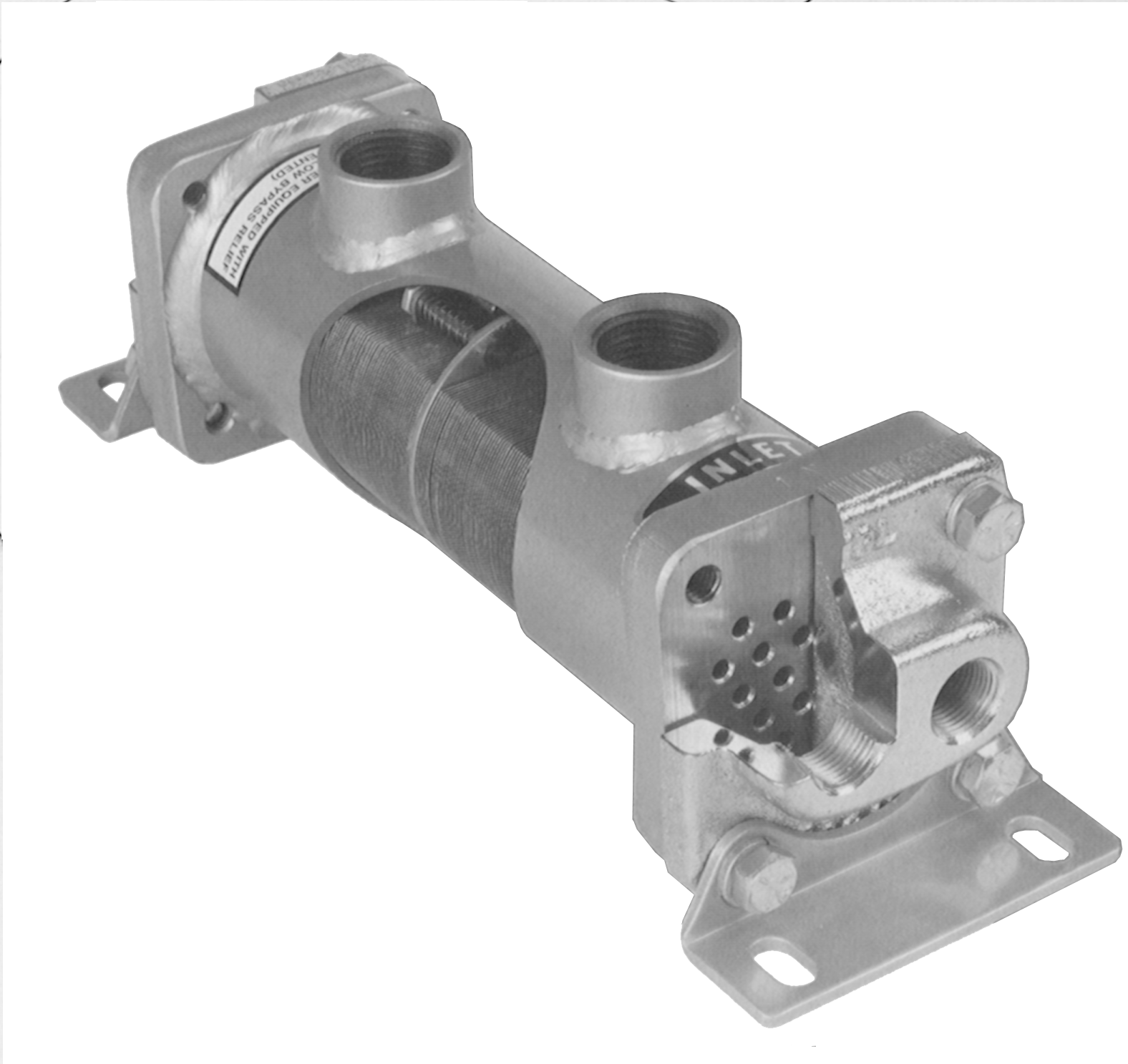

EK Two Pass Water Cooled Air Coolers

High oil reservoir temperatures can cause hydraulic fluids to break down, shortening the life of the oil, causing valves to stick and premature component failure. By use of a water cooled heat exchanger, stable reservoir temperatures can be maintained. Copper tubes/aluminum fin cooling coils. Removable end caps for easy tube cleaning. Mounting bracket designed for 90 degree rotation. Maximum shell side pressure: 500 PSI Maximum tube side pressure: 150 PSI Maximum temperature: 250 F

Part Number

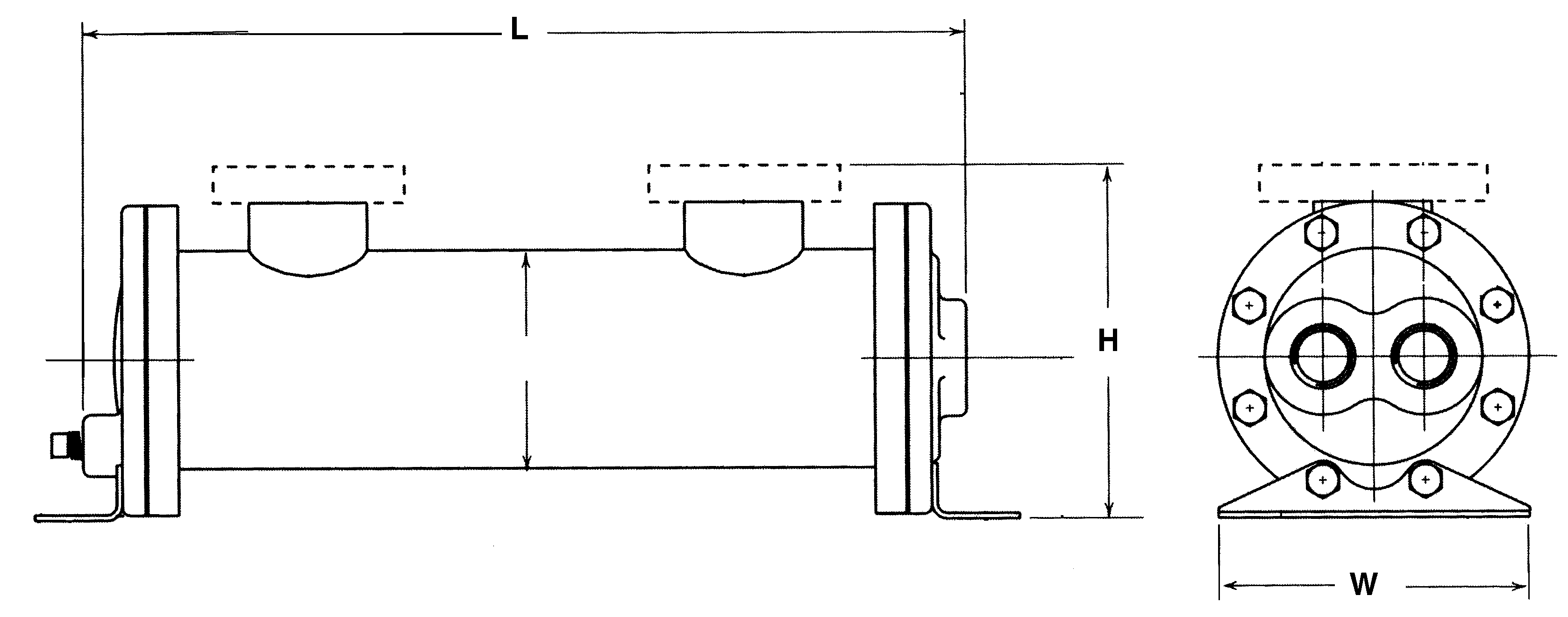

H
OKCancelClear All
W
OKCancelClear All
L
OKCancelClear All
OIL IN/OUT FPT
OKCancelClear All
WATER IN/OUT FPT
OKCancelClear All
WEIGHT (LBS)
OKCancelClear All
EK-505-T
3.74
3.50
7.38
1/2"
3/8"
6
EK-508-T
3.90
3.50
10.38
3/4"
3/8"
7
EK-708-T
5.47
5.00
10.19
1-1/2"
3/4"
15
EK-1012-T
7.64
6.50
14.58
2"
1"
35
Part Number
Modulating Water Valve Part No.
OKCancelClear All
PIPE SIZE (NPT)
OKCancelClear All
TEMPERATURE RANGE (OPEN POINT)
WORKING PRESSURE MAX.
MAXIMUM WATER FLOW
OKCancelClear All
65280
65511
1/2"
75°F TO 135°F
150 PSI
25 GPM
65280
65253
3/4"
75°F TO 135°F
150 PSI
40 GPM
67438
65254
1"
75°F TO 135°F
150 PSI
55 GPM
67438
65255
1-1/4"
75°F TO 135°F
150 PSI
75 GPM

APPLICATION: These modulating valves regulate the flow of water to the heat exchanger to maintain a desired exiting oil temperature. They open automatically as the result of a temperature increase at the sensing bulb. No external power source is required to actuate the valve. Not to be used for salt water service. *For additional protection of the bulb well stem, use the next longer bulb well.

Part Number
PIPE SIZE (NPT)
OKCancelClear All
TEMPERATURE RANGE (OPEN POINT)
WORKING PRESSURE MAX.
MAXIMUM WATER FLOW
OKCancelClear All
Bulb Well Part No.
OKCancelClear All
65511
1/2"
75°F TO 135°F
150 PSI
25 GPM
65280
65253
3/4"
75°F TO 135°F
150 PSI
40 GPM
65280
65254
1"
75°F TO 135°F
150 PSI
55 GPM
67438
65255
1-1/4"
75°F TO 135°F
150 PSI
75 GPM
67438

APPLICATION: These modulating valves regulate the flow of water to the heat exchanger to maintain a desired exiting oil temperature. They open automatically as the result of a temperature increase at the sensing bulb. No external power source is required to actuate the valve. Not to be used for salt water service.*For additional protection of the bulb well stem, use the next longer bulb well.
