Festo PTC- Push-In L Fitting QBL

  • Standard series for pneumatic tubing with imperial dimensions
  • Pneumatic connection via R, NPT, UNF, metric thread or push-in sleeve
  • PBT and nickel-plated brass
  • Operating media compressed air (vacuum)
  • L-Shaped

Part Number
Model Number
OKCancelClear All
UNF Thread (D1)
Tube OD inch (D2)
OKCancelClear All
533286
QBL-10-32-UNF-5/32-U
10-32
5/32
533287
QBL-10-32-UNF-3/16-U
10-32
3/16
533288
QBL-10-32-UNF-1/4-U
10-32
1/4
Part Number
Model Number
OKCancelClear All
NPT Thread (D1)
OKCancelClear All
Tube OD inch (D2)
OKCancelClear All
Standard Pack
OKCancelClear All
533290
QBL-1/8-5/32-U
1/8
5/32
10
533291
QBL-1/8-3/16-U
1/8
3/16
10
533292
QBL-1/8-1/4-U
1/8
1/4
10
533293
QBL-1/8-5/16-U
1/8
5/16
10
567777
QBL-1/8-3/8-U
1/8
3/8
10
567776
QBL-1/4-5/32-U
1/4
5/32
10
533294
QBL-1/4-3/16-U
1/4
3/16
10
533295
QBL-1/4-1/4-U
1/4
1/4
10
533296
QBL-1/4-5/16-U
1/4
5/16
10
533297
QBL-1/4-3/8-U
1/4
3/8
5
567775
QBL-1/4-1/2-U
1/4
1/2
5
567763
QBL-3/8-3/16-U
3/8
3/16
10
533298
QBL-3/8-1/4-U
3/8
1/4
5
533299
QBL-3/8-5/16-U
3/8
5/16
5
533300
QBL-3/8-3/8-U
3/8
3/8
5
533301
QBL-3/8-1/2-U
3/8
1/2
10
533302
QBL-1/2-3/8-U
1/2
3/8
5
533303
QBL-1/2-1/2-U
1/2
1/2
5

Related Resources

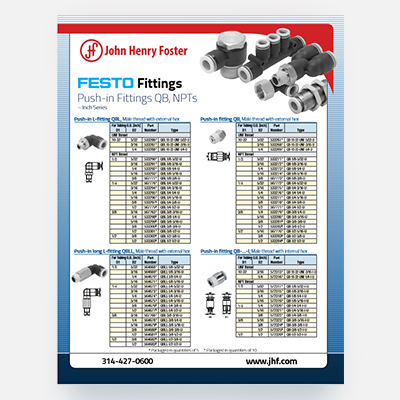

FESTO Fittings QB NPT
