Flow Control

All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.

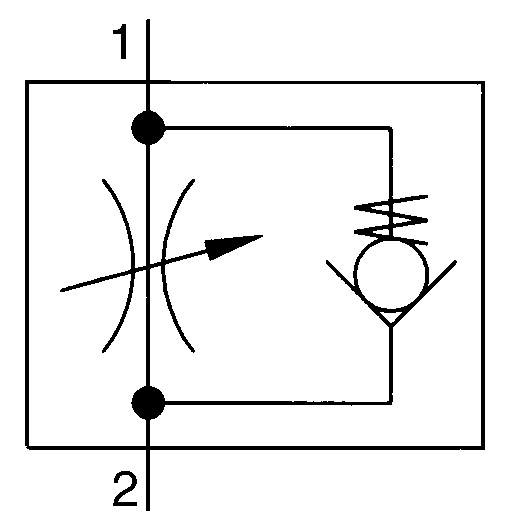

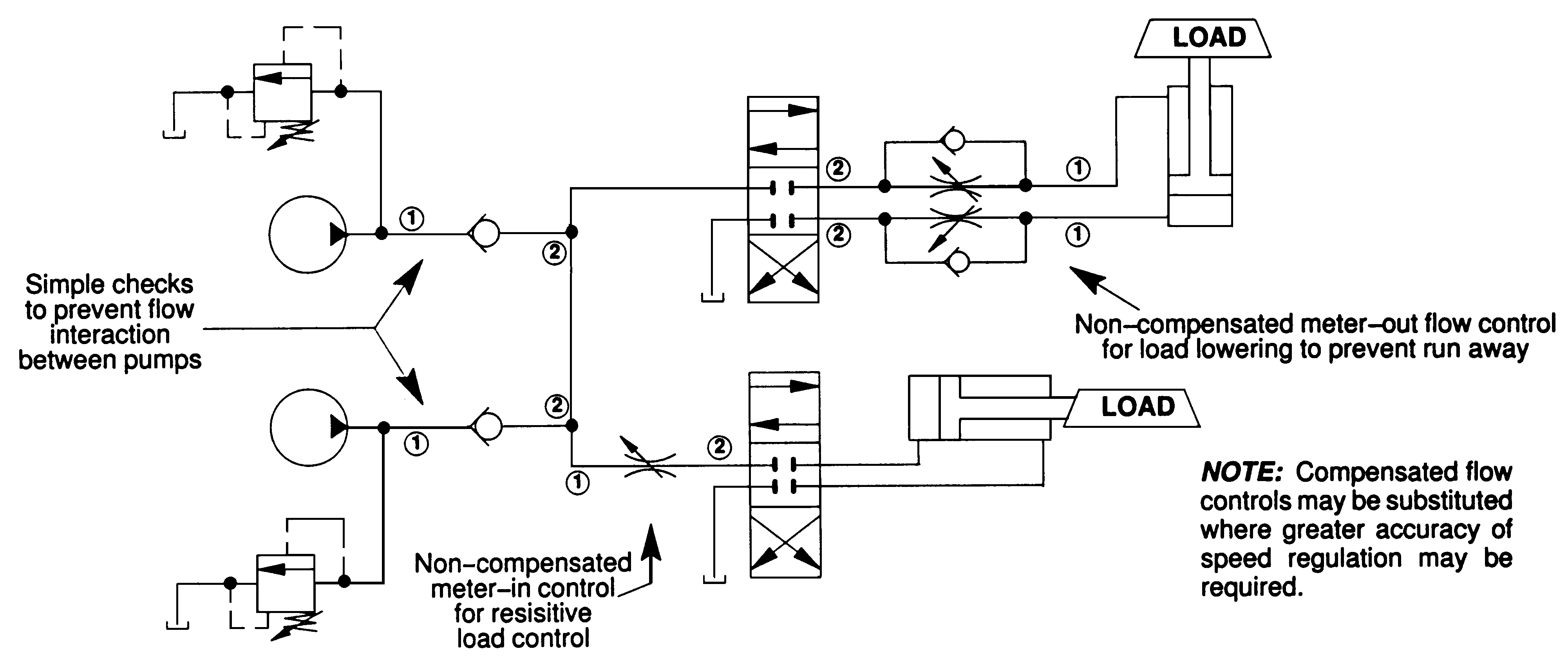

Because needle valves are non-compensating devices, the fixed orifice size will regulate flow through the valve in proportion to the square root of the pressure differential across ports 1 and 2.
The sharp-edged orifice design minimizes flow variations due to viscosity changes.
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.

Part Number
VALVE MATERIAL
OKCancelClear All
PORTS 1 AND 2
OKCancelClear All
RECM. GPM
OKCancelClear All

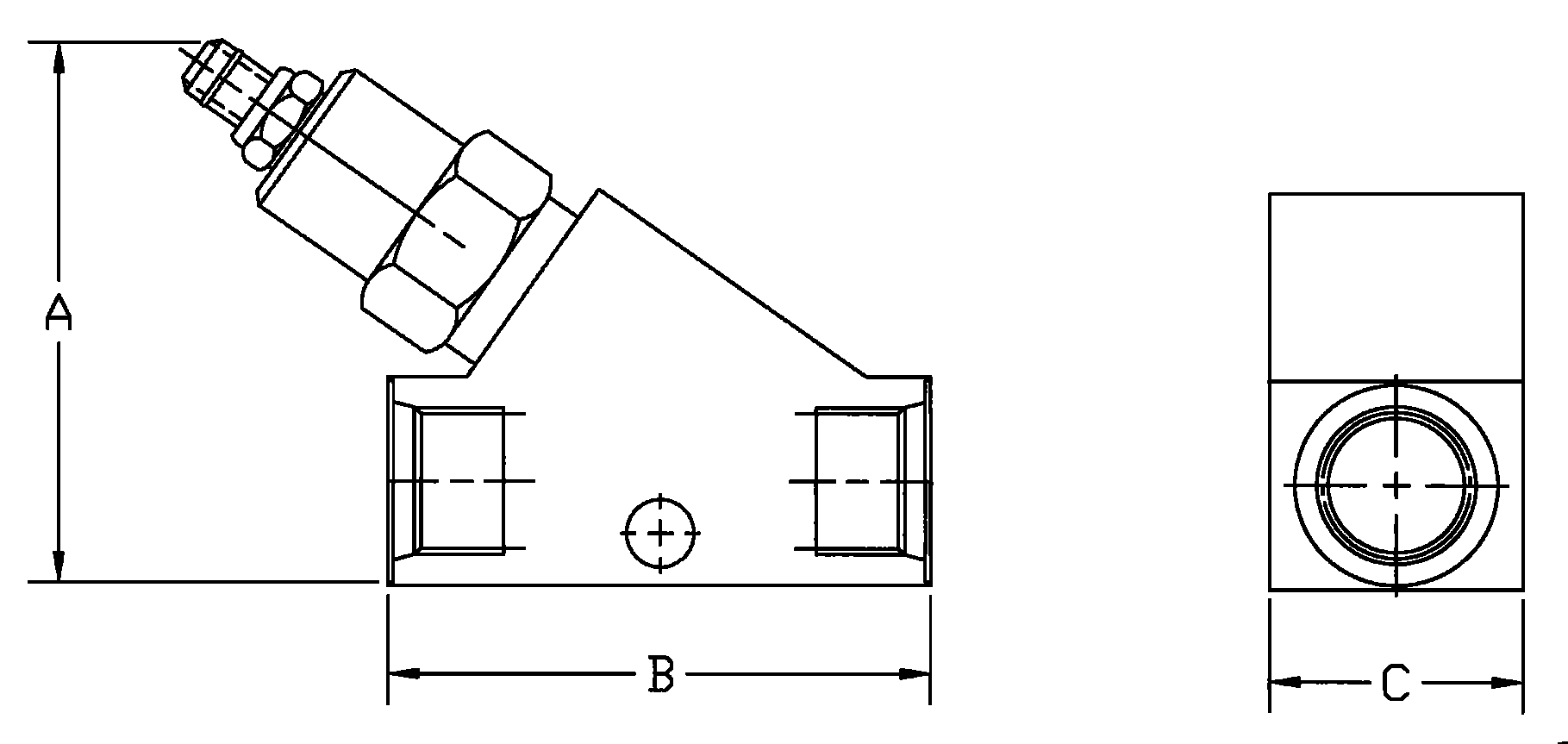

A
OKCancelClear All
B
OKCancelClear All
C
OKCancelClear All
NCCB-LCN-GCB
Aluminum Body
3/8" NPT
9
2.85
2.56
1.19
NCEB-LCN-DCC
Aluminum Body
1/2" NPT
15
3.23
3.25
1.50
NCFB-LCN-ICD
Aluminum Body
3/4" NPT
30
4.72
4.63
2.25
NCFB-LCN-ICE
Aluminum Body
1" NPT
30
4.72
4.63
2.25
NCCB-LCN-GCI
Aluminum Body
6 SAE
9
2.85
2.56
1.19
NCEB-LCN-DCJ
Aluminum Body
8 SAE
15
3.23
3.25
1.50
NCFB-LCN-ICL
Aluminum Body
12 SAE
30
4.72
4.63
2.25
NCFB-LCN-ICM
Aluminum Body
16 SAE
30
4.72
4.63
2.25
NCCB-LCN-GCB/S
Steel Body
3/8" NPT
9
2.85
2.56
1.19
NCEB-LCN-DCC/S
Steel Body
1/2" NPT
15
3.23
3.25
1.50
NCFB-LCN-ICD/S
Steel Body
3/4" NPT
30
4.72
4.63
2.25
NCFB-LCN-ICE/S
Steel Body
1" NPT
30
4.72
4.63
2.25
NCCB-LCN-GCI/S
Steel Body
6 SAE
9
2.85
2.56
1.19
NCEB-LCN-DCJ/S
Steel Body
8 SAE
15
3.23
3.25
1.50
NCFB-LCN-ICL/S
Steel Body
12 SAE
30
4.72
4.63
2.25
NCFB-LCN-ICM/S
Steel Body
16 SAE
30
4.72
4.63
2.25

*3000 psi max. pressure (Aluminum) **5000 psi max. pressure (Steel)
