Foster

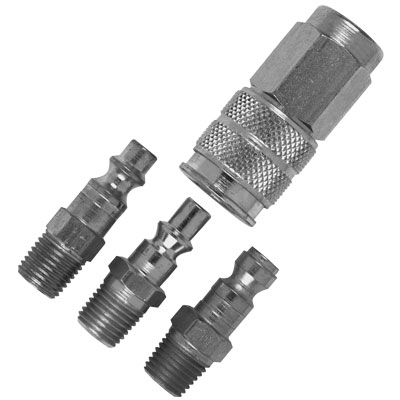

Foster DYNA-CON Universal Couplers

Type: Universal Coupler; One Way Shut-Off
Operation: Automatic Connect
Working Pressure: 150PSI
Features
  • Construction: Steel with zinc clear chromate finish.
  • Seal: Buna-N
  • Working Pressure: 150 PSI (10 bar)
  • Recommended Application: Compressed air
  • Interchangeability:1/4” – (MIL-C-4109), ARO 210, Automotive (Tru-Flate); 3/8” – Industrial Interchange, Automotive (Tru-Flate)
  • *Requires Hose Clamp ** No hose clamp required when using “Push-On” style hose.

Part Number
Connection
OKCancelClear All
Body Size
Notes
OKCancelClear All
11-3
1/4” Female Pipe
1/4"
15-3
3/8” Female Pipe
1/4"
10-3
1/4” Male Pipe
1/4"
14-3
3/8” Male Pipe
1/4"
16-3
1/4” ID Hose Stem*
1/4"
Requires Hose Clamp
17-3
3/8” ID Hose Stem*
1/4"
Requires Hose Clamp
51-3
1/4” ID Push-On Hose Stem**
1/4"
No Hose Clamp Required When Using Push-On Style Hose
71-3
3/8” ID Push-On Hose Stem**
1/4"
No Hose Clamp Required When Using Push-On Style Hose
Part Number
Connection
OKCancelClear All
Body Size
DW340A
1/4” Female Pipe
1/4"
DW360A
3/8” Female Pipe
1/4"
DW341A
1/4” Male Pipe
1/4"
DW361A
3/8” Male Pipe
1/4"
DW342A
1/4” ID Hose Stem*
1/4"
DW362A
3/8” ID Hose Stem*
1/4"
Part Number
Connection
OKCancelClear All
Body Size
DW440A
1/4” Female Pipe
3/8"
DW460A
3/8” Female Pipe
3/8"
DW441A
1/4” Male Pipe
3/8"
DW461A
3/8” Male Pipe
3/8"
DW462A
3/8” ID Hose Stem*
3/8"
Part Number
Connection
OKCancelClear All
Body Size
210-11
1/4” Female Pipe
1/4"
210-10
1/4” Male Pipe
1/4"
210-16
1/4” ID Hose Stem*
1/4"
210-17
3/8” ID Hose Stem*
1/4"
210-51
1/4” ID Push-On Hose Stem**
1/4"
Part Number
Connection
OKCancelClear All
Body Size
Notes
OKCancelClear All
41-4
1/4” Female Pipe
3/8"
43-4
3/8” Female Pipe
3/8"
45-4
1/2” Female Pipe
3/8"
40-4
1/4” Male Pipe
3/8"
42-4
3/8” Male Pipe
3/8"
44-4
1/2” Male Pipe
3/8"
46-4
1/4” ID Hose Stem*
3/8"
Requires Hose Clamp
48-4
3/8” ID Hose Stem*
3/8"
Requires Hose Clamp
49-4
1/2” ID Hose Stem*
3/8"
Requires Hose Clamp
51-4
1/4” ID Push-On Hose Stem**
3/8"
No Hose Clamp Required When Using Push-On Style Hose
71-4
3/8” ID Push-On Hose Stem**
3/8"
No Hose Clamp Required When Using Push-On Style Hose
81-4
1/2” ID Push-On Hose Stem**
3/8"
No Hose Clamp Required When Using Push-On Style Hose
Part Number
Connection
OKCancelClear All
Body Size
Notes
OKCancelClear All
TF41
1/4” Female Pipe
3/8"
TF43
3/8” Female Pipe
3/8"
TF40
1/4” Male Pipe
3/8"
TF42
3/8” Male Pipe
3/8"
TF48
3/8” ID Hose Stem*
3/8"
Requires Hose Clamp
Part Number
Connection
OKCancelClear All
Body Size
Notes
OKCancelClear All
TF11
1/4” Female Pipe
1/4"
TF15
3/8” Female Pipe
1/4"
TF10
1/4” Male Pipe
1/4"
TF14
3/8” Male Pipe
1/4"
TF16
1/4” ID Hose Stem*
1/4"
Requires Hose Clamp
TF17
3/8” ID Hose Stem*
1/4"
Requires Hose Clamp
TF71
3/8” ID Push-On Hose Stem**
1/4"
No Hose Clamp Required When Using Push-On Style Hose
