Danfoss (Weatherhead)

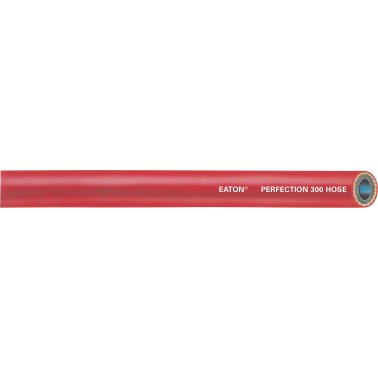

H1776 - Boston General Purpose Air Hose

*Perfection 300 Series*
**Order by the foot or reel. Order unit/price by the foot.
  • Typical Applications: Pneumatic Tools; Convey Oil, Air and Water. Provide Power to Air Operated Equipment.
  • Inner Tube: Nitrile (RMA Class A)
  • Reinforcement: Textile, 1 or 2 braid
  • Cover: Vinyl Nitrile
  • Color: Red
  • Temperature Range: –40°F to +180°F
  • Hose End Options: Z-Series , TTC, Standard Barbed w/ Clamp


Part Number
LENGTH (FT)
OKCancelClear All
BRAID
OKCancelClear All
HOSE I.D. (IN)
OKCancelClear All
HOSE O.D. (IN)
OKCancelClear All
WORK PRES. PSI
OKCancelClear All
HOSE END
OKCancelClear All
H177616-300R
300
2
1
1-7/16
325
Z series, TTC Series, Standard Barb w/ Clamp
H177604-500R
500
2
1/4
19/32
325
Z series, TTC Series, Standard Barb w/ Clamp
H177606-500R
500
2
3/8
23/32
325
Z series, TTC Series, Standard Barb w/ Clamp
H177608-500R
500
2
1/2
7/8
325
Z series, TTC Series, Standard Barb w/ Clamp
H177612-500R
500
2
3/4
1-5/32
325
Z series, TTC Series, Standard Barb w/ Clamp
