Danfoss (Weatherhead)

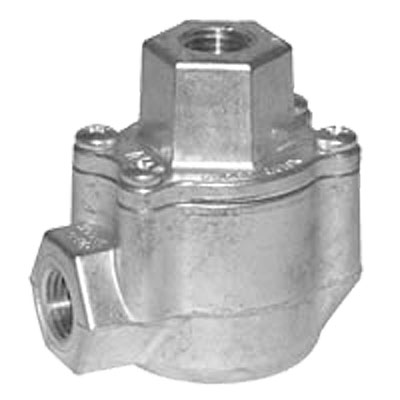

Humphrey Super Quick Exhaust Valves

Media: Compressed Air

Pressure Range: 150 psig maximum Temperature Range: -25 to 180° F Operating Speeds: to 600 CPM
Materials: Zinc and Aluminum Die Cast, Zinc Plated Steel Fasteners Buna-N, Polyurethane
Lubrication: Not required

Part Number
PORT SIZE IN
OKCancelClear All
PORT SIZE OUT
OKCancelClear All
PORT SIZE EXH
OKCancelClear All
Cv
OKCancelClear All
PSI MIN
OKCancelClear All
PSI MAX
OKCancelClear All
AIR FLOW TO ATMOSPHERE: @50 PSIG CFM
OKCancelClear All
AIR FLOW TO ATMOSPHERE: @100 PSIG CFM
OKCancelClear All
SQE1
1/8"
1/8"
1/4"
0.72
4
150
33.5
63.0
SQE2
1/4"
1/4"
1/4"
0.97
4
150
47.0
85.0
QE2
1/4"
1/4"
3/8"
1.44
3
150
65.0
120.0
QE3
3/8"
3/8"
3/8"
1.48
2
150
80.0
155.0
QE4
1/2"
1/2"
3/4"
2.09
1
150
+100.0
+200.0
QE5
3/4"
3/4"
3/4"
4.10
1
150
+100.0
+200.0
8-1A
Mounting Bracket for QE2 and QE3
Mounting Bracket for QE2 and QE4
Mounting Bracket for QE2 and QE5
Mounting Bracket for QE2 and QE6
Mounting Bracket for QE2 and QE7
Mounting Bracket for QE2 and QE8
8-12A
Mounting Bracket for QE4 and QE5
Mounting Bracket for QE4 and QE6
Mounting Bracket for QE4 and QE7
Mounting Bracket for QE4 and QE8
Mounting Bracket for QE4 and QE9
Mounting Bracket for QE4 and QE10

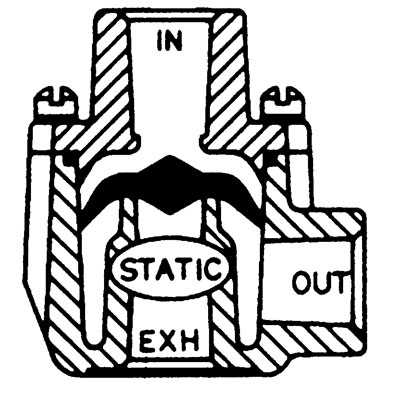

*Always Exhausts Out Of This Port. Add Muffler To Reduce Noise. Plug For Use As Check Valve.

Part Number
DESCRIPTION
OKCancelClear All

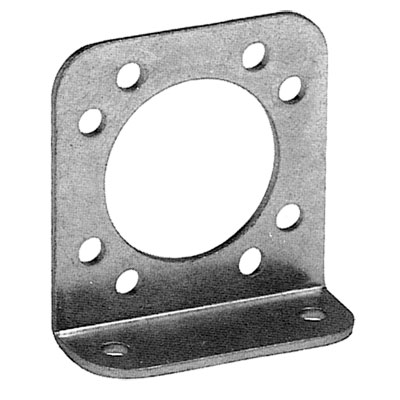

8-1A
For QE2, QE3
8-12
For QE4, QE5
Part Number
USED WITH
OKCancelClear All
SRKSQE
SQE1 & 2
SRKQE
QE1, QE2, QE3
SRKQE45
QE4 & Q35
