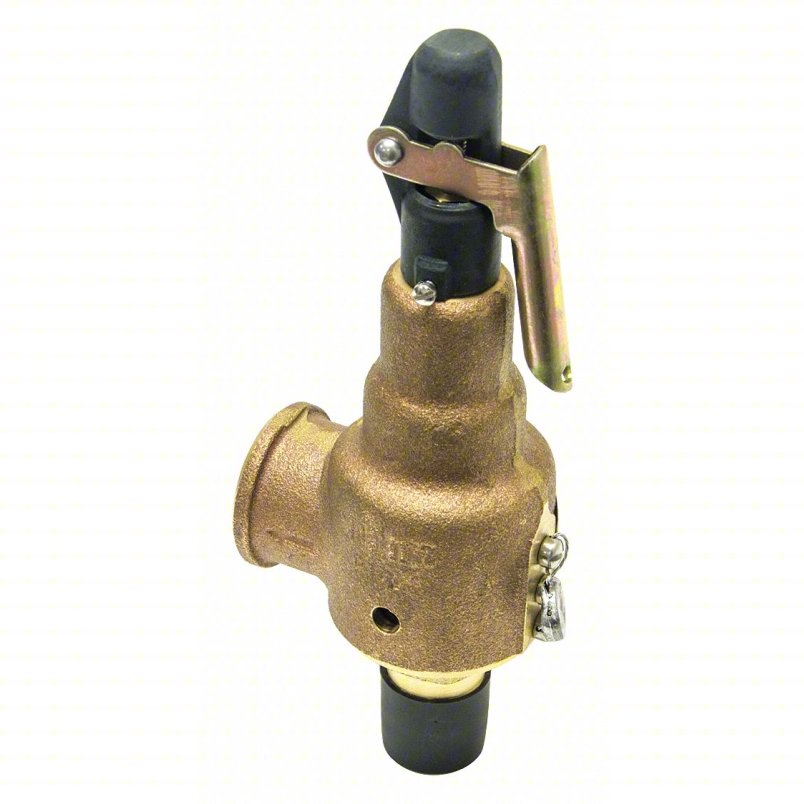

Kunkle Safety Relief Valves

Heavy-duty cast valve housing with wide hex body for easy installation. Precision-lapped seats and dual control rings ensure accurate opening and blowdown control. Features a robust lift lever and tamper-proof, factory-sealed adjustments. Each valve is 100% tested for pressure, blowdown, and leakage.



Part Number
INLET (MPT)
OKCancelClear All
DISCHARGE (FPT)
OKCancelClear All
PRESSURE SETTING (PSI)
OKCancelClear All
AIR FLOW* (SCFM)
OKCancelClear All
6010DDM01-KM0125
3/4"
3/4"
125
296
6010DDM01-KM0135
3/4"
3/4"
135
318
6010DDM01-KM0150
3/4"
3/4"
150
350
6010DDM01-KM0200
3/4"
3/4"
200
457
6010EEM01-KM0125
1"
1
125
529
6010EEM01-KM0135
1"
1
135
567
6010EEM01-KM0150
1"
1
150
625
6010EEM01-KM0200
1"
1
200
816
6010FFM01-KM0125
1-1/4"
1-1/4"
125
828
6010FFM01-KM0135
1-1/4"
1-1/4"
135
888
6010FFM01-KM0150
1-1/4"
1-1/4"
150
978
6010FFM01-KM0200
1-1/4"
1-1/4"
200
1277
6010GGM01-KM0125
1-1/2"
1-1/2"
125
1357
6010GGM01-KM0135
1-1/2"
1-1/2"
135
1455
6010GGM01-KM0150
1-1/2"
1-1/2"
150
1602
6010GGM01-KM0200
1-1/2"
1-1/2"
200
2093
6010HHM01-KM0125
2"
2"
125
2144
6010HHM01-KM0135
2"
2"
135
2267
6010HHM01-KM0150
2"
2"
150
2496
6010HHM01-KM0200
2"
2"
200
3260
6010JJM01-KM0125
2-1/2"
2-1/2"
125
3464
6010JJM01-KM0135
2-1/2"
2-1/2"
135
3714
6010JJM01-KM0150
2-1/2"
2-1/2"
150
4090
6010JJM01-KM0200
2-1/2"
2-1/2"
200
5341

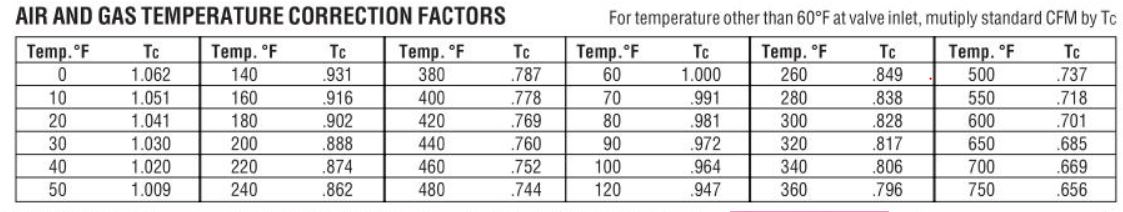

*For Inlet Air Temp. other than 60°F, see table for correction factor (Image 2)
