Danfoss (Weatherhead)

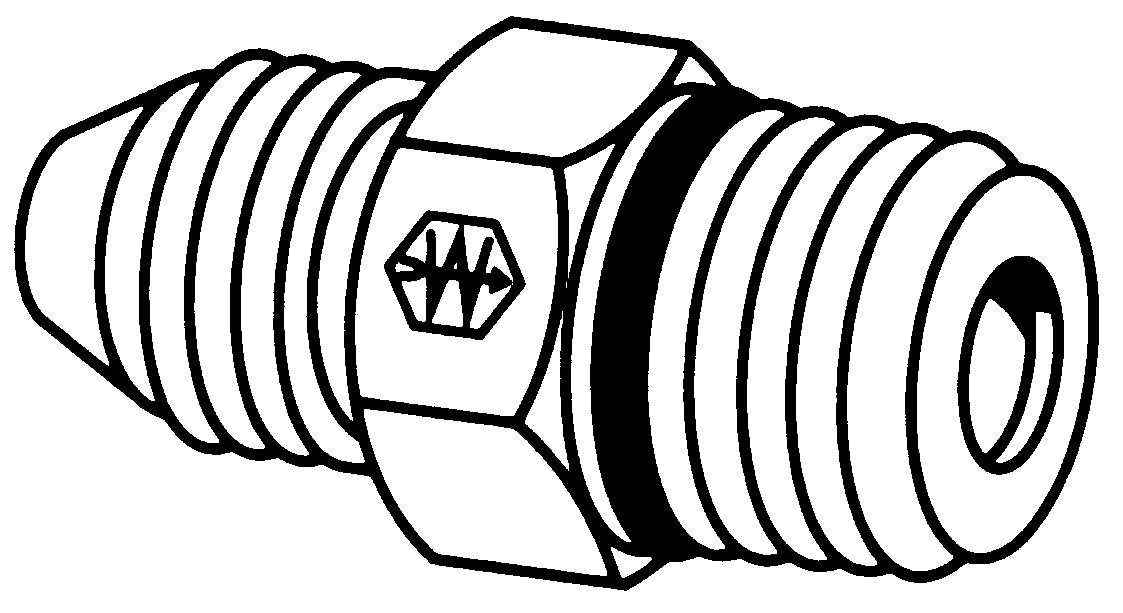

Male Connector Straight Thread O-Ring To Male JIC - Steel

Typical Application: Pressure hydraulic systems

Sealing Method: Performed by an elastomeric O-ring


Part Number
TUBE O.D.
OKCancelClear All
PORT SIZE
OKCancelClear All

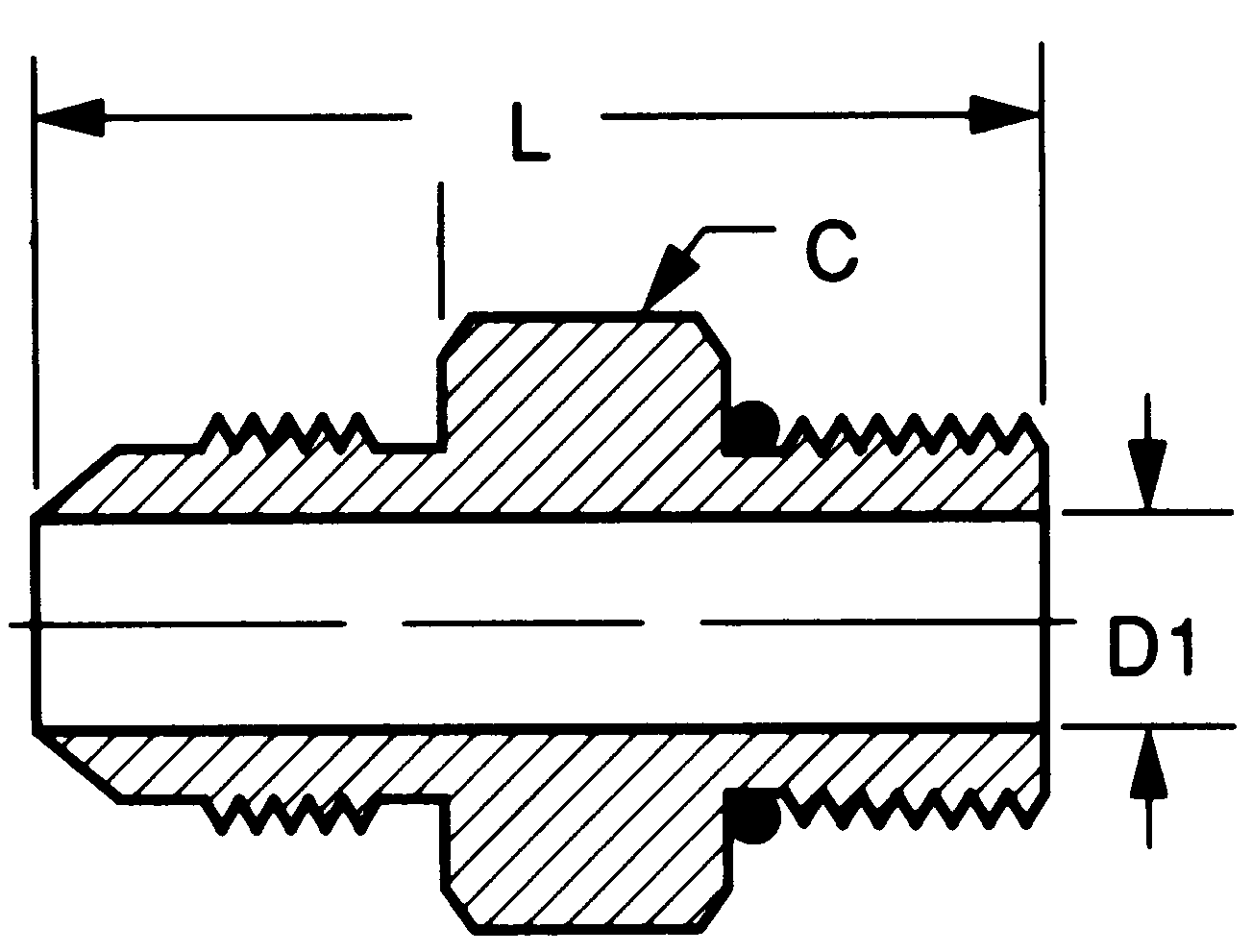

HEX C
OKCancelClear All
D1 OPT.
OKCancelClear All
L
OKCancelClear All
C5315X2
1/8
1/8
7/16
.062
1.06
C5315X3
3/16
3/16
1/2
.125
1.10
C5315X4
1/4
1/4
9/16
.172
1.23
C5315X4X5
1/4
5/16
5/8
.243
1.23
C5315X4X6
1/4
3/8
11/16
.297
1.29
C5315X4X8
1/4
1/2
7/8
.391
1.37
C5315X5X4
5/16
1/4
5/8
.172
1.23
C5315X5
5/16
5/16
5/8
.234
1.23
C5315X5X6
5/16
3/8
11/16
.297
1.29
C5315X6X4
3/8
1/4
11/16
.172
1.27
C5315X6X5
3/8
5/16
11/16
.234
1.27
C5315X6
3/8
3/8
11/16
.297
1.30
C5315X6X8
3/8
1/2
7/8
.391
1.38
C5315X6X10
3/8
5/8
1
.484
1.50
C5315X8X6
1/2
3/8
7/8
.297
1.44
C5315X8
1/2
1/2
7/8
.391
1.48
C5315X8X10
1/2
5/8
1
.484
1.60
C5315X8X12
1/2
3/4
1-1/4
.609
1.76
C5315X10X8
5/8
1/2
1
.391
1.64
C5315X10
5/8
5/8
1
.484
1.70
C5315X10X12
5/8
3/4
1-1/4
.609
1.86
C5315X10X16
5/8
1
1-1/2
.844
1.89
C5315X12X8
3/4
1/2
1-1/4
.391
1.94
C5315X12X10
3/4
5/8
1-1/4
.484
1.88
C5315X12
3/4
3/4
1-1/4
.609
1.97
C5315X12X14
3/4
7/8
1-3/8
.718
1.96
C5315X12X16
3/4
1
1-1/2
.844
1.99
C5315X12X20
3/4
1-1/4
1-7/8
1.078
2.08
C5315X14
7/8
7/8
1-3/8
.719
1.99
C5315X16X10
1
5/8
1-1/2
.484
2.07
C5315X16X12
1
3/4
1-1/2
.609
2.04
C5315X16
1
1
1-1/2
.844
2.04
C5315X16X20
1
1-1/4
1-7/8
1.078
2.12
C5315X20X16
1-1/4
1
1-7/8
.844
2.33
C5315X20
1-1/4
1-1/4
1-7/8
1.078
2.17
C5315X20X24
1-1/4
1-1/2
2-1/8
1.312
2.24
C5315X24X20
1-1/2
1-1/4
2-1/8
1.078
2.53
C5315X24
1-1/2
1-1/2
2-1/8
1.312
2.37
C5315X24X32
1-1/2
2
2-3/4
1.781
2.53
C5315X32X24
2
1-1/2
2-3/4
1.312
2.81
C5315X32
2
2
2-3/4
1.33
2.78
