Danfoss (Weatherhead)

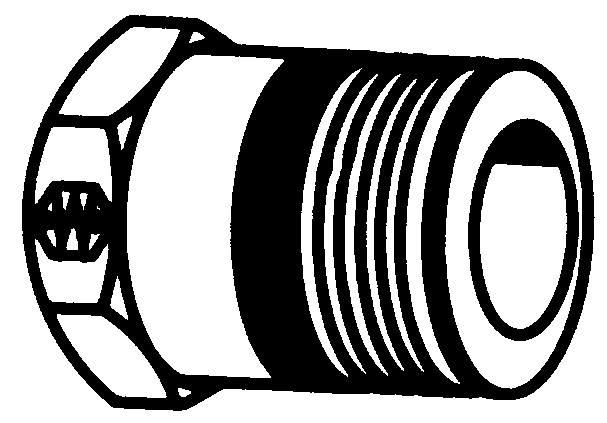

Male Straight Thread O-Ring To Female Pipe Adapter- Steel

Typical Application: Pressure hydraulic systems

Sealing Method: Performed by an elastomeric O-ring


Part Number
MALE PORT SIZE
OKCancelClear All
FEM. PIPE THREAD
OKCancelClear All

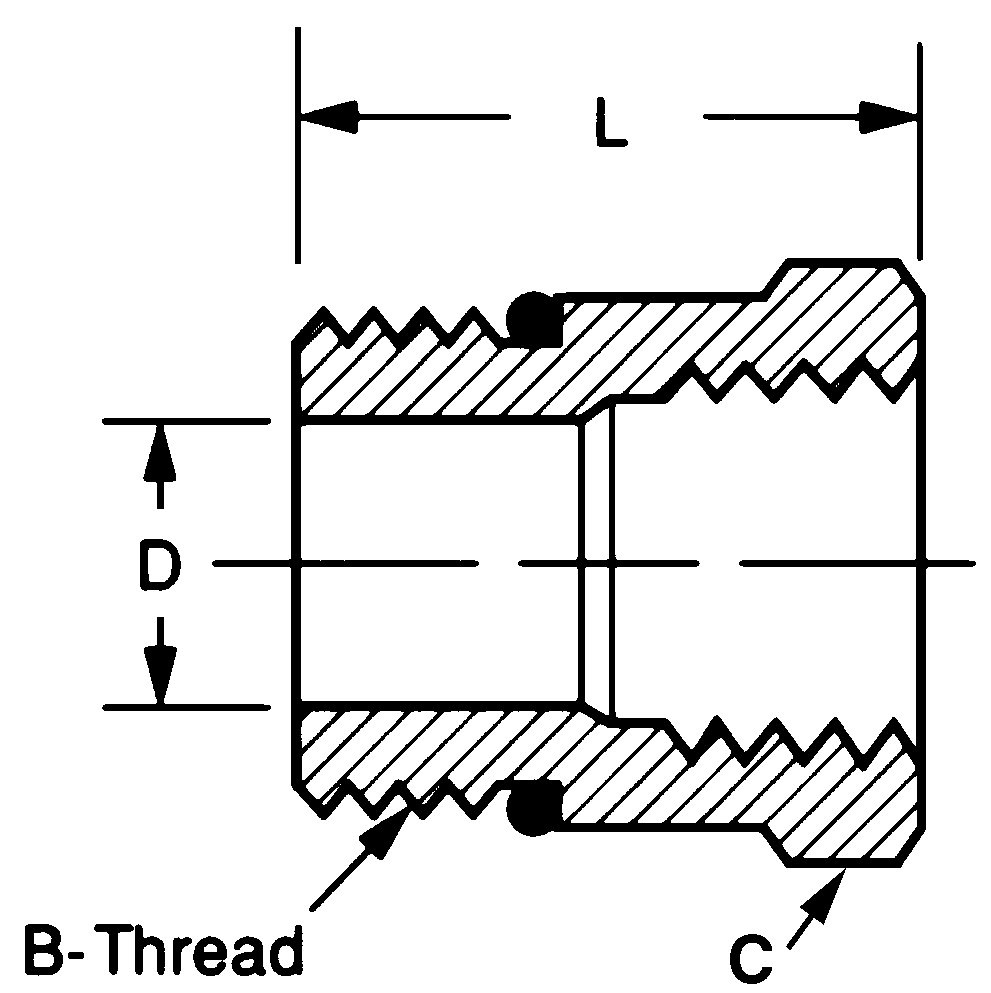

STRAIGHT THREAD B
OKCancelClear All
D
OKCancelClear All
L
OKCancelClear All
C3269X4X2
1/4
1/8
7/16-20
.172
.97
C3269X4X4
1/4
1/4
7/16-20
.172
1.16
C3269X5X2
5/16
1/8
1/2-20
.234
.94
C3269X6X4
3/8
1/4
9/16-18
.297
1.09
C3269X6X6
3/8
3/8
9/16-18
.281
1.30
C3269X6X8
3/8
1/2
9/16-18
.281
1.44
C3269X8X4
1/2
1/4
3/4-16
.421
1.06
C3269X8X6
1/2
3/8
3/4-16
.421
1.22
C3269X8X8
1/2
1/2
3/4-16
.421
1.50
C3269X10X4
5/8
1/4
7/8-14
.422
.81
C3269X10X6
5/8
3/8
7/8-14
.500
1.25
C3269X10X8
5/8
1/2
7/8-14
.500
1.50
C3269X10X12
5/8
3/4
7/8-14
.500
1.62
C3269X12X8
3/4
1/2
1-1/16-12
.688
1.34
C3269X12X12
3/4
3/4
1-1/16-12
.656
1.66
C3269X14X12
7/8
3/4
1-3/16-12
.718
1.63
C3269X16X8
1
1/2
1-5/16-12
.688
1.00
C3269X16X12
1
3/4
1-5/16-12
.876
1.50
C3269X16X16
1
1
1-5/16-12
.876
1.88
C3269X20X16
1-1/4
1
1-5/8-12
1.080
1.00
C3269X20X20
1-1/4
1-1/4
1-5/8-12
1.080
1.94
C3269X24X24
1-1/2
1-1/2
1-7/8-12
1.312
1.88
C3269X32X32
2
2
2-1/2-12
1.781
1.91
