Danfoss (Weatherhead)

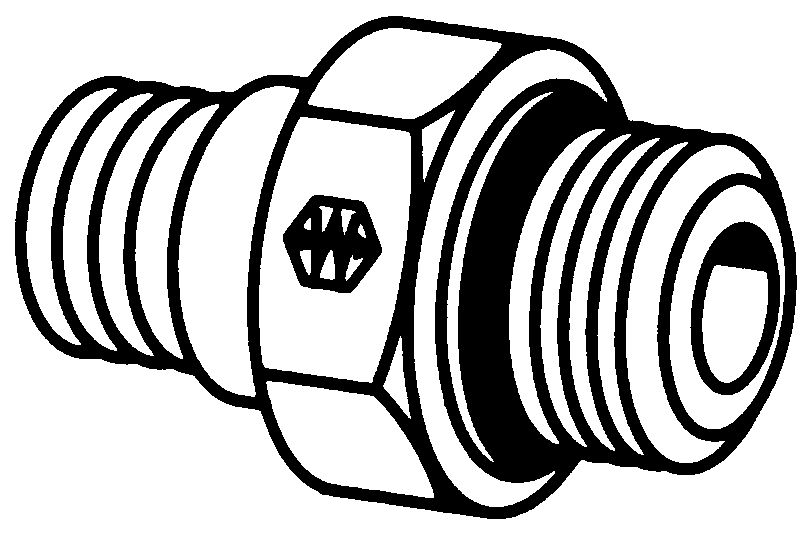

Male Straight Thread O-Ring To Male Pipe Adapter - Steel

Typical Application: Pressure hydraulic systems

Sealing Method: Performed by an elastomeric O-ring


Part Number
MALE PORT SIZE
OKCancelClear All
MALE PIPE SIZE
OKCancelClear All

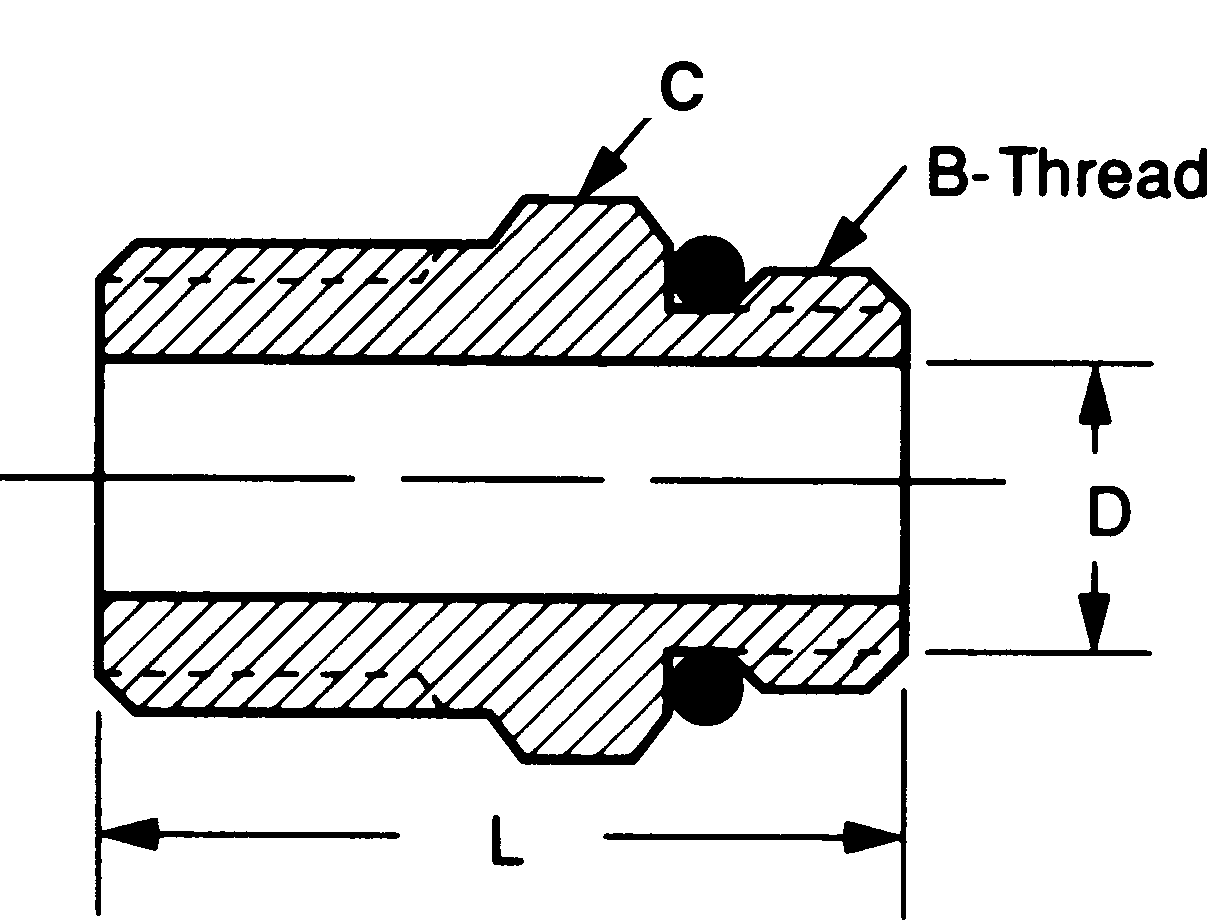

STRAIGHT THREAD B
OKCancelClear All
D
OKCancelClear All
L
OKCancelClear All
C3249X4X2
1/4
1/8
7/16-20
.172
1.05
C3249X6X4
3/8
1/4
9/16-18
.281
1.30
C3249X8X6
1/2
3/8
3/4-16
.391
1.36
C3249X8X8
1/2
1/2
3/4-16
.391
1.55
C3249X10X8
5/8
1/2
7/8-14
.434
1.69
C3249X12X12
3/4
3/4
1-1/16-12
.609
1.73
C3249X16X16
1
1
1-5/16-12
.844
2.06
C3249X20X20
1-1/4
1-1/4
1-5/8-12
1.078
2.17
C3249X24X24
1-1/2
1-1/2
1-7/8-12
1.312
2.26
C3249X32X32
2
2
2-1/2-12
1.781
2.47
