Danfoss (Weatherhead)

Male Straight Thread To Female Pipe Swivel - Steel

Typical Application: Pressure hydraulic systems

Sealing Method: Performed by an elastomeric O-ring


Part Number
STRAIGHT THREAD
OKCancelClear All
NPSM SWIVEL NUT
OKCancelClear All

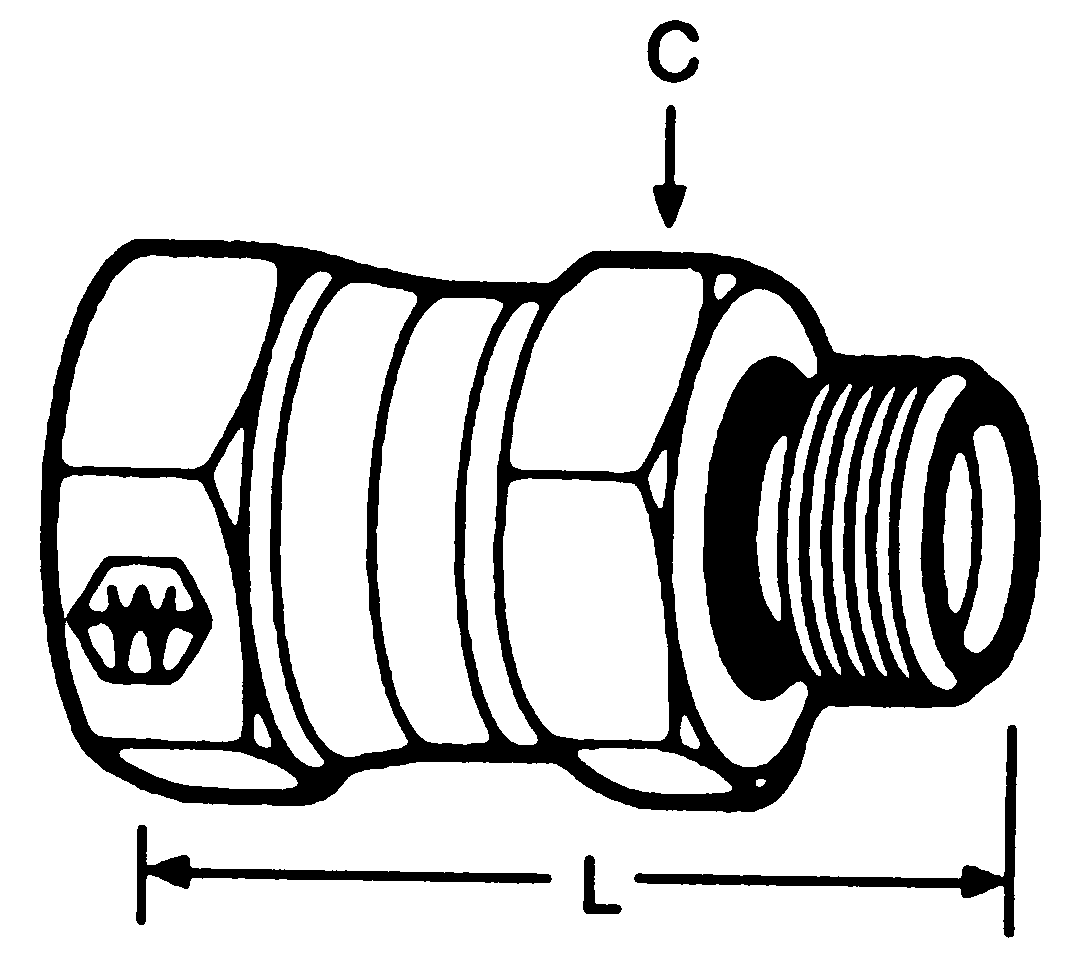

HEX C
OKCancelClear All
L
OKCancelClear All
9315X4X4
7/16-20
1/4-18
9/16
.970
9315X4X6
7/16-20
3/8-18
5/8
1.060
9315X5X4
1/2-20
1/4-18
5/8
1.109
9315X6X4
9/16-18
1/4-18
11/16
1.171
9315X6X6
9/16-18
3/8-18
11/16
1.090
9315X6X8
9/16-18
1/2-14
13/16
1.210
9315X8X4
3/4-16
1/4-18
7/8
1.234
9315X8X6
3/4-16
3/8-18
7/8
1.200
9315X8X8
3/4-16
1/2-14
7/8
1.260
9315X8X12
3/4-16
3/4-14
1
1.406
9315X10X6
7/8-14
3/8-18
1
1.375
9315X10X8
7/8-14
1/2-14
1
1.400
9315X10X12
7/8-14
3/4-14
1
1.546
9315X12X8
1-1/16-12
1/2-14
1-1/4
1.453
9315X12X12
1-1/16-12
3/4-14
1-1/4
1.600
9315X14X12
1-3/16-12
3/4-14
1-3/8
1.703
9315X16X12
1-5/16-12
3/4-14
1-1/2
1.734
9315X16X16
1-5/16-12
1-11-1/2
1-1/2
1.710
9315X20X16
1-5/8-12
1-11-1/2
1-7/8
1.828
9315X20X20
1-5/8-12
1-1/4-11-1/2
1-7/8
1.890
9315X24X24
1-7/8-12
1-1/2-11-1/2
2-1/8
1.953
9315X32X32
2-1/2-12
2-11-1/2
2-3/4
2.156

Ref. SAE No. 140157
