Bosch Rexroth, Sun

Modular Valves D03 [NG6]

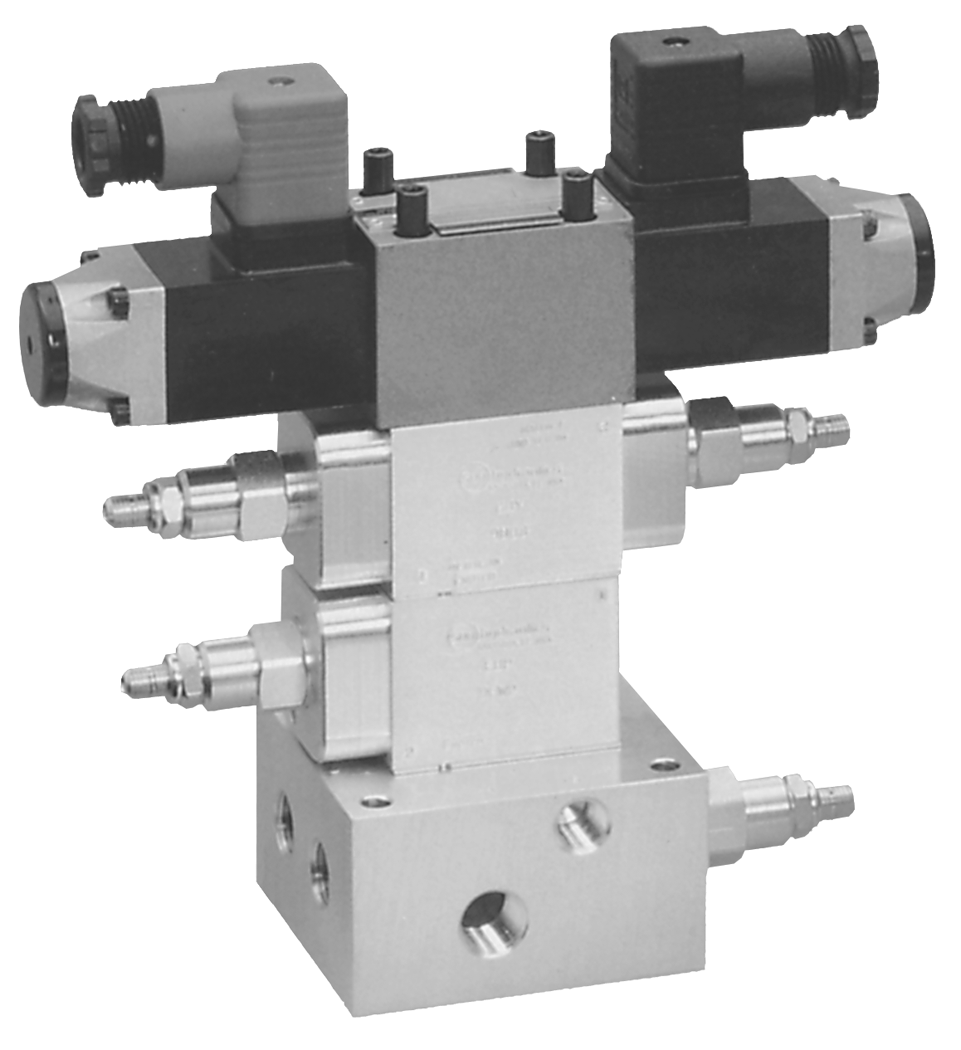

With modular valves, circuits are easily built by spacing them between the directional valve and the subplate. No piping is required which saves space and reduces the time and work required to build the circuit. This saves money and there are no connections to leak. The circuit can be easily changed by adding or removing modules as needed.

Part Number
VALVE TYPE
OKCancelClear All
VALVE FUNCTION
OKCancelClear All
ADJUSTMENT RANGE
OKCancelClear All
BODY HEIGHT
OKCancelClear All
RDDA-LBN-FBP
Relief Valve
Pressure to Tank
300 to 1500 psi
1.7"
RDDA-LAN-FBP
Relief Valve
Pressure to Tank
500 to 3000 psi
1.7"
Relief Valve
Pressure to Tank
1000 to 5000 psi
1.7"
RDDA-LBN-FBY
Relief Valve
Crossport: A to B; B to A
300 to 1500 psi
1.7"
RDDA-LAN-FBY
Relief Valve
Crossport: A to B; B to A
500 to 3000 psi
1.7"
Relief Valve
Crossport: A to B; B to A
1000 to 5000 psi
1.7"
PPDB-LQN-EBP
Reducing/Relieving
Reduction on P
60 to 400 psi
1.7"
PPDB-LBN-EBP
Reducing/Relieving
Reduction on P
50 to 1500 psi
1.7"
PPDB-LAN-EBP
Reducing/Relieving
Reduction on P
100 to 3000 psi
1.7"
Reducing/Relieving
Reduction on P
150 to 4500 psi
1.7"
PPDB-LQN-EBA
Reducing/Relieving
Reduction on A
60 to 400 psi
1.7"
PPDB-LBN-EBA
Reducing/Relieving
Reduction on A
50 to 1500 psi
1.7"
PPDB-LAN-EBA
Reducing/Relieving
Reduction on A
100 to 3000 psi
1.7"
Reducing/Relieving
Reduction on A
150 to 4500 psi
1.7"
PPDB-LQN-EBA
Reducing/Relieving
Reduction on B
60 to 400 psi
1.7"
PPDB-LBN-EBA
Reducing/Relieving
Reduction on B
50 to 1500 psi
1.7"
PPDB-LAN-EBA
Reducing/Relieving
Reduction on B
100 to 3000 psi
1.7"
Reducing/Relieving
Reduction on B
150 to 4500 psi
1.7"
FDBA-LAN-GBY**
Flow Control-Pres. Comp.*
Meter Out on A & B
1.7"
FDBA-LAN-GBY**
Flow Control-Pres. Comp.*
Meter In on A & B
1.7"
FDBA-LAN-GBA**
Flow Control-Pres. Comp.*
Meter Out on A
1.7"
FDBA-LAN-GBA**
Flow Control-Pres. Comp.*
Meter in on A
1.7"
FDBA-LAN-GBA**
Flow Control-Pres. Comp.*
Meter Out on B
1.7"
FDBA-LAN-GBA**
Flow Control-Pres. Comp.*
Meter In on B
1.7"
NCCB-LCN-GBY**
Flow Control-Standard*
Meter Out on A & B
1.7"
NCCB-LCN-GBY**
Flow Control-Standard*
Meter In on A & B
1.7"
NCCB-LAN-GBA**
Flow Control-Standard*
Meter Out on A
1.7"
NCCB-LAN-GBA**
Flow Control-Standard*
Meter in on A
1.7"
NCCB-LAN-GBA**
Flow Control-Standard*
Meter Out on B
1.7"
NCCB-LAN-GBA**
Flow Control-Standard*
Meter In on B
1.7"
NFCC-LCN-GBY**
Needle Valve
Meter Out on A & B
1.7"
NFCC-LCN-GBY**
Needle Valve
Meter In on A & B
1.7"
NFCC-LCN-GBA**
Needle Valve
Meter Out on A
1.7"
NFCC-LCN-GBA**
Needle Valve
Meter in on A
1.7"
NFCC-LCN-GBA**
Needle Valve
Meter Out on B
1.7"
NFCC-LCN-GBA**
Needle Valve
Meter In on B
1.7"
NFCC-LCN-GBP**
Needle Valve
Meter In on P
1.7"
NFCC-LCN-GBP**
Needle Valve
Meter Out on T
1.7"
CKCB-XCN-EBY
Pilot Operated Check
On A & B, Cross Piloted
3:1 Pilot Ratio
1.7"
CKCB-XCN-EBA**
Pilot Operated Check
In Line A, pilot from B
3:1 Pilot Ratio
1.7"
CKCB-XCN-EBA**
Pilot Operated Check
In Line B, pilot from A
3:1 Pilot Ratio
1.7"
CBCA-LHN-EBY
Counterbalance Valve*
On A & B, Cross Piloted
3:1 Pilot Ratio
1.7"
CBCA-LHN-EBA**
Counterbalance Valve*
In Line A, pilot from B
3:1 Pilot Ratio
1.7"
CBCA-LHN-EBA**
Counterbalance Valve*
In Line B, pilot from A
3:1 Pilot Ratio
1.7"
RSDC-LAN-JBY
Sequence Valve
In to P
100-3000
1.18"
Sequence Valve
In to P
150-4500 PSI
1.18"

*With reverse flow checks **Refer to mounting instructions on valve body for proper orientation when installing.

Part Number
VALVE TYPE
OKCancelClear All
VALVE FUNCTION
OKCancelClear All
ADJUSTMENT RANGE
OKCancelClear All
BODY HEIGHT
OKCancelClear All
RDDA-LBN-FBP/S
Relief Valve
Pressure to Tank
300 to 1500 psi
1.7"
RDDA-LAN-FBP/S
Relief Valve
Pressure to Tank
500 to 3000 psi
1.7"
RDDA-LCN-FBP/S
Relief Valve
Pressure to Tank
1000 to 5000 psi
1.7"
RDDA-LBN-FBY/S
Relief Valve
Crossport: A to B; B to A
300 to 1500 psi
1.7"
RDDA-LAN-FBY/S
Relief Valve
Crossport: A to B; B to A
500 to 3000 psi
1.7"
RDDA-LCN-FBY/S
Relief Valve
Crossport: A to B; B to A
1000 to 5000 psi
1.7"
PPDB-LQN-EBP/S
Reducing/Relieving
Reduction on P
60 to 400 psi
1.7"
PPDB-LBN-EBP/S
Reducing/Relieving
Reduction on P
50 to 1500 psi
1.7"
PPDB-LAN-EBP/S
Reducing/Relieving
Reduction on P
100 to 3000 psi
1.7"
PPDB-LWN-EBP/S
Reducing/Relieving
Reduction on P
150 to 4500 psi
1.7"
PPDB-LQN-EBA/S
Reducing/Relieving
Reduction on A
60 to 400 psi
1.7"
PPDB-LBN-EBA/S
Reducing/Relieving
Reduction on A
50 to 1500 psi
1.7"
PPDB-LAN-EBA/S
Reducing/Relieving
Reduction on A
100 to 3000 psi
1.7"
PPDB-LWN-EBA/S
Reducing/Relieving
Reduction on A
150 to 4500 psi
1.7"
PPDB-LQN-EBA/S
Reducing/Relieving
Reduction on B
60 to 400 psi
1.7"
PPDB-LBN-EBA/S
Reducing/Relieving
Reduction on B
50 to 1500 psi
1.7"
PPDB-LAN-EBA/S
Reducing/Relieving
Reduction on B
100 to 3000 psi
1.7"
PPDB-LWN-EBA/S
Reducing/Relieving
Reduction on B
150 to 4500 psi
1.7"
FDBA-LAN-GBY/S**
Flow Control-Pres. Comp.*
Meter Out on A & B
1.7"
FDBA-LAN-GBY/S**
Flow Control-Pres. Comp.*
Meter In on A & B
1.7"
FDBA-LAN-GBA/S**
Flow Control-Pres. Comp.*
Meter Out on A
1.7"
FDBA-LAN-GBA/S**
Flow Control-Pres. Comp.*
Meter in on A
1.7"
FDBA-LAN-GBA/S**
Flow Control-Pres. Comp.*
Meter Out on B
1.7"
FDBA-LAN-GBA/S**
Flow Control-Pres. Comp.*
Meter In on B
1.7"
NCCB-LCN-GBY/S**
Flow Control-Standard*
Meter Out on A & B
1.7"
NCCB-LCN-GBY/S**
Flow Control-Standard*
Meter In on A & B
1.7"
NCCB-LAN-GBA/S**
Flow Control-Standard*
Meter Out on A
1.7"
NCCB-LAN-GBA/S**
Flow Control-Standard*
Meter in on A
1.7"
NCCB-LAN-GBA/S**
Flow Control-Standard*
Meter Out on B
1.7"
NCCB-LAN-GBA/S**
Flow Control-Standard*
Meter In on B
1.7"
NFCC-LCN-GBY/S**
Needle Valve
Meter Out on A & B
1.7"
NFCC-LCN-GBY/S**
Needle Valve
Meter In on A & B
1.7"
NFCC-LCN-GBA/S**
Needle Valve
Meter Out on A
1.7"
NFCC-LCN-GBA/S**
Needle Valve
Meter in on A
1.7"
NFCC-LCN-GBA/S**
Needle Valve
Meter Out on B
1.7"
NFCC-LCN-GBA/S**
Needle Valve
Meter In on B
1.7"
NFCC-LCN-GBP/S**
Needle Valve
Meter In on P
1.7"
NFCC-LCN-GBP/S**
Needle Valve
Meter Out on T
1.7"
CKCB-XCN-EBY/S
Pilot Operated Check
On A & B, Cross Piloted
3:1 Pilot Ratio
1.7"
CKCB-XCN-EBA/S**
Pilot Operated Check
In Line A, pilot from B
3:1 Pilot Ratio
1.7"
CKCB-XCN-EBA/S**
Pilot Operated Check
In Line B, pilot from A
3:1 Pilot Ratio
1.7"
CBCA-LHN-EBY/S
Counterbalance Valve*
On A & B, Cross Piloted
3:1 Pilot Ratio
1.7"
CBCA-LHN-EBA/S**
Counterbalance Valve*
In Line A, pilot from B
3:1 Pilot Ratio
1.7"
CBCA-LHN-EBA/S**
Counterbalance Valve*
In Line B, pilot from A
3:1 Pilot Ratio
1.7"
RSDC-LAN-JBY/S
Sequence Valve
In to P
100-3000
1.18"
RSDC-LWN-JBY/S
Sequence Valve
In to P
150-4500 PSI
1.18"

*With reverse flow checks **Refer to mounting instructions on valve body for proper orientation when installing.

Part Number
DESCRIPTION
OKCancelClear All
R978833365
Valve only
J-302
Valve + 1 module (1.57")
J-346
Valve + 2 modules (1.57")
R978887918
Valve + 3 modules (1.57")
J-302
Valve + 1 module (1.70")
J-343
Valve + 2 modules (1.70")
J-343
Valve + 1 (1.57") and 1 (1.70") modules
Part Number
DESCRIPTION
OKCancelClear All
992-011
4- 10-24 studs (7" long) and 4 stud nuts
992-012
4- 10-24 studs (12" long) and 4 stud nuts
992-013
10- 10-24 studs (36" long) and 50 stud nuts

* To determine proper stud length, Add 1.65” + total of module heights. Cut to siz
