Thermal Transfer

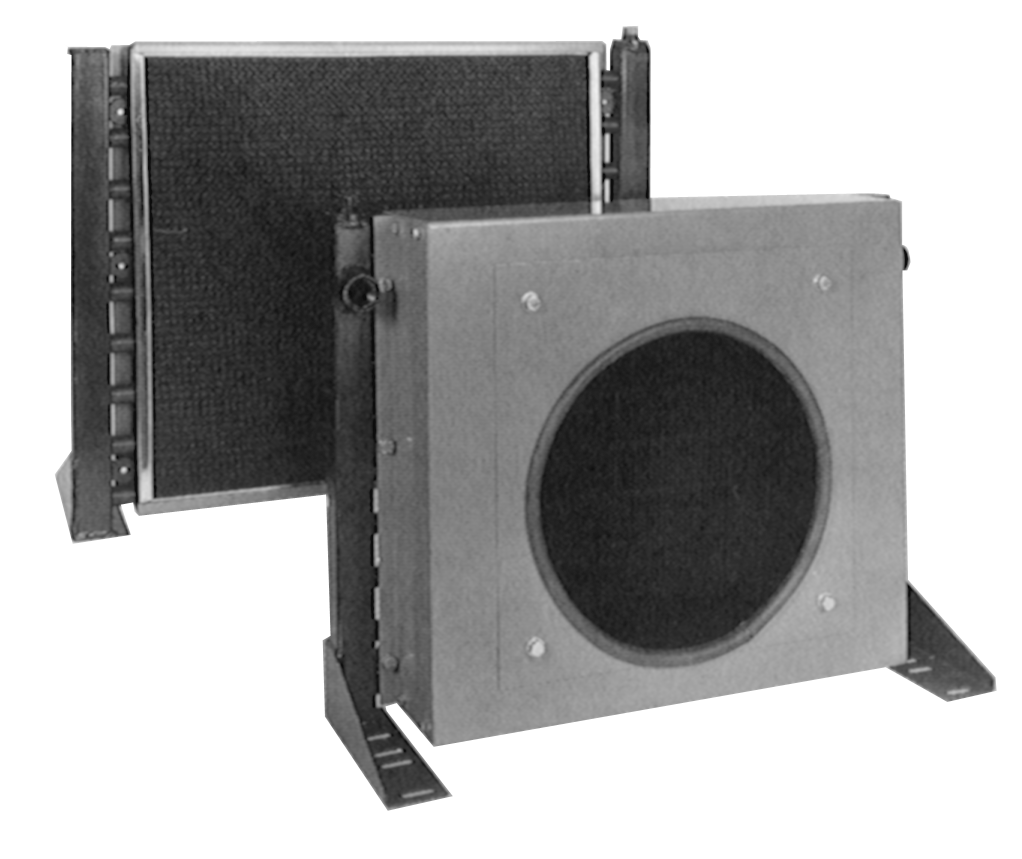

Rear Mount Hydraulic Air Cooler
Low cost, compact, efficient,
one pass case drain coolers
designed for mounting on a
wide selection of TEFC motors.
Copper tubes/aluminum
fin cooling coils.
Steel cabinet with
baked enamel finish.
Maximum operating pressure: 300 PSI
Maximum operating temperature: 350 F
Sizing a Hydraulic Oil Cooler
1 - Determine the system oil flow (GPM).
2 - Size the cooler to remove approximately 30% of input horsepower.
