Anchor Flange

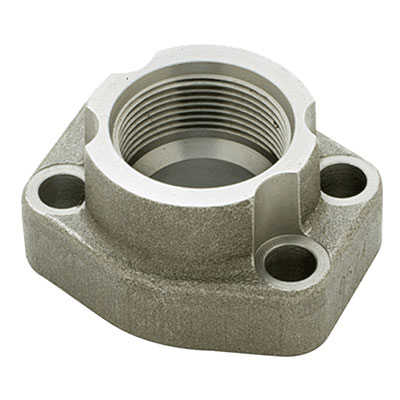

SAE O-Ring Thread Anchor Flange Adapters

Ensure secure, leak-free connections between SAE O-ring boss (ORB) threads and flange ports with high-performance SAE O-ring thread flange adapters. Engineered for high-pressure hydraulic systems, these adapters provide superior sealing, vibration resistance, and compatibility with standard SAE J514 and ISO 6162 flange interfaces. Ideal for mobile hydraulics, industrial equipment, and fluid transfer applications.

Part Number
Size
OKCancelClear All
Pressure Rating
OKCancelClear All
Bolt Torque [lb-in]
OKCancelClear All
W46-8-8U
1/2”
5000
175-225
W46-12-12U
3/4”
5000
250-350
W46-16-16U
1”
5000
325-425
W46-20-20U
1-1/4”
4000
425-500
W46-24-24U
1-1/2”
3000
550-700

Flange adaptors include flange adaptor, 4-hex bolts with lockwashers and Buna-N O-ring

Part Number
Size
OKCancelClear All
Pressure Rating
Bolt Torque [lb-in]
OKCancelClear All
W48-8-8U
1/2”
6000
-
W48-12-12U
3/4”
6000
300-400
W48-16-16U
1”
6000
500-600
W48-20-20U
1-1/4”
6000
750-900
W48-24-24U
1-1/2”
6000
1400-1600
W48-32-32U
2”
6000
2400-2600

Flange adaptors include flange adaptor, 4-hex bolts with lockwashers and Buna-N O-ring
