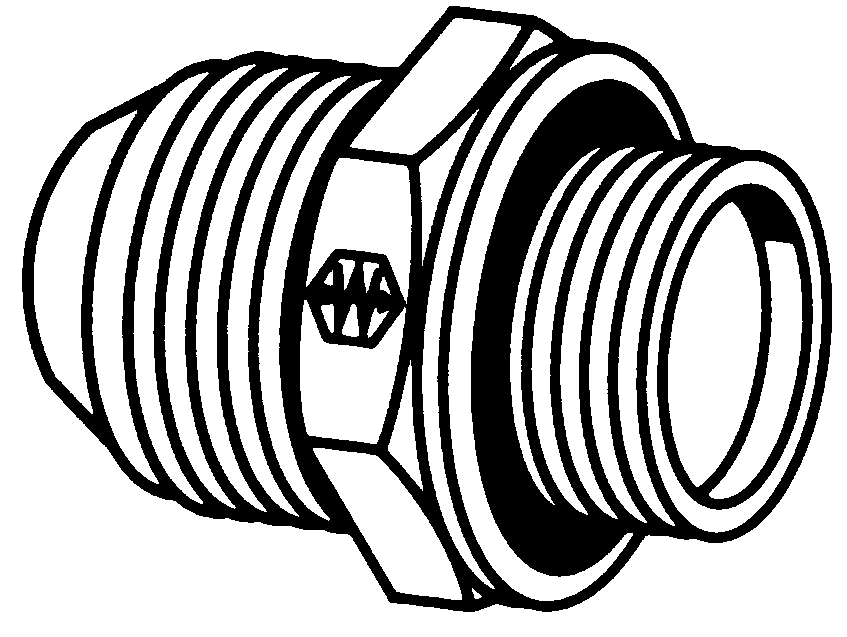

Danfoss (Weatherhead)

Steel - Metric Fittings

Typical Application: Pressure-Hydraulic Systems
Pressure: Up to 5,000 PSI Depending on Size
Sealing Method: Metal to Metal, 30˚ Cone-NPSM Thread on Swivel End.
Material: Carbon Steel, AISI/SAE 12L14.
Plating: Zinc, Yellow Dichromate Finish.
Label Set: FS-100 (Adhesive)

Part Number
TUBE O.D. THREAD
OKCancelClear All
MALE METRIC THREAD
OKCancelClear All

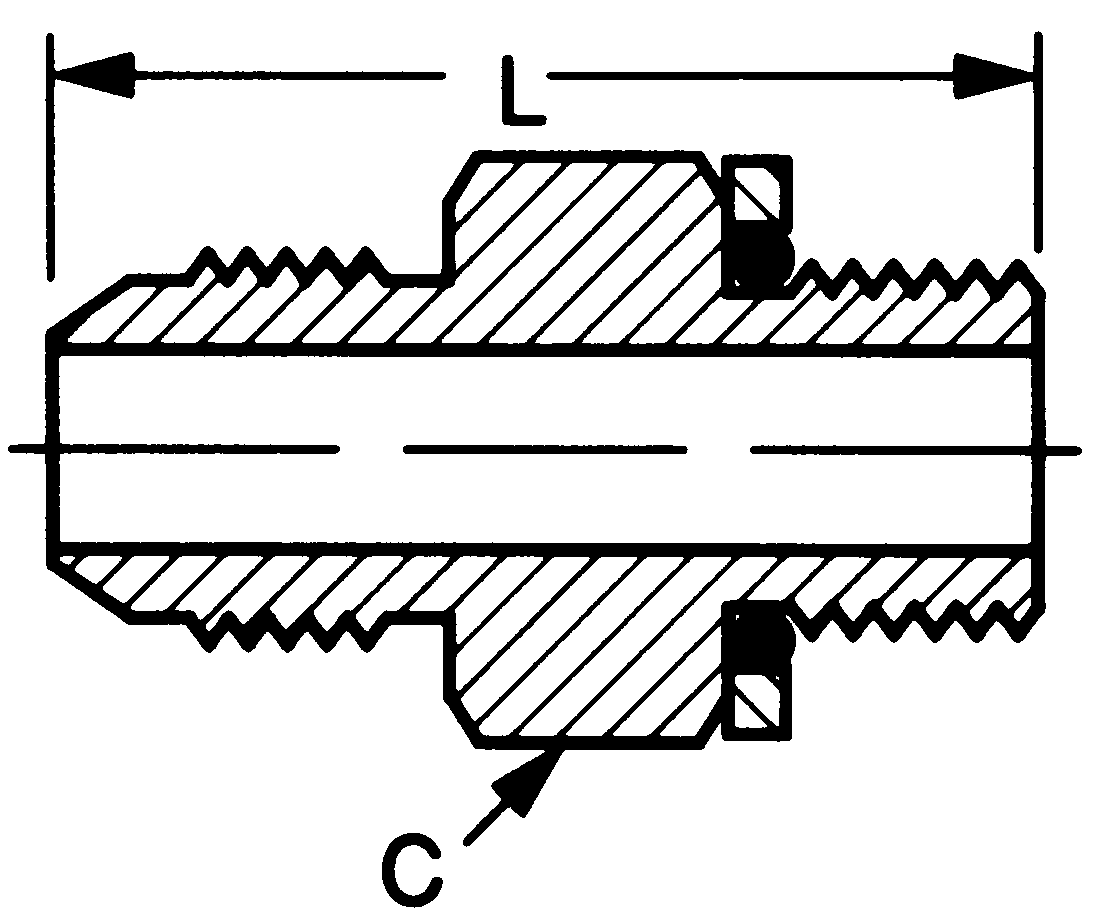

L
OKCancelClear All
HEX C
OKCancelClear All
MC5315X4X10
1/4
M10X1.0
1.18
5/8
MC5315X4X12
1/4
M12X1.5
1.22
5/8
MC5315X4X14
1/4
M14X1.5
1.22
3/4
MC5315X6X14
3/8
M14X1.5
1.22
3/4
MC5315X6X16
3/8
M16X1.5
1.32
7/8
MC5315X8X18
1/2
M18X1.5
1.48
15/16
MC5315X8X22
1/2
M22X1.5
1.61
1-1/16
MC5315X10X20
5/8
M20X1.5
1.71
1
MC5315X12X22
3/4
M22X1.5
1.81
1-1/8
MC5315X12X27
3/4
M27X2.0
1.95
1-1/4
MC5315X16X33
1
M33X2.0
2.03
1-5/8
MC5315X20X42
1-1/4
M42X2.0
2.19
2
