Danfoss (Weatherhead)

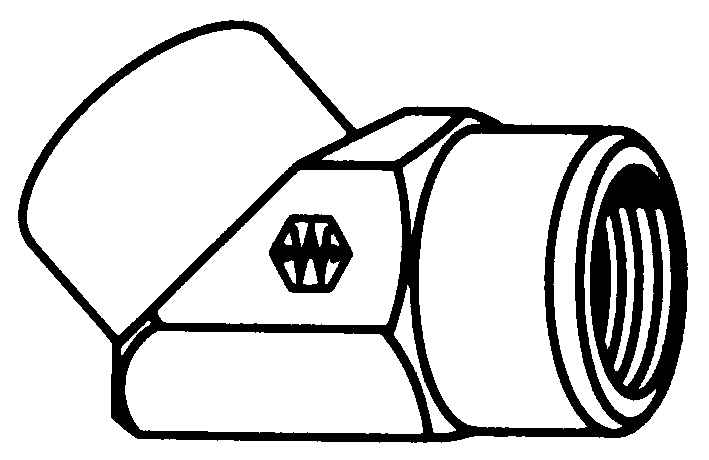

Steel Pipe 45° Elbow

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

Part Number
FEMALE PIPE THREAD
OKCancelClear All
D
OKCancelClear All
N
OKCancelClear All

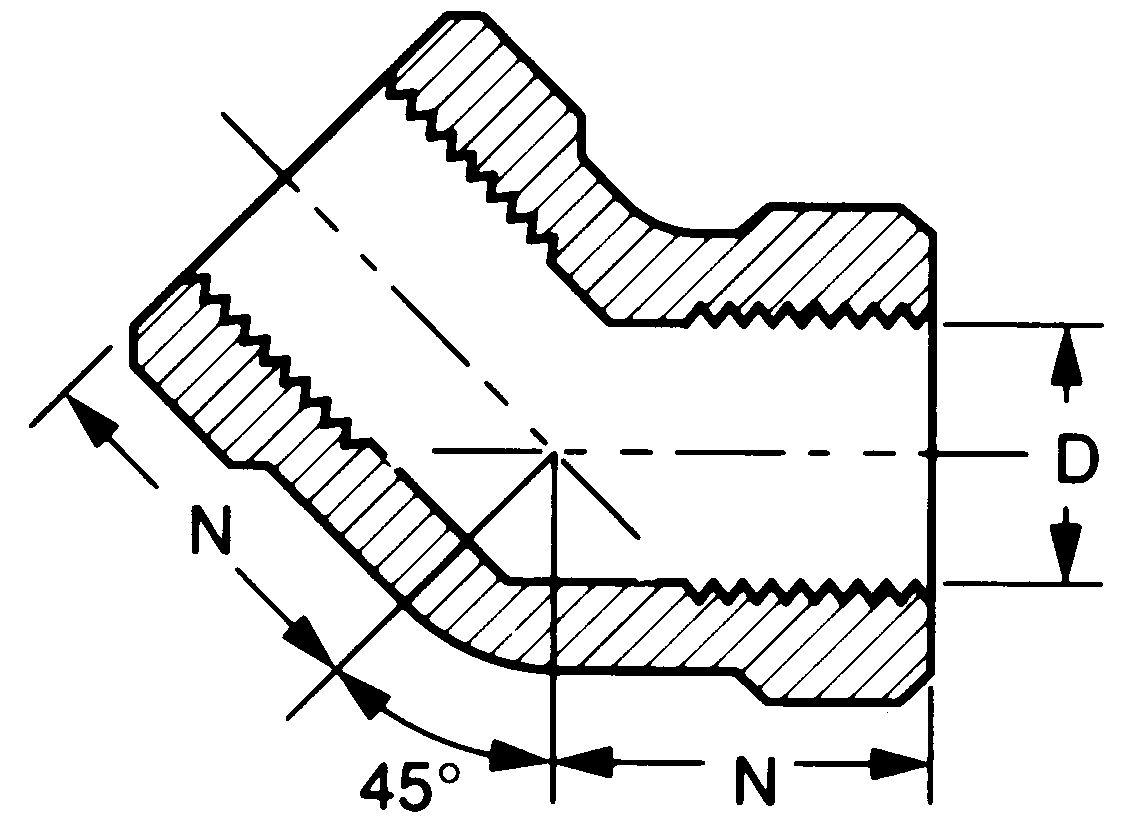

ACROSS FLATS
OKCancelClear All
C3559X6
3/8
.562
.750
7/8
C3559X8
1/2
.687
.940
1-1/16
C3559X12
3/4
.906
1.000
1-5/16
C3559X16
1
1.125
1.190
1-5/8
TF3559X4
1/4
.437
.620
3/4

(Ref. SAE No.140338)

Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
