Danfoss (Weatherhead)

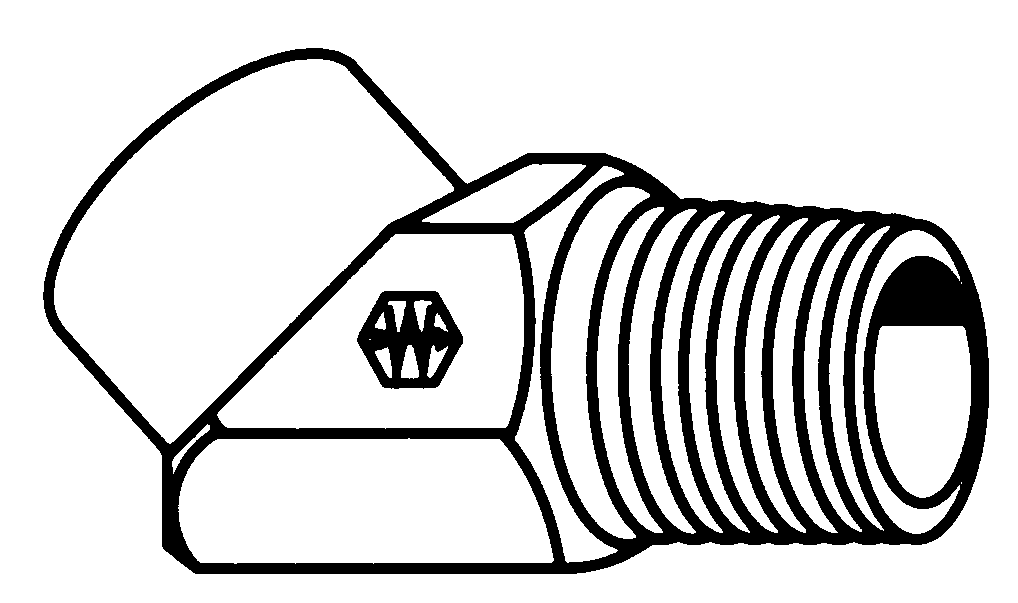

Steel Pipe 45° Street Elbow

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

Part Number
FEMALE PIPE THREAD
OKCancelClear All
MALE PIPE THREAD
OKCancelClear All
D
OKCancelClear All
N1
OKCancelClear All
N
OKCancelClear All
C3359X2
1/8
1/8
.332
.47
.72
C3359X4
1/4
1/4
.437
.62
1.05
C3359X6
3/8
3/8
.562
.72
1.06
C3359X8
1/2
1/2
.687
.91
1.34
C3359X12
3/4
3/4
.906
.97
1.38
C3359X16
1
1
1.125
1.12
1.72
TF3359X2
1/8
1/8
.332
.47
.72
TF3359X4
1/4
1/4
.437
.62
1.05
TF3359X6
3/8
3/8
.562
.72
1.06
TF3359X8
1/2
1/2
.687
.91
1.34
TF3359X12
3/4
3/4
.906
.97
1.38
TF3359X16
1
1
1.125
1.12
1.72
TF3359X20
1-1/4
1-1/4
1.468
1.62
1.80
TF3359X24
1-1/2
1-1/2
1.734
1.69
2.06
TF3359X32
2
2
2.188
2.19
2.15

Stainless Steel No. 3371X (Ref. SAE No.140339)

Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
