Danfoss (Weatherhead)

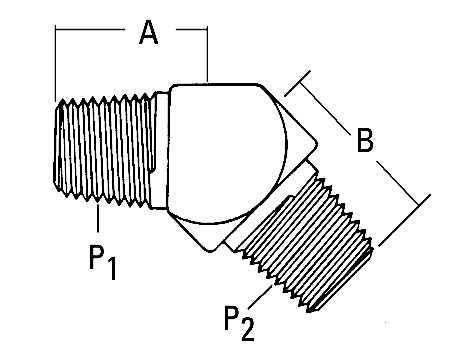

Steel Pipe 45° Union Elbow

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

Part Number
THREAD P1 (NPTF)
OKCancelClear All
THREAD P2 (NPTF)
OKCancelClear All
A INCHES
OKCancelClear All
B INCHES
OKCancelClear All
2247-4-4S
1/4-18
1/4-18
.86
.86
2247-6-6S
3/8-18
3/8-18
.95
.95
2247-8-8S
1/2-14
1/2-14
1.13
1.17
2247-12-12S
3/4-14
3/4-14
1.17
1.20
2247-16-16S
1-11-1/2
1-11-1/2
1.20
1.48

(Ref. SAE No.140337)

Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
