Danfoss (Weatherhead)

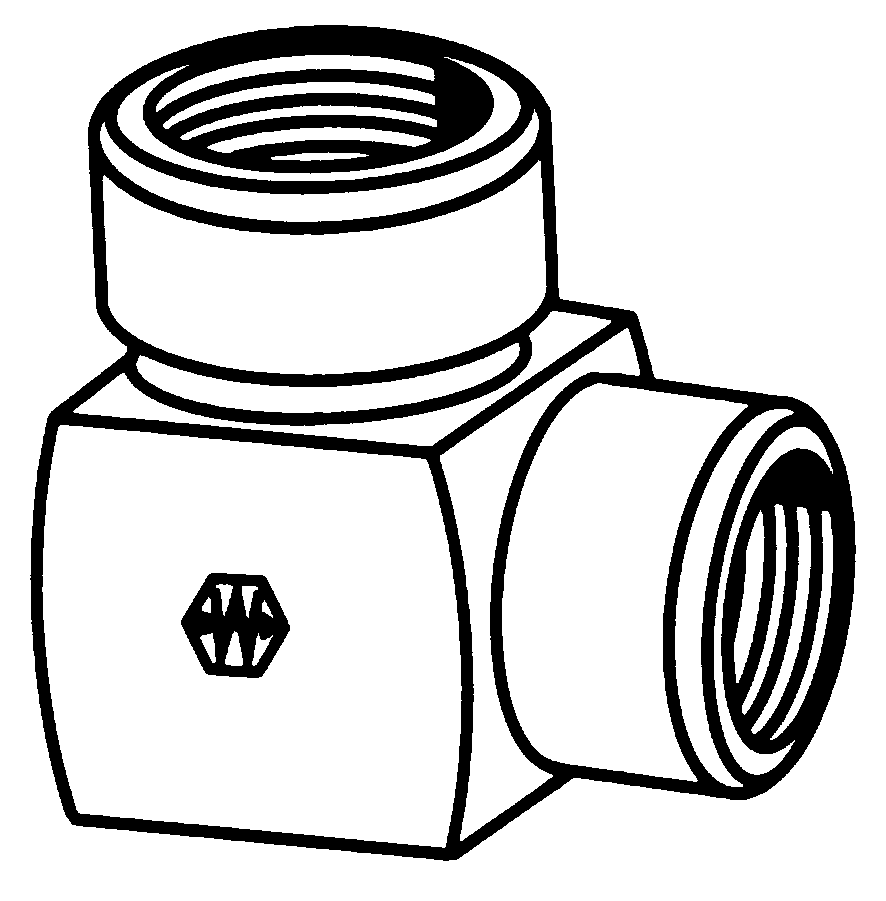

Steel Pipe 90° Elbow

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

Part Number
FEMALE PIPE THREAD
OKCancelClear All
FEMALE PIPE THREAD
OKCancelClear All
D
OKCancelClear All
N
OKCancelClear All
N1
OKCancelClear All
C3509X2
1/8
1/8
.332
.66
.66
C3509X4
1/4
1/4
.437
.88
.88
C3509X6
3/8
3/8
.562
1.02
1.02
C3509X8
1/2
1/2
.687
1.23
1.23
C3509X12
3/4
3/4
.906
1.36
1.36
C3509X16
1
1
1.125
1.62
1.62
C3509X20
1-1/4
1-1/4
1.468
1.70
1.70
C3509X32
2
2
2.188
2.39
2.39
TF3509X2
1/8
1/8
.332
.66
.66
TF3509X4X2
1/4
1/8
.343
.88
.72
TF3509X4
1/4
1/4
.437
.88
.72
TF3509X6X4
3/8
1/4
.437
1.02
.94
TF3509X6
3/8
3/8
.562
1.02
1.02
TF3509X8X6
1/2
3/8
.562
1.23
1.14
TF3509X8
1/2
1/2
.687
1.23
1.23
TF3509X12X8
3/4
1/2
.687
1.23
1.23
TF3509X12
3/4
3/4
.906
1.36
1.36
TF3509X16
1
1
1.125
1.62
1.62
TF3509X20
1-1/4
1-1/4
1.468
1.70
1.70
TF3509X24
1-1/2
1-1/2
1.734
2.08
2.08

Stainless Steel No. 3521X (Ref. SAE No.140238)

Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
