Danfoss (Weatherhead)

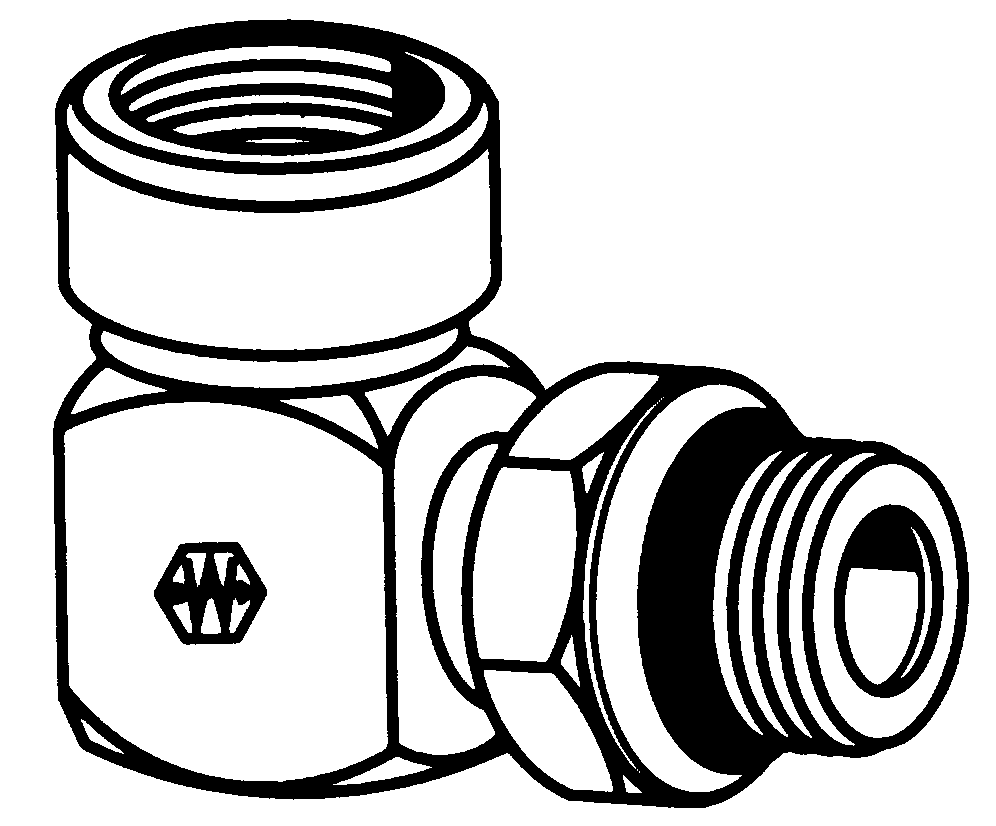

Steel Pipe 90° Straight Thread O-Ring Male Elbow

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

Part Number
MALE PORT SIZE
OKCancelClear All
FEMALE PIPE THREAD
OKCancelClear All

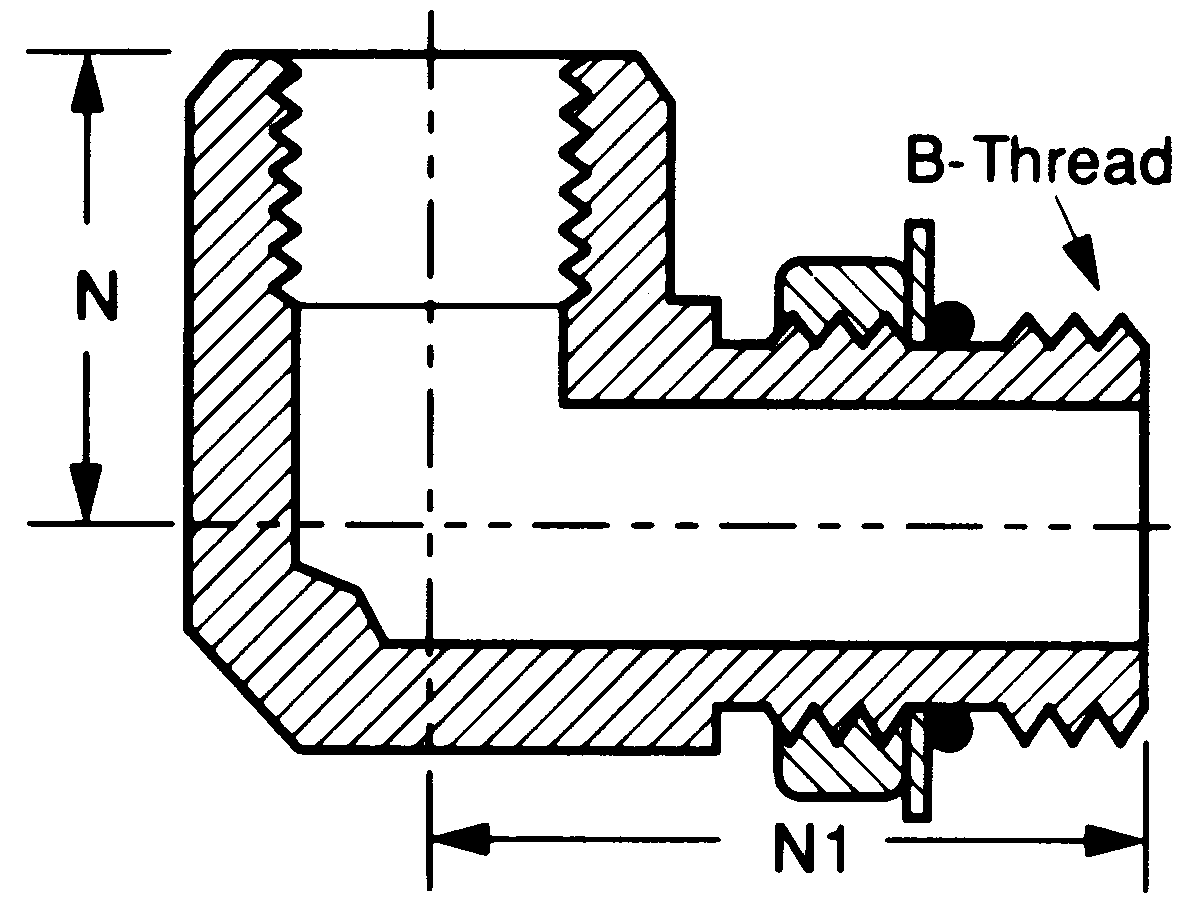

STRAIGHT THREAD B
OKCancelClear All
N
OKCancelClear All
N1
OKCancelClear All
C3459X8
1/2
3/8
3/4–16
.63
1.47
C3459X10
5/8
1/8
7/8–14
.75
1.81
C3459X12
3/4
3/4
1-1/16–12
.81
2.00
C3459X16
1
1
1-5/16–12
1.00
2.25
TF3459X4
1/4
1/8
7/16–20
.66
1.09
TF3459X5
5/16
1/8
1/2–20
.66
1.13
TF3459X6
3/8
1/4
9/16–18
.88
1.31
TF3459X8
1/2
3/8
3/4–16
1.02
1.49
TF3459X10
5/8
1/2
7/8–14
1.23
1.80
TF3459X12
3/4
3/4
1-1/16–12
1.36
2.06
TF3459X14
7/8
3/4
1-3/16–12
1.42
2.06
TF3459X16
1
1
1-5/16–12
1.62
2.17
TF3459X20
1-1/4
1-1/4
1-5/8–12
1.70
2.38
TF3459X24
1-1/2
1-1/2
1-7/8–12
2.08
2.58
TF3459X32
2
2
2-1/2–12
2.39
3.02
Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
