Danfoss (Weatherhead)

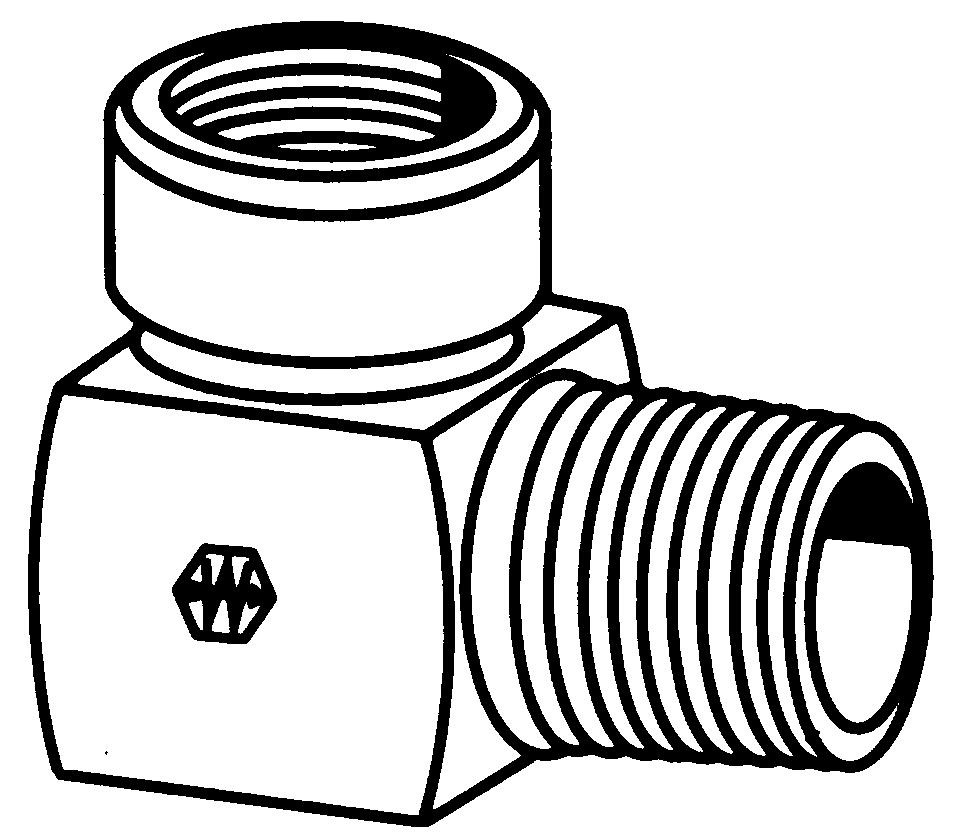

Steel Pipe 90° Street Elbow

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

Part Number
MALE PIPE THREAD
OKCancelClear All
FEMALE PIPE THREAD
OKCancelClear All
D1
OKCancelClear All
N
OKCancelClear All
N1
OKCancelClear All
C3409X2
1/8
1/8
.188
.78
.66
C3409X4
1/4
1/4
.281
1.09
.88
C3409X6
3/8
3/8
.406
1.22
1.02
C3409X8
1/2
1/2
.531
1.47
1.23
C3409X12
3/4
3/4
.719
1.59
1.36
C3409X16
1
1
.938
1.97
1.62
C3409X20
1-1/4
1-1/4
1.250
2.38
1.70
TF3409X2
1/8
1/8
.188
.78
.66
TF3409X2X4
1/8
1/4
.188
.91
.88
TF3409X4X2
1/4
1/8
.281
1.09
.67
TF3409X4
1/4
1/4
.281
1.09
.88
TF3409X4X6
1/4
3/8
.281
1.22
1.02
TF3409X6X4
3/8
1/4
.406
1.22
.91
TF3409X6
3/8
3/8
.406
1.22
1.02
TF3409X6X8
3/8
1/2
.406
1.38
1.23
TF3409X8X4
1/2
1/4
.281
1.47
.96
TF3409X8X6
1/2
3/8
.531
1.47
1.05
TF3409X8
1/2
1/2
.531
1.47
1.23
TF3409X8X12
1/2
3/4
.531
1.59
1.23
TF3409X12X6
3/4
3/8
.406
1.59
1.12
TF3409X12X8
3/4
1/2
.719
1.59
1.23
TF3409X12
3/4
3/4
.719
1.59
1.36
TF3409X12X16
3/4
1
.531
1.71
1.63
TF3409X16X12
1
3/4
.719
1.84
1.37
TF3409X16
1
1
.938
1.97
1.62
TF3409X20X16
1-1/4
1
.938
2.38
1.68
TF3409X20
1-1/4
1-1/4
1.25
2.38
1.70
TF3409X20X24
1-1/4
1-1/2
1.25
2.50
2
TF3409X24
1-1/2
1-1/2
1.50
2.64
2.08
TF3409X32
2
2
1.94
3
2.39

Stainless Steel No. 3421X (Ref. SAE No.140239)

Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
