Danfoss (Weatherhead)

Steel Pipe Adapter

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

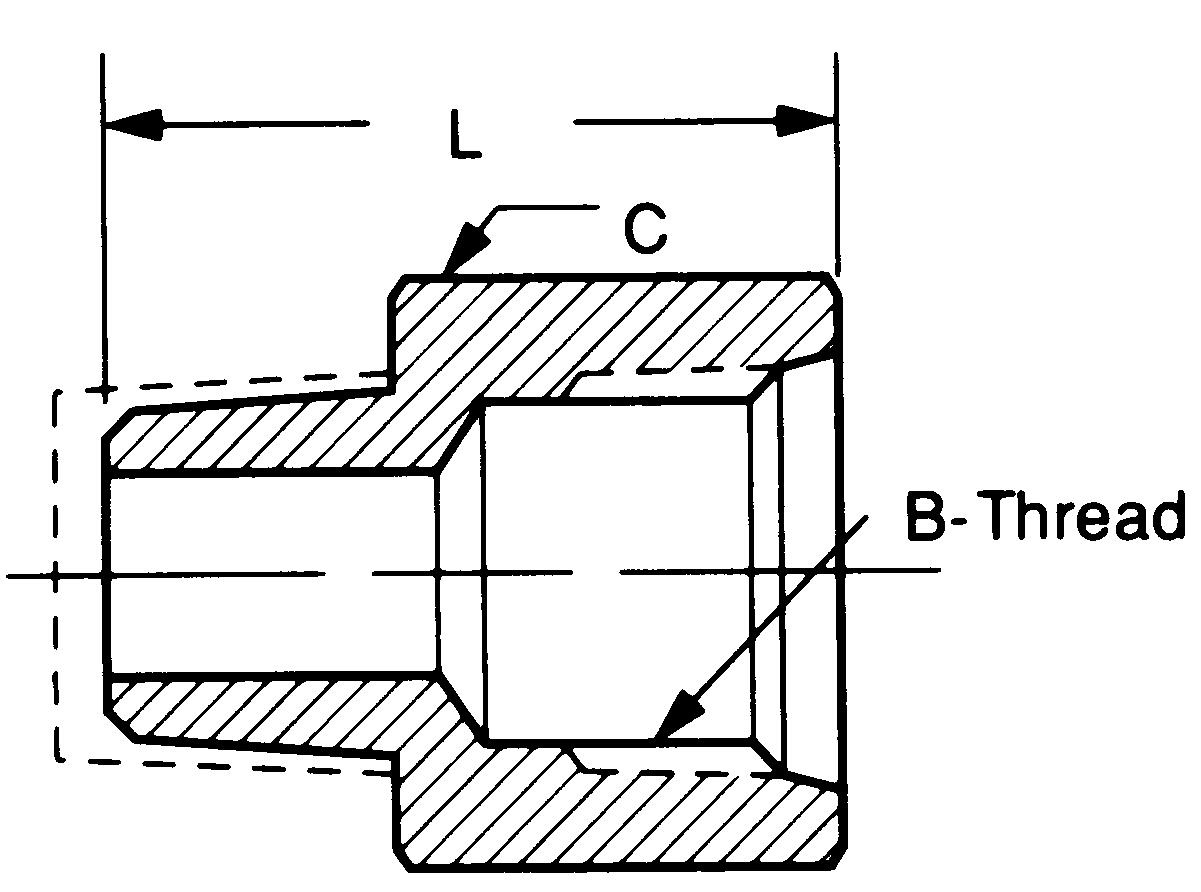

Part Number
FEMALE PIPE THREAD
OKCancelClear All
MALE PIPE THREAD
OKCancelClear All
HEX C
OKCancelClear All
L
OKCancelClear All
C3209X2
1/8
1/8
5/8
1.04
C3209X4X2
1/4
1/8
3/4
1.21
C3209X6X2
3/8
1/8
7/8
1.34
C3209X8X2
1/2
1/8
1-1/8
1.50
C3209X2X4
1/8
1/4
5/8
1.22
C3209X4
1/4
1/4
3/4
1.39
C3209X6X4
3/8
1/4
7/8
1.44
C3209X8X4
1/2
1/4
1-1/8
1.68
C3209X12X4
3/4
1/4
1-3/8
1.78
C3209X2X6
1/8
3/8
5/8
1.425
C3209X4X6
1/4
3/8
3/4
1.44
C3209X6
3/8
3/8
7/8
1.437
C3209X8X6
1/2
3/8
1-1/8
1.68
C3209X12X6
3/4
3/8
1-3/8
1.74
C3209X8
1/2
1/2
1-1/8
1.87
C3209X12X8
3/4
1/2
1-3/8
1.93
C3209X16X8
1
1/2
1-5/8
2.09
C3209X4X12
1/4
3/4
1
1.825
C3209X6X12
3/8
3/4
1
1.627
C3209X8X12
1/2
3/4
1-1/8
1.93
C3209X12
3/4
3/4
1-3/8
1.93
C3209X16X12
1
3/4
1-5/8
2.18
C3209X20X12
1-1/4
3/4
2
2.27
C3209X8X16
1/2
1
1-1/8
2.06
C3209X12X16
3/4
1
1-3/8
2.12
C3209X16
1
1
1-5/8
2.37
C3209X20X16
1-1/4
1
2
2.46
C3209X24X16
1-1/2
1
2-3/8
2.47
C3209X16X20
1
1-1/4
1-3/4
2.52
C3209X20
1-1/4
1-1/4
2
2.49
C3209X24X20
1-1/2
1-1/4
2-3/8
2.50
C3209X32X20
2
1-1/4
2-7/8
2.59
C3209X20X24
1-1/4
1-1/2
2
2.20
C3209X24
1-1/2
1-1/2
2-3/8
2.53
C3209X32X24
2
1-1/2
2-7/8
2.62
C3209X32
2
2
2-7/8
2.62

Stainless Steel No. 3221X (Ref. SAE No.140139)

Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
