Danfoss (Weatherhead)

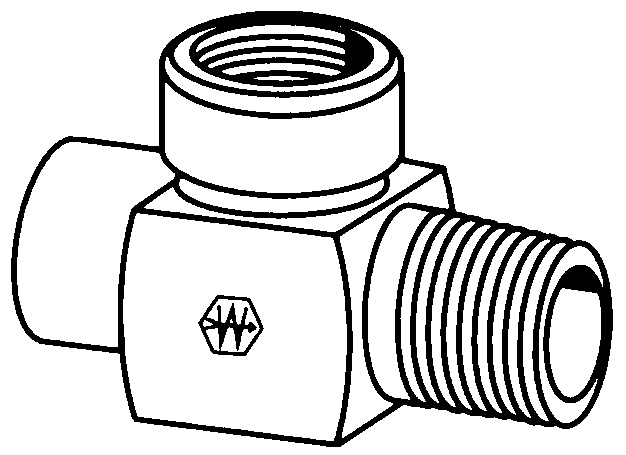

Steel Pipe Male Run Tee

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

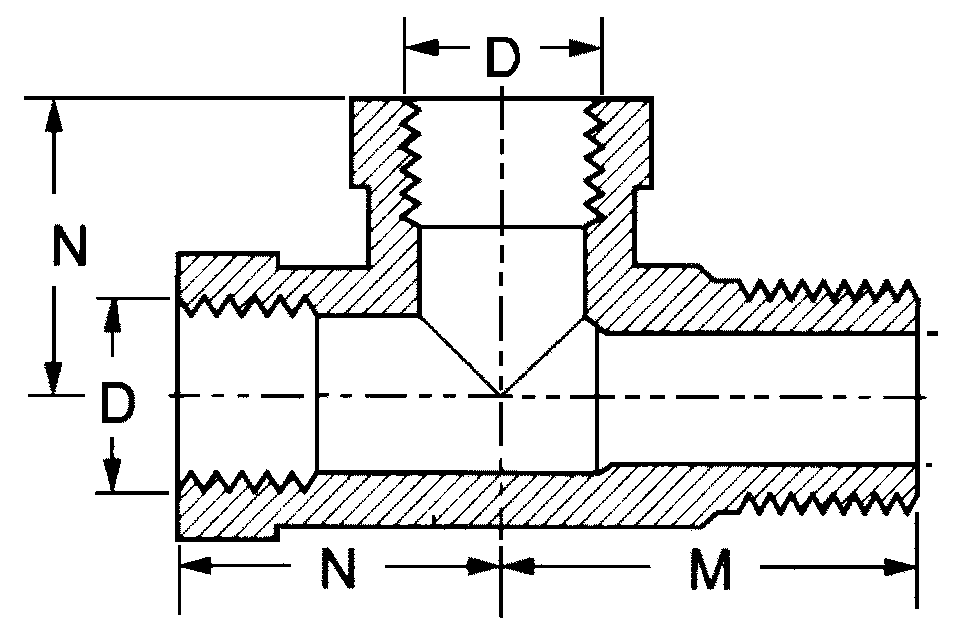

Part Number
MALE PIPE THREAD
OKCancelClear All
FEMALE PIPE THREAD
OKCancelClear All
D
OKCancelClear All
M
OKCancelClear All
N
OKCancelClear All
C3759X2
1/8
1/8
.332
.78
.66
C3759X4
1/4
1/4
.437
1.09
.88
C3759X6
3/8
3/8
.562
1.22
1.02
C3759X8
1/2
1/2
.687
1.47
1.23
C3759X12
3/4
3/4
.906
1.59
1.36
C3759X16
1
1
1.125
1.97
1.62
TF3759X2
1/8
1/8
.343
.78
.66
TF3759X4
1/4
1/4
.437
1.09
.88
TF3759X6
3/8
3/8
.562
1.22
1.02
TF3759X8
1/2
1/2
.687
1.47
1.23
TF3759X12
3/4
3/4
.906
1.59
1.36
TF3759X16
1
1
1.125
1.97
1.62
TF3759X20
1-1/4
1-1/4
1.468
2.38
1.70
TF3759X24
1-1/2
1-1/2
1.710
2.64
2.08
TF3759X32
2
2
2.180
3.00
2.39

Stainless Steel No. 3771X (Ref. SAE No. 140424)

Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
