Danfoss (Weatherhead)

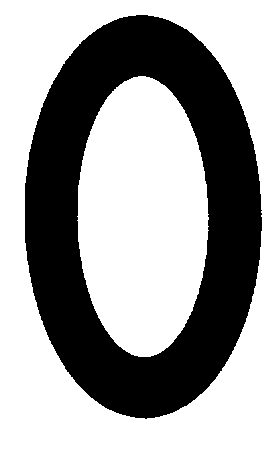

Steel Pipe O-Ring

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

Part Number
TUBE O.D.
OKCancelClear All

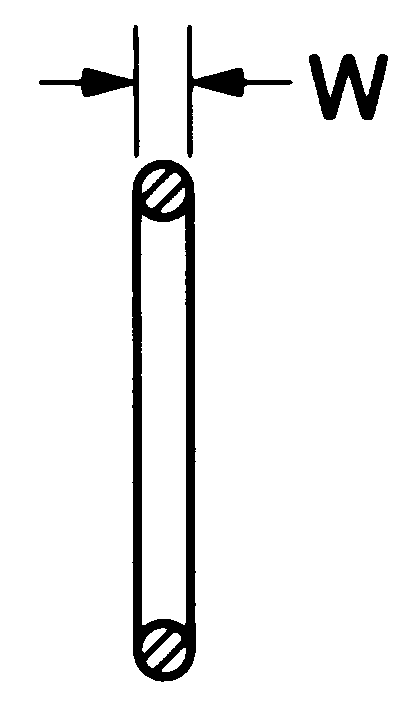

W
OKCancelClear All

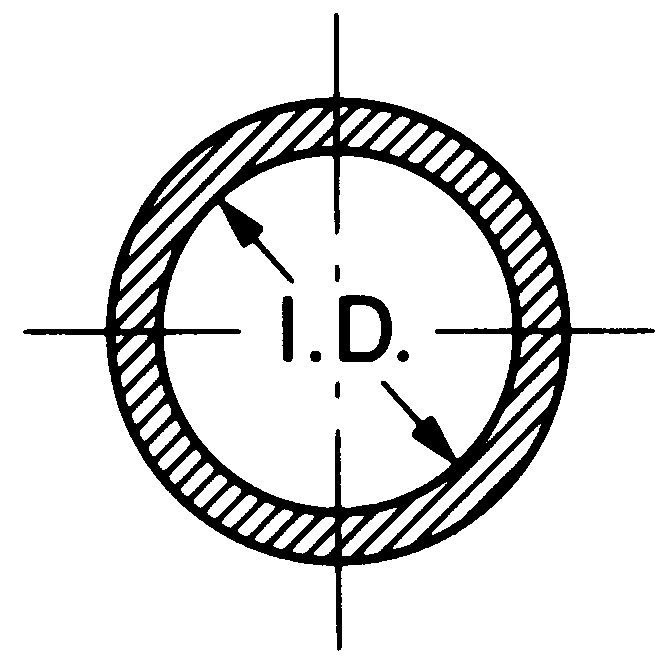

I.D.
OKCancelClear All
7629X1
1/16
.058 ± .003
.185 ± .005
7629X2
1/8
.064 ± .003
.239 ± .005
7629X3
3/16
.064 ± .003
.301 ± .005
7629X4
1/4
.072 ± .003
.351 ± .005
7629X5
5/16
.072 ± .003
.414 ± .005
7629X6
3/8
.078 ± .003
.468 ± .005
7629X7
7/16
.082 ± .003
.530 ± .005
7629X8
1/2
.087 ± .003
.644 ± .005
7629X10
5/8
.097 ± .003
.755 ± .005
7629X12
3/4
.116 ± .004
.924 ± .006
7629X14
7/8
.116 ± .004
1.048 ± .006
7629X16
1
.116 ± .004
1.171 ± .006
7629X20
1-1/4
.118 ± .004
1.475 ± .010
7629X24
1-1/2
.118 ± .004
1.720 ± .010
7629X32
2
.118 ± .004
2.337 ± .010

Material: Buna-N, 90 Durometer Temperature Range: –40°F to +250°F (–40°C +121°C) Standard O-ring complies with SAE specification SAE J515 Type1.

Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
