Danfoss (Weatherhead)

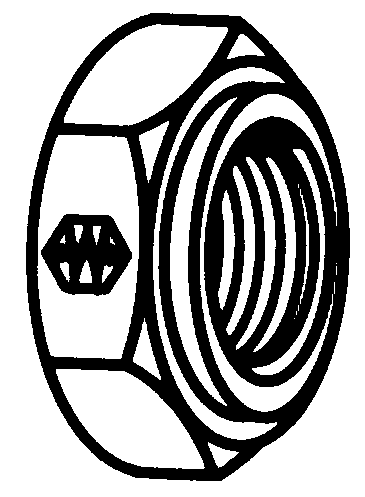

Steel Pipe Seal-Nut for Male Pipe Threads

Material: All Danfoss “Seal-Nuts” are precision machined from 12L14 steel; insert is made of molded virgin Teflon®.
Pressure: Up to 3000 psi operating pressure.
Temperature Range: Designed to operate satisfactorily from -100°F to +500°F.
Makes every pipe connection leakproof. Permits positioning of pipe elbows and tees full 360° without overtightening Thread seal-nut on pipe thread. Tighten pipe elbows and tees to proper position, then tighten seal nut for positive seal. • Eliminates leaks on all pipe threads — Dry Seal or standard. No pipe compound required. Quick, easy installations in cramped quarters where wrench clearance is limited. • “Seal-Nuts” are an economical substitute for straight thread O-ring boss fittings using original female pipe ports. “Seal-Nuts” give you positive seal on directional fittings like tees and elbows without distorting mounting bosses or damaging expensive valves and pumps.

Part Number
PIPE THREAD
OKCancelClear All
HEX C
OKCancelClear All
L
OKCancelClear All
C3059X2
1/8
5/8
.15
C3059X4
1/4
3/4
.25
C3059X6
3/8
7/8
.25
C3059X8
1/2
1-1/8
.25
C3059X12
3/4
1-5/16
.25
C3059X16
1
1-5/8
.34
 Assembly Instructions: 1. Thread Seal-Nut on to the pipe threads until 4 threads protrude beyond the teflon seal. 2. Thread fitting a minimum of 3 full threads into port. Continue turning fitting to desired position. 3. Tighten seal-nut against the port with light to medium torque to provide a positive seal. Torque required will vary with application.
