Danfoss (Weatherhead)

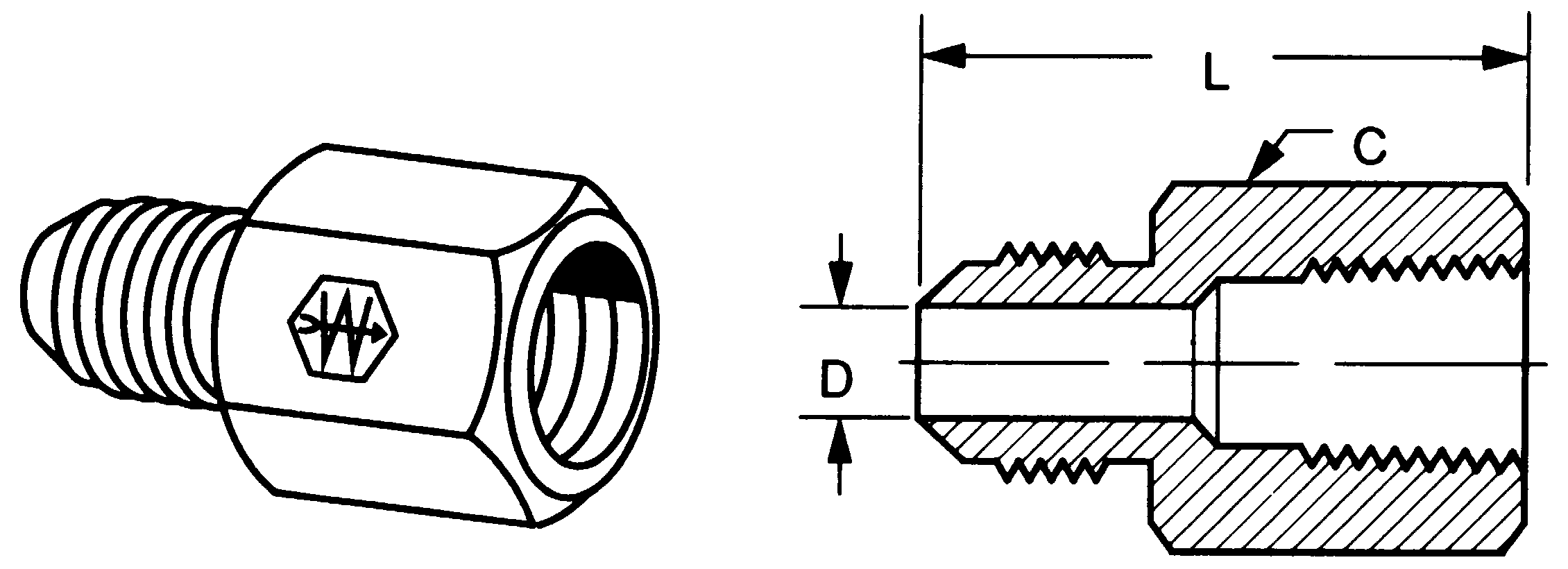

Steel SAE 37°JIC Female Connector

Typical Application: Grease, instrumentation and most hydraulic systems.
Pressure: Refer to the pressure charts above. The maximum working pressure of an adapter is the lower working pressure of the end size. Ex: C3069x8x6, 8 = 4000 psi and 6 = 5000 psi. Maximum working pressure is 4000 psi.
Vibration: Fair resistance.
Temperature Range: –65°F to +400°F.
Material: Carbon Steel – AISI/SAE 12L14, Stainless Steel – type 316 Plating – Zinc, yellow dichromate finish ASTM B633 Type II.
Used With: Brass, bronze and iron pipe.
Advantages:
Dryseal pipe threads (NPTF) (SAE J476), zinc
plate, compact size. Broad range of sizes and styles.

Part Number
TUBE O.D.
OKCancelClear All
FEM. PIPE THREAD
OKCancelClear All
HEX C
OKCancelClear All
D
OKCancelClear All
L
OKCancelClear All
C5255X2
1/8
1/8
9/16
.062
1.12
C5255X3
3/16
1/8
9/16
.125
1.13
C5255X4
1/4
1/8
9/16
.172
1.19
C5255X4X4
1/4
1/4
3/4
.172
1.39
C5255X5
5/16
1/8
9/16
.234
1.17
C5255X5X4
5/16
1/4
3/4
.234
1.39
C5255X6
3/8
1/4
3/4
.297
1.40
C5255X6X6
3/8
3/8
7/8
.297
1.46
C5255X8
1/2
3/8
7/8
.391
1.56
C5255X8X8
1/2
1/2
1-1/8
.391
1.79
C5255X10X6
5/8
3/8
7/8
.484
1.89
C5255X10
5/8
1/2
1-1/8
.484
1.89
C5255X12X8
3/4
1/2
1-1/8
.609
2.05
C5255X12
3/4
3/4
1-3/8
.609
2.06
C5255X16
1
1
1-5/8
.844
2.35
C5255X20
1-1/4
1-1/4
2
1.078
2.49
C5255X24
1-1/2
1-1/2
2-3/8
1.312
2.62
C5255X32
2
2
2-7/8
1.781
2.97

Stainless Steel No. 5267X (Ref. SAE No. 070103) (Ref. MS51503)

Assembly Instructions 1. Tighten approximately 2-1/2 turns past hand tight. 2. Welding procedure: Use electric weldrod AWS-E7018. Recommended procedure specifies using lower amperage than usual and puddling of molten metal to permit gasses created by lead in steel to work through molten lead deposit. Label Set: FS-2000 (adhesive).
